SKU - RIUAR-244-1.6T

Features:

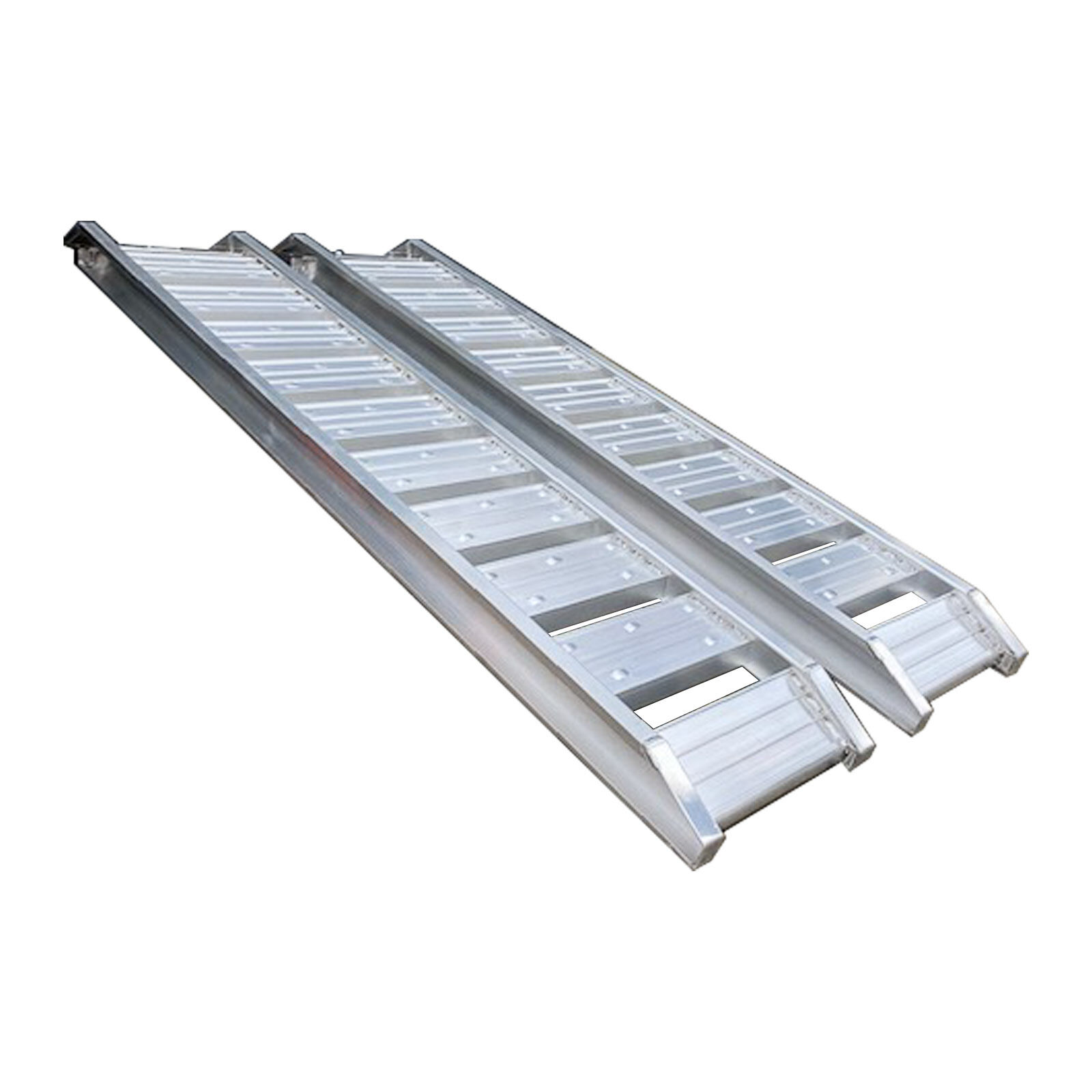

These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

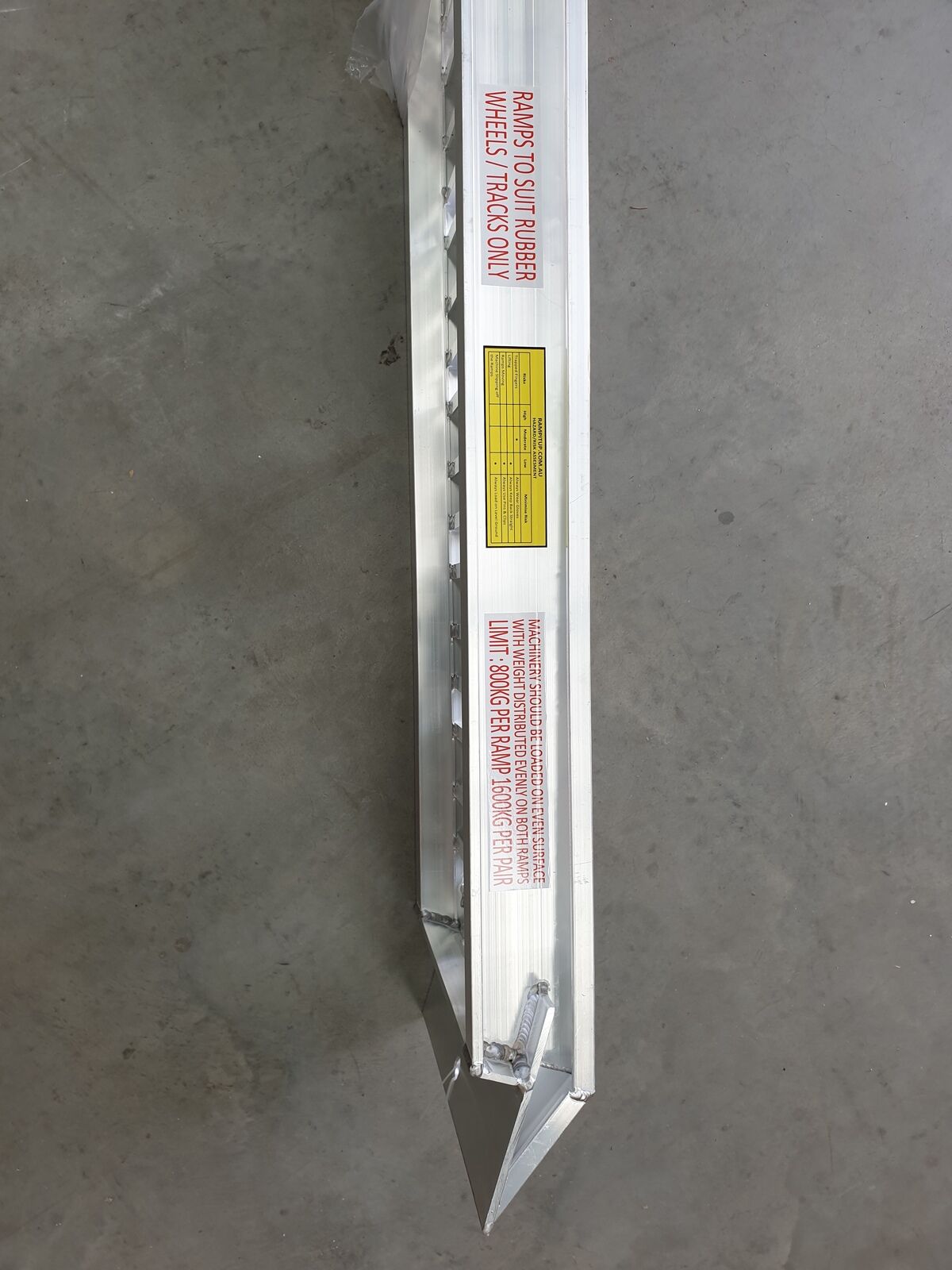

These ramps are suited to rubber tracked wheeled machines

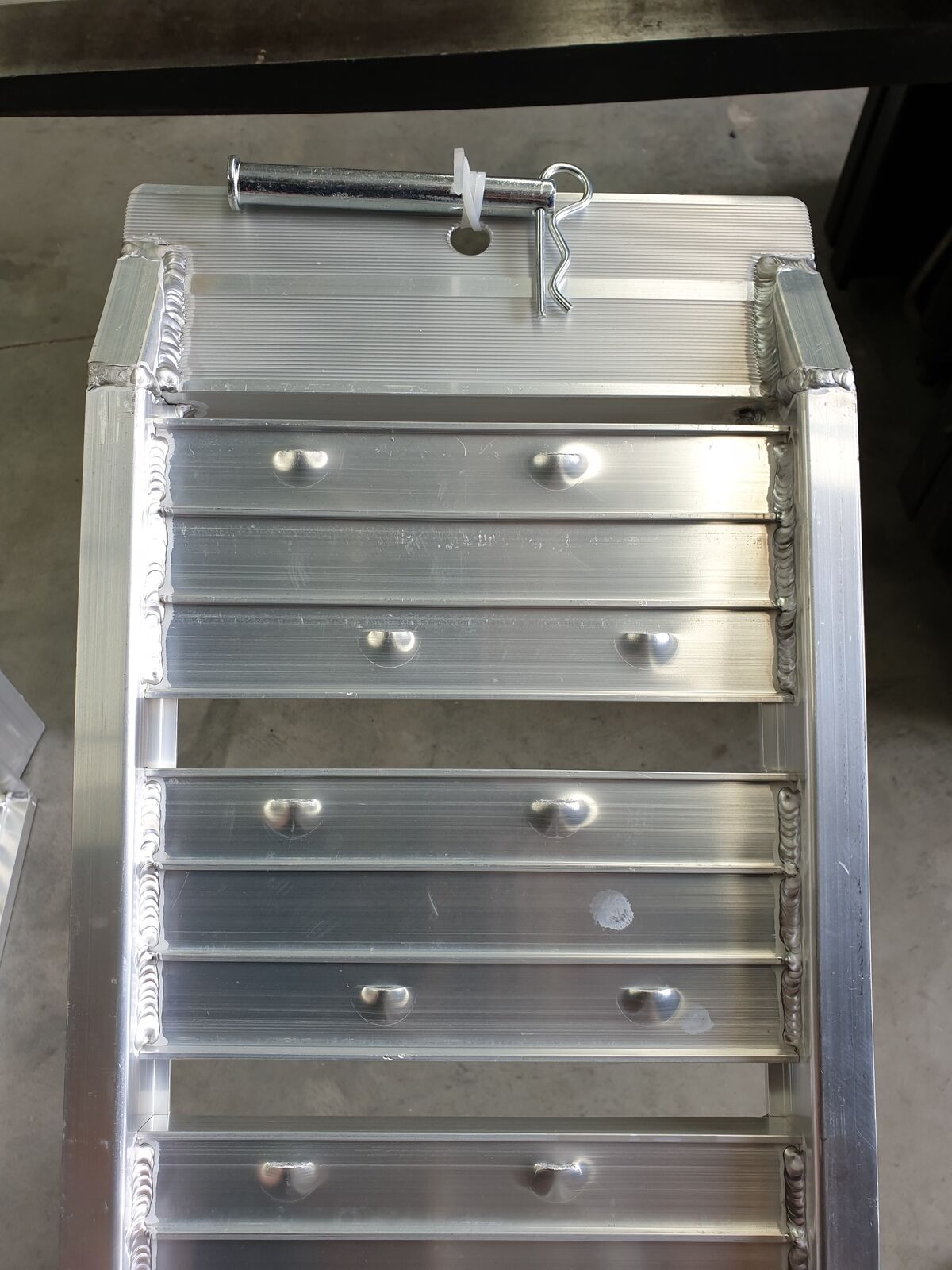

The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 2440
Inner Width (mm) :300
Outer Width (mm) :370
Height of Ramp Profile (mm):88
Max Load Height (mm): 720
Weight per Ramp (Kg): 16.5
Load Capacity per pair (Kg):1600





SKURIUAR-244-1.6T
BrandRamptec
Length2.44M
Tonne1.6T
Shipping Weight35.0000kg
Shipping Width0.370m
Shipping Height0.180m
Shipping Length2.440m
Shipping Cubic0.162504000m3
