SKU - HDR.183.380.1.8

Features:

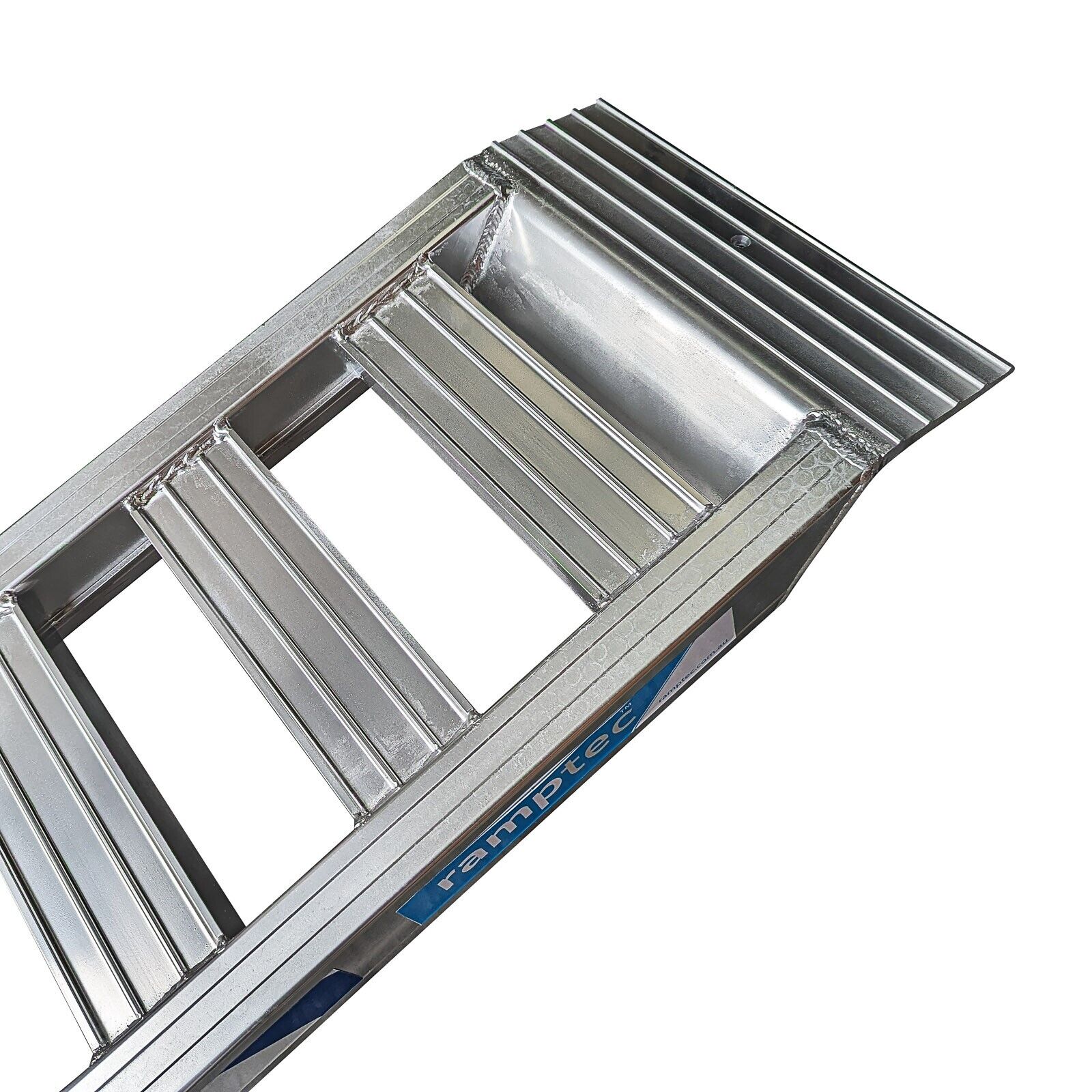

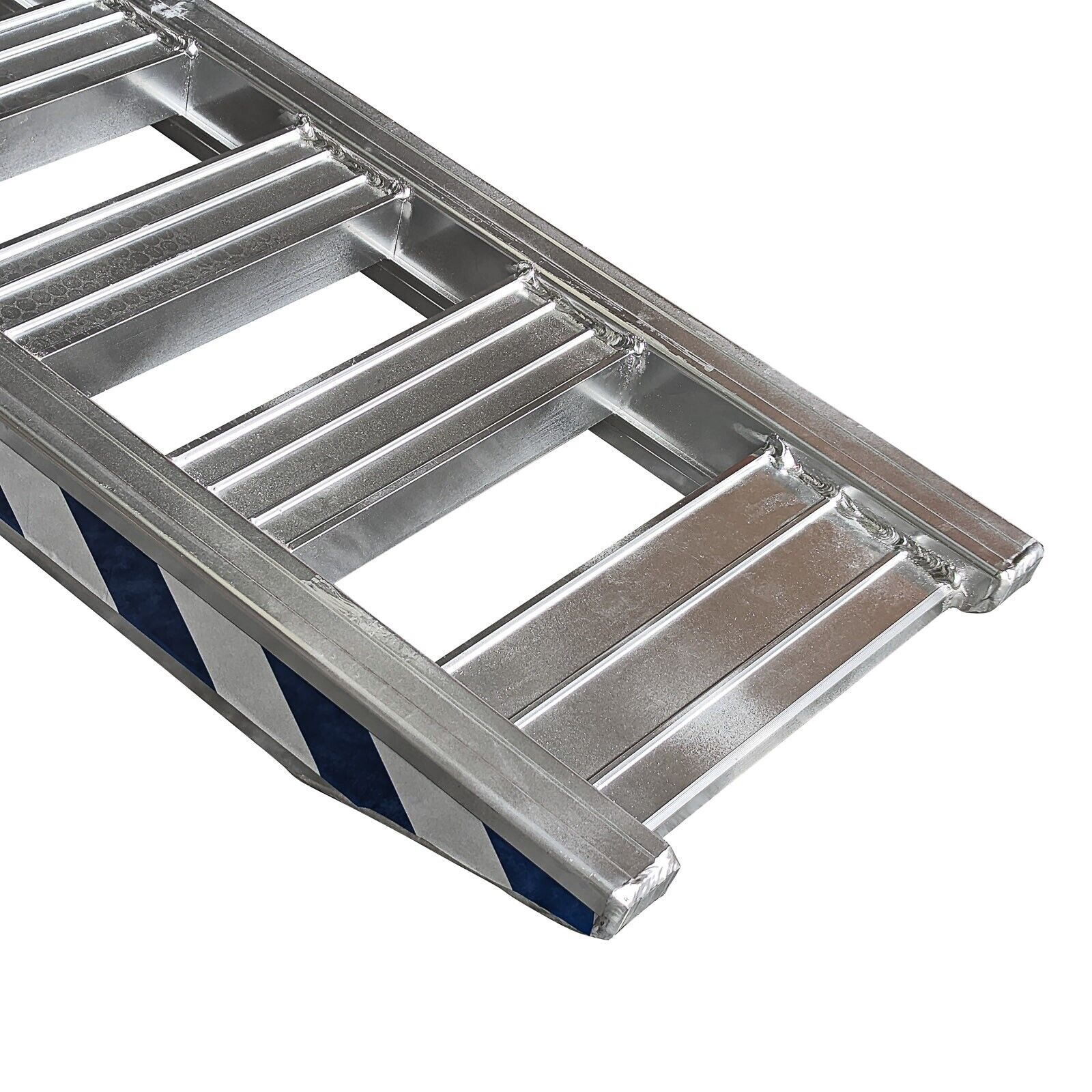

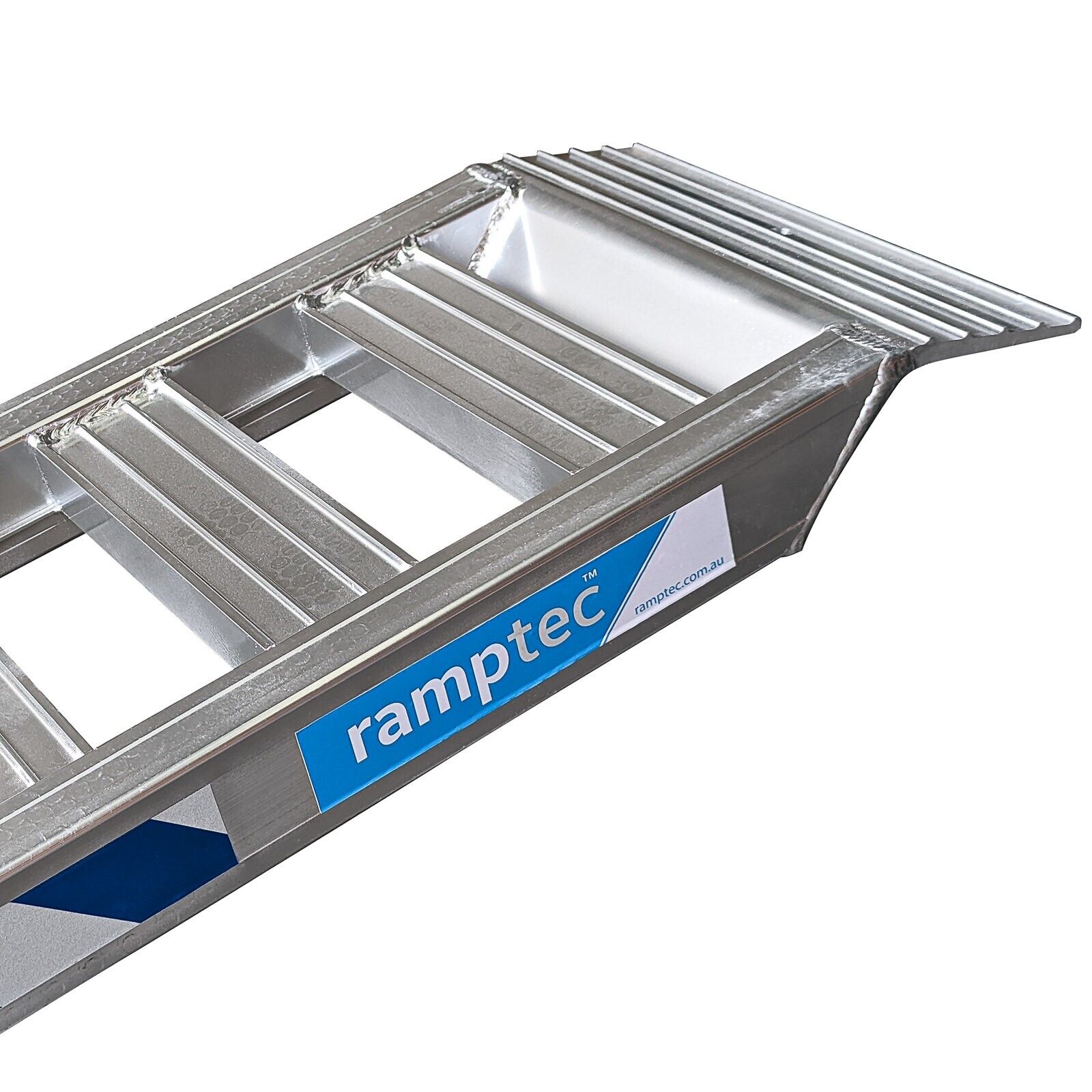

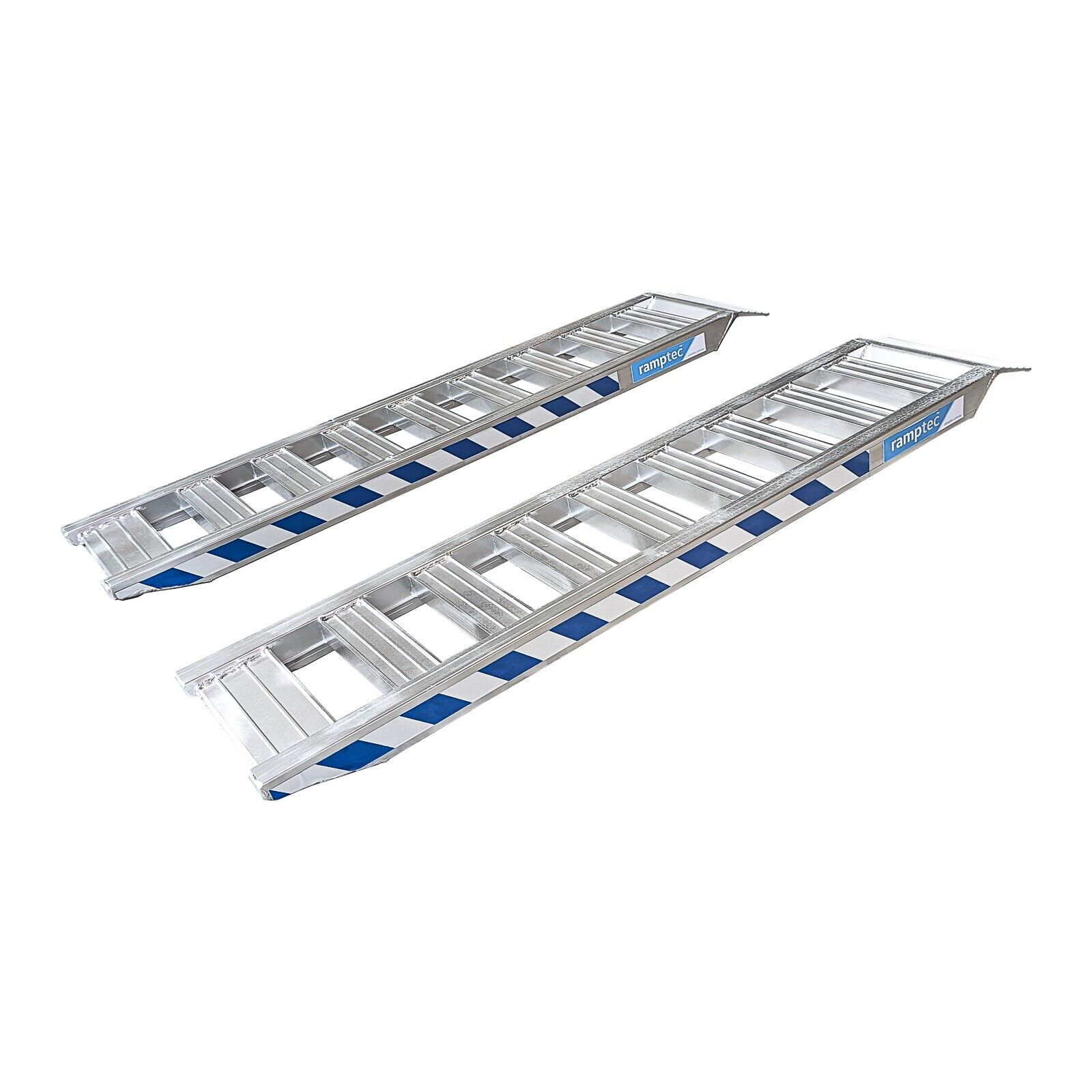

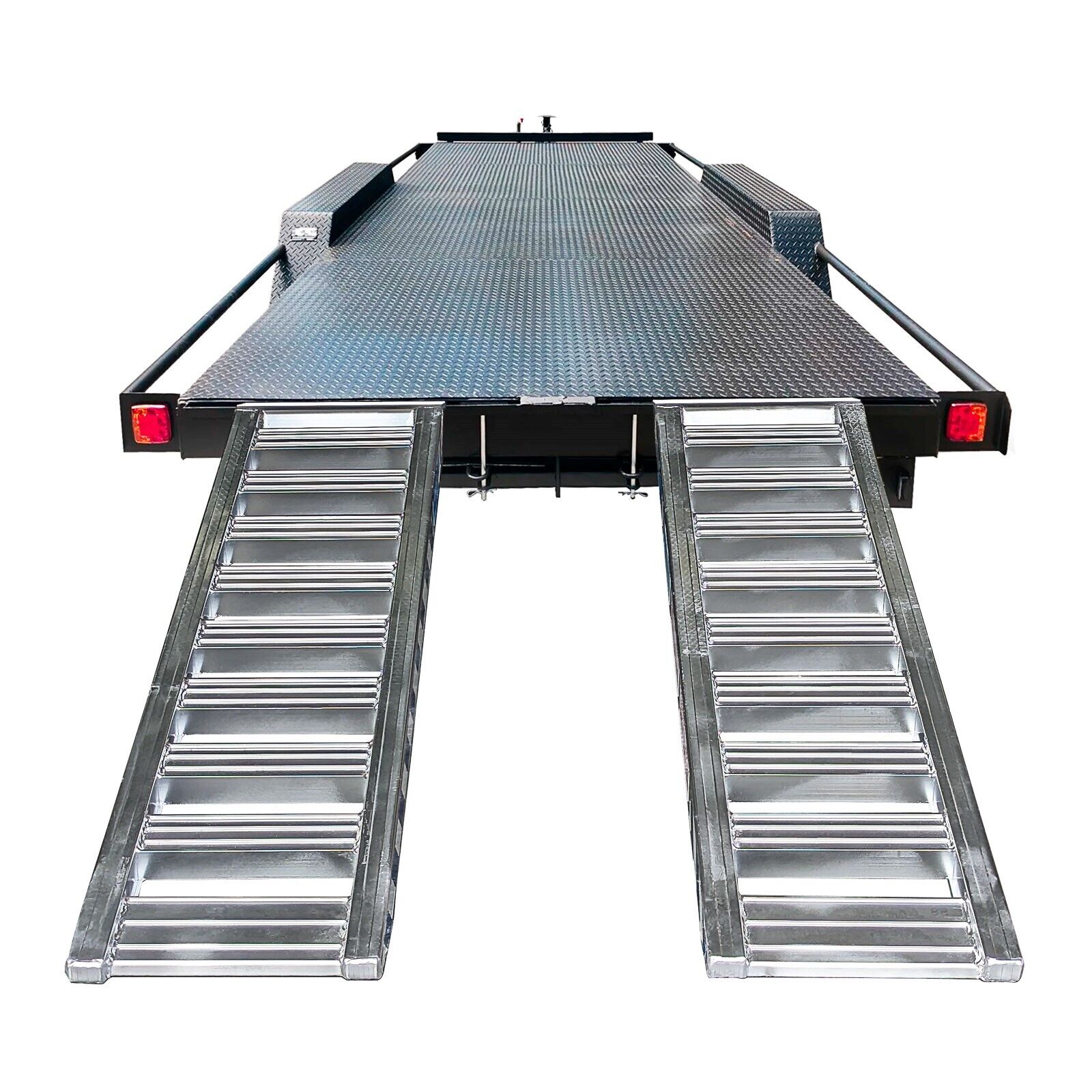

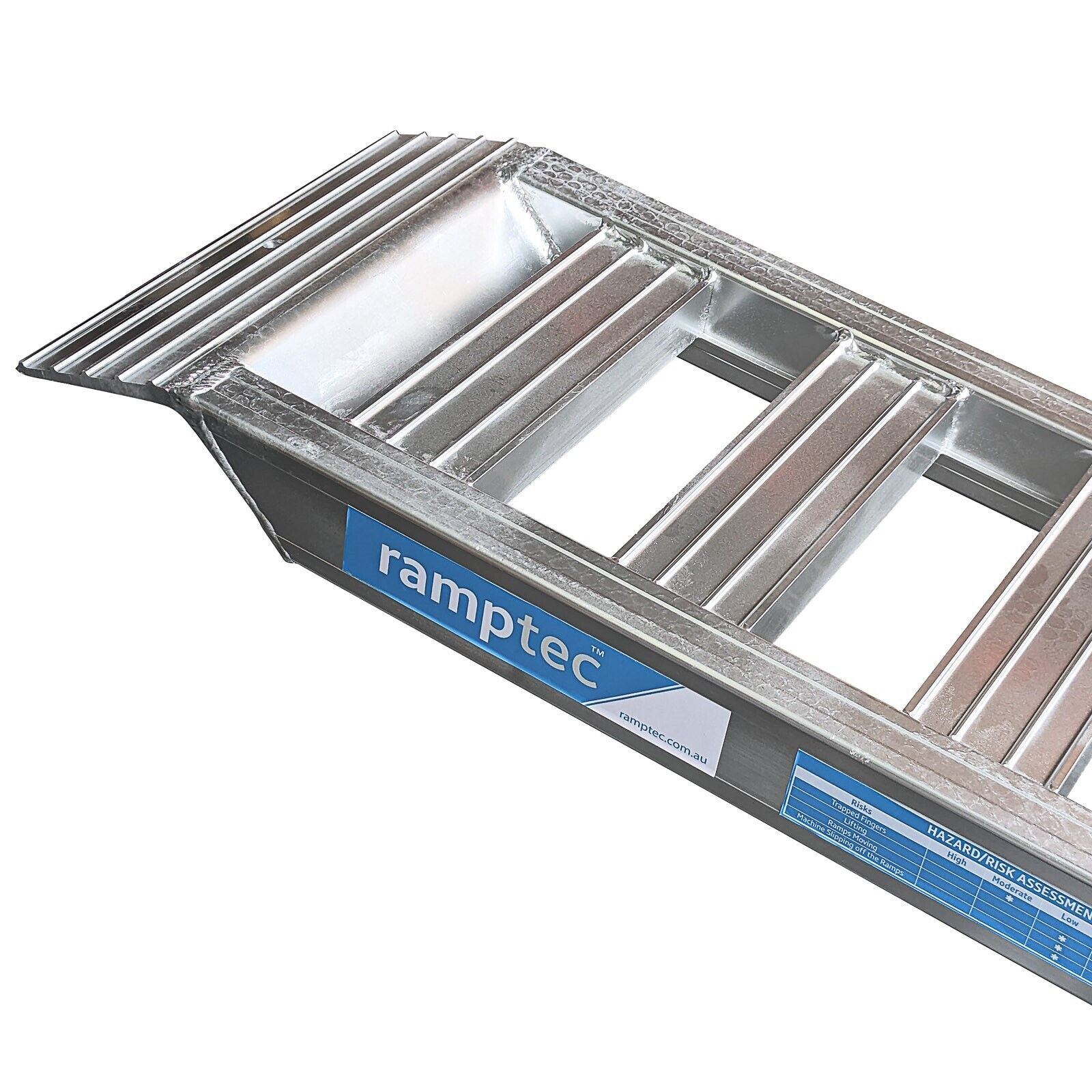

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.
  • These ramps are suited to rubber tracked wheeled machines
  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 1830
Inner Width (mm) :285
Outer Width (mm) :380
Height of Ramp Profile (mm):82
Rung Type: Square
Max Load Height (mm):540
Weight per Ramp (Kg):13
Load Capacity per pair (Kg):1800

SKUHDR.183.380.1.8
BrandRamptec
Length1.83M
Tonne1.8T
Shipping Weight26.0000kg
Shipping Width0.380m
Shipping Height0.170m
Shipping Length1.830m
Shipping Cubic0.118218000m3
