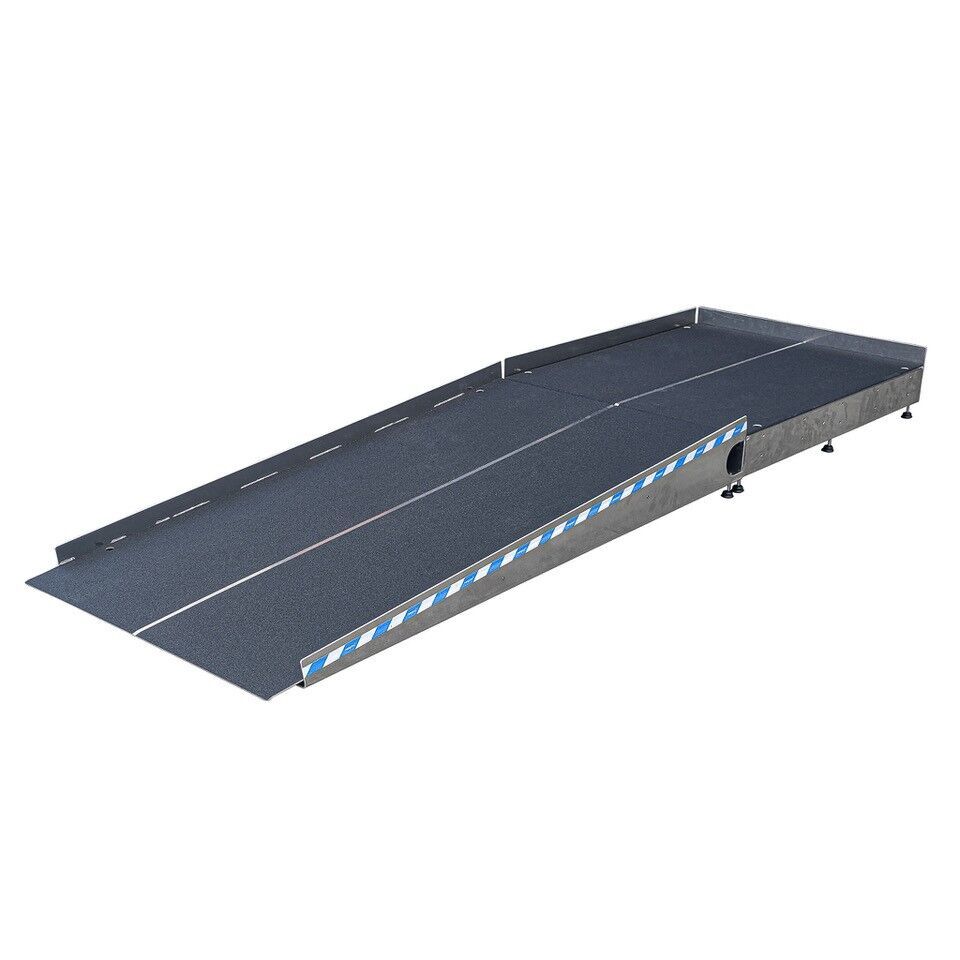

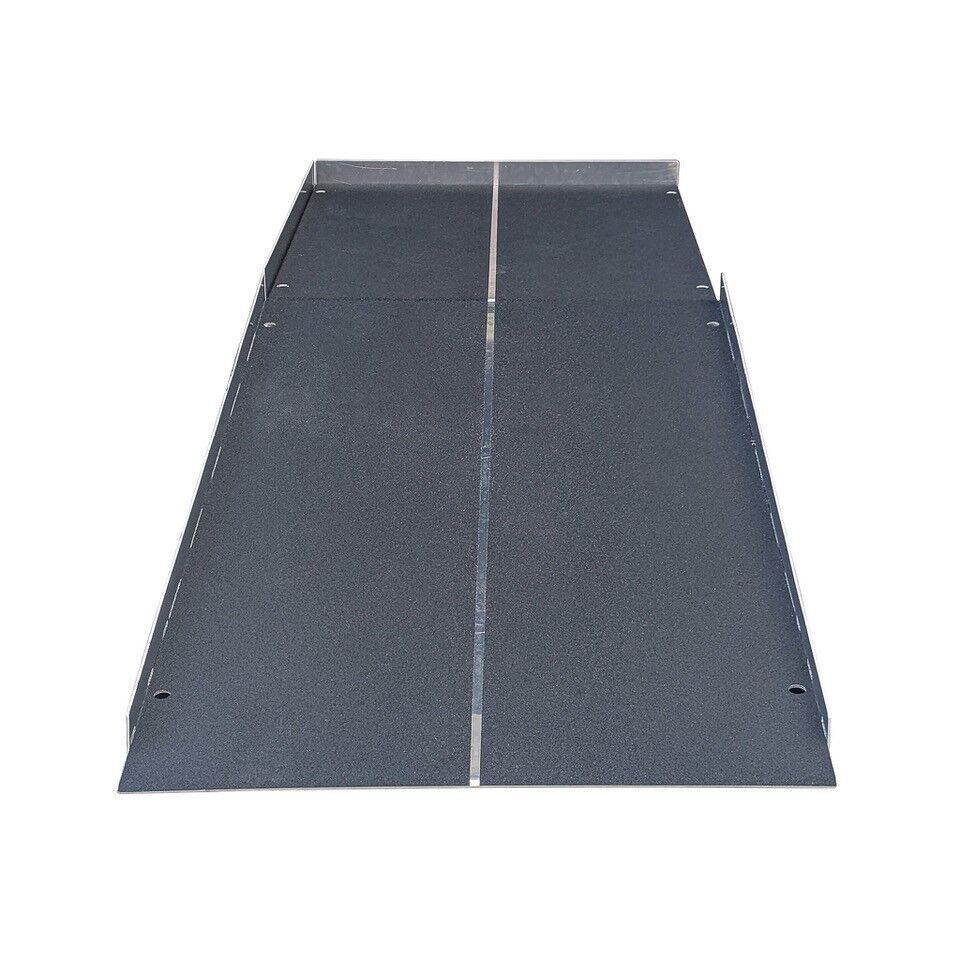

1040mm x 1000mm Aluminium Ramp with Landing (1000mm x 1200mm) - Garage Ramps -Adjustable from 77mm - 104mm
RTBW1900-RTBWPLATFORM_77
Overview: Introducing our 77mm - 104mm Tall Aluminium Access Ramp, expertly crafted to meet the new Australian Livable Design Standards for new home builds. This ramp is the perfect solution for seamless access from home garages into the dwelling, ensuring safety, convenience, and compliance with the latest accessibility requirements.
Key Features:
Compliant with Australian Livable Design Standards: Designed to adhere to the latest standards, ensuring your home is accessible and inclusive.
Durable Aluminium Construction: Made from high-quality aluminium, this ramp is lightweight yet robust, offering long-lasting performance and resistance to corrosion.
Optimal Dimensions: The ramp is adjsuable from 77mm - 104mm tall and 1040mm long, providing a 1:10 gradient that makes it easy for wheelchairs, strollers, and other mobility aids to navigate.
Non-Slip Surface: Features an adhesive grit tape surface to enhance safety, even in wet conditions.

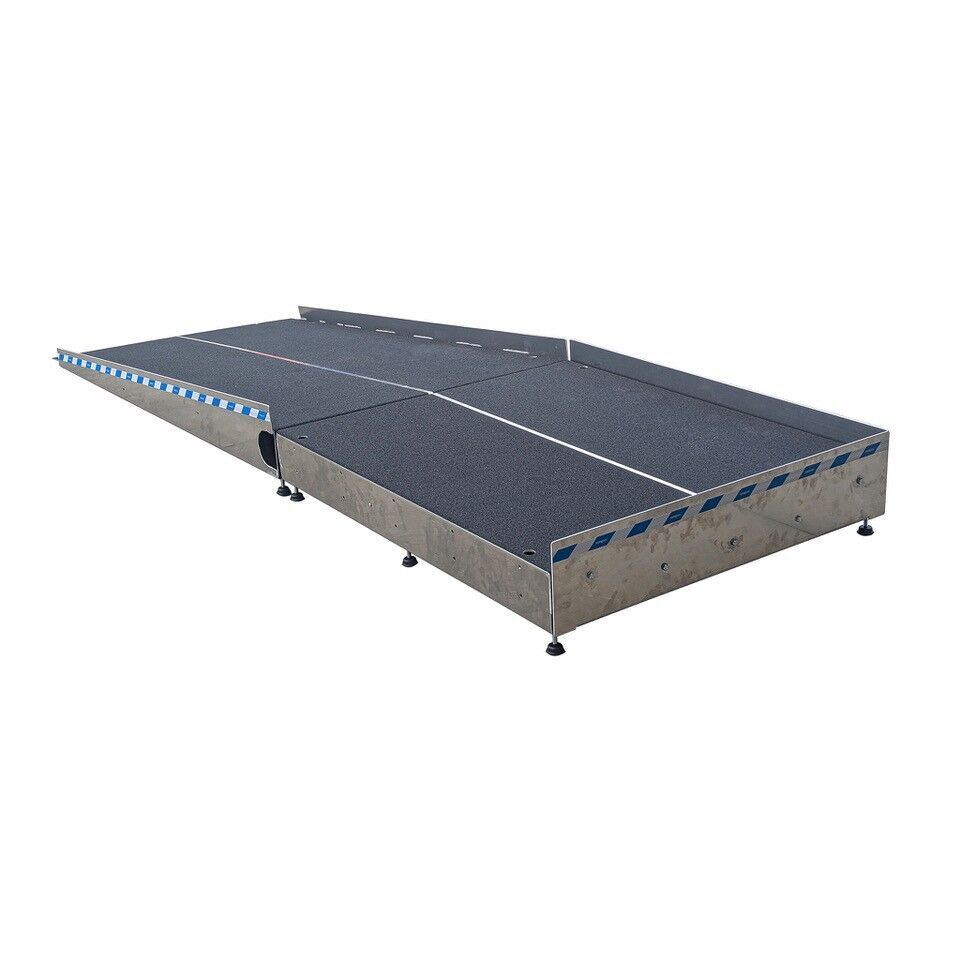

Aluminium Landing: Includes is an adjustable (77mm - 104mm tall) aluminium landing, allowing the ramp to run parallel to the door and enabling wheelchair users to turn and enter the door with ease.
Easy Installation: Designed for quick and straightforward installation, allowing you to set it up with minimal effort.
Versatile Use: Ideal for use in home garages, but also suitable for other entry points where a low-rise ramp is needed.
Benefits:
Enhanced Accessibility: Facilitates smooth and safe transitions between different levels, promoting independence for individuals with mobility challenges.
Compliance and Peace of Mind: Meets the stringent requirements of the Australian Livable Design Standards, ensuring your home is future-proofed and accessible.
Low Maintenance: The aluminium construction requires minimal upkeep, saving you time and effort.
Applications:

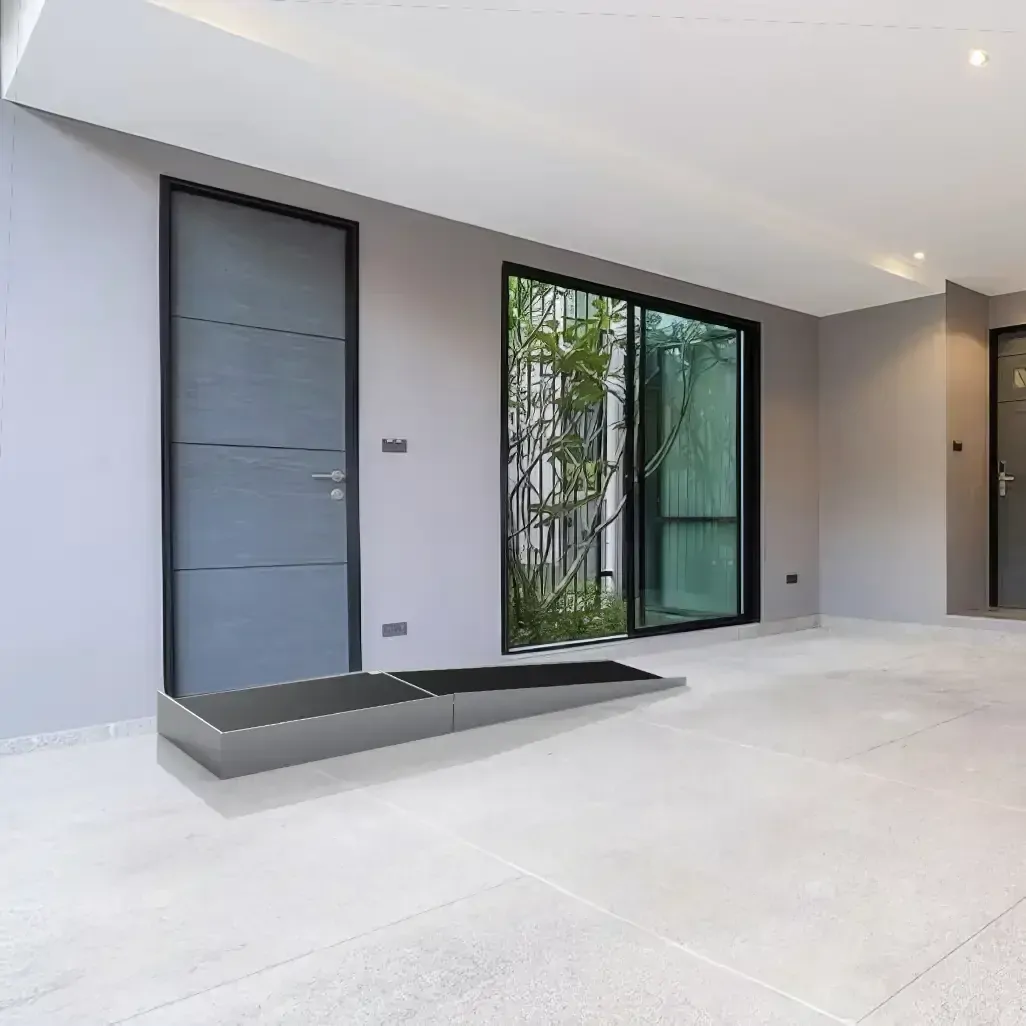

Home Garages: Perfect for creating a seamless entry from the garage into the home.
Other Entry Points: Suitable for any low-rise entry point that requires improved accessibility.
Upgrade your home with our 190mm Tall Aluminium Access Ramp and enjoy the benefits of enhanced accessibility, safety, and compliance with the latest standards.

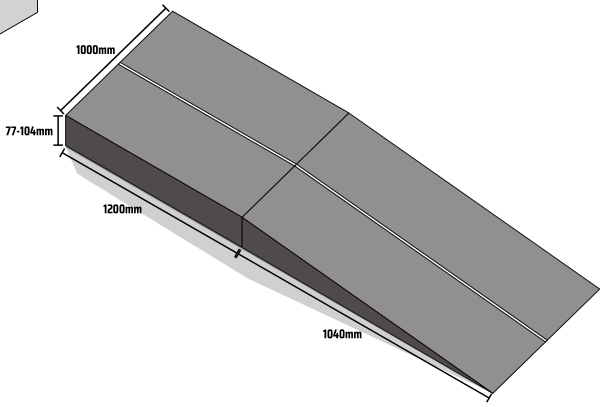

Specifications:
Ramp Length - 1040mm
Ramp Width - 1000mm
Platform Length - 1200mm
Platform Width - 1000mm
Material: Aluminium
Surface: Grit Tape

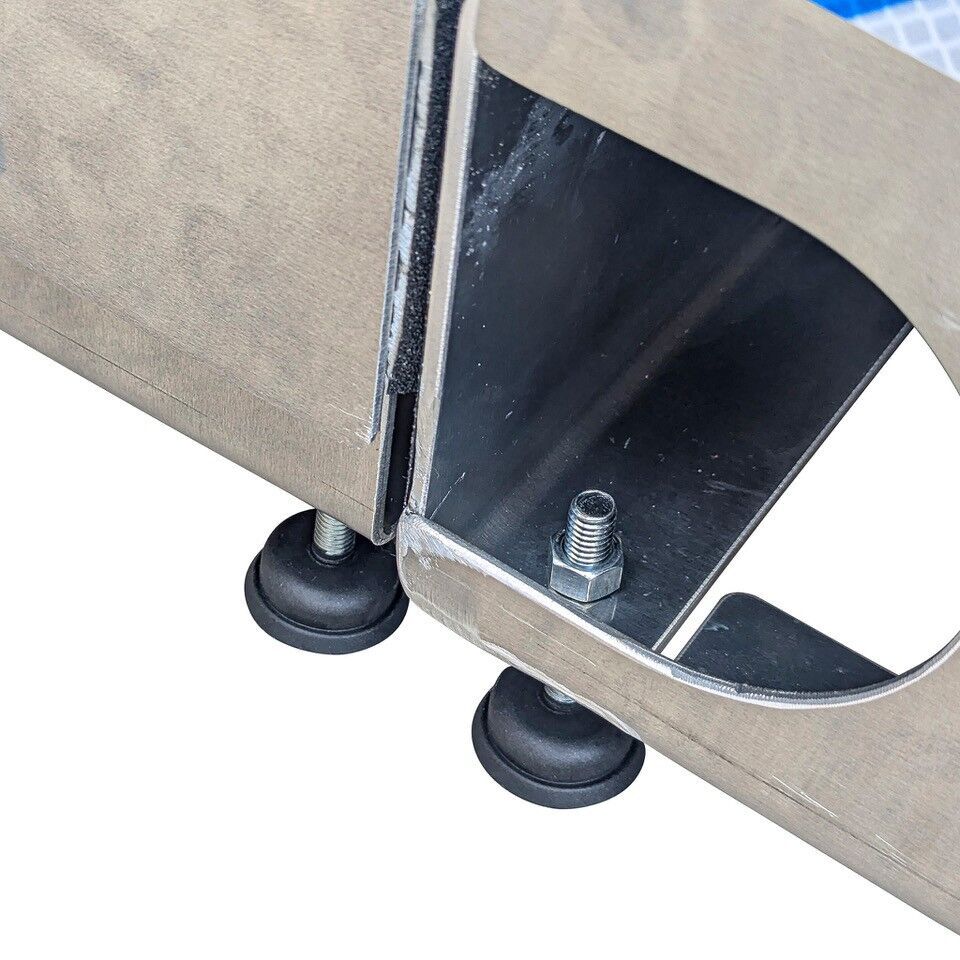

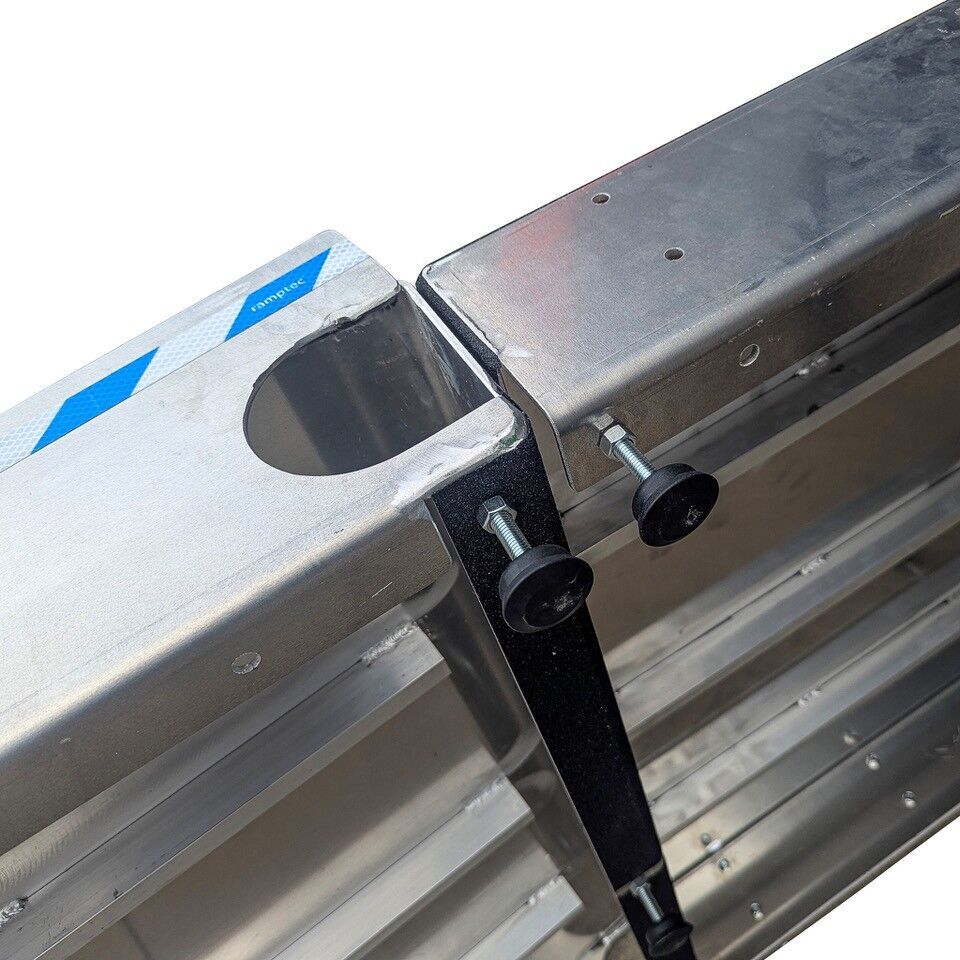

Adjustable from 77mm up to 104mm
Capacity - 372KG
Ramp Weight: 16KG
Platform Weight - 19KG
SKU | RTBW1900-RTBWPLATFORM_77 |
Brand | Ramptec |
Shipping Weight | 70.0000kg |
Shipping Width | 1.100m |
Shipping Height | 0.300m |
Shipping Length | 3.100m |
Shipping Cubic | 1.023000000m3 |
For bulky items we use several freight carriers to ensure you get the best price. Complete your order or quote and we will get back to you with the available freight options.. Please note: Freight charges will apply and a quote for shipping will need to apply - . Please call us on 03 97024422 if you have any questions or submit a Freight inquiry by selecting the ENQUIRE now button.
