SKU - HDR240.28.20

Features:

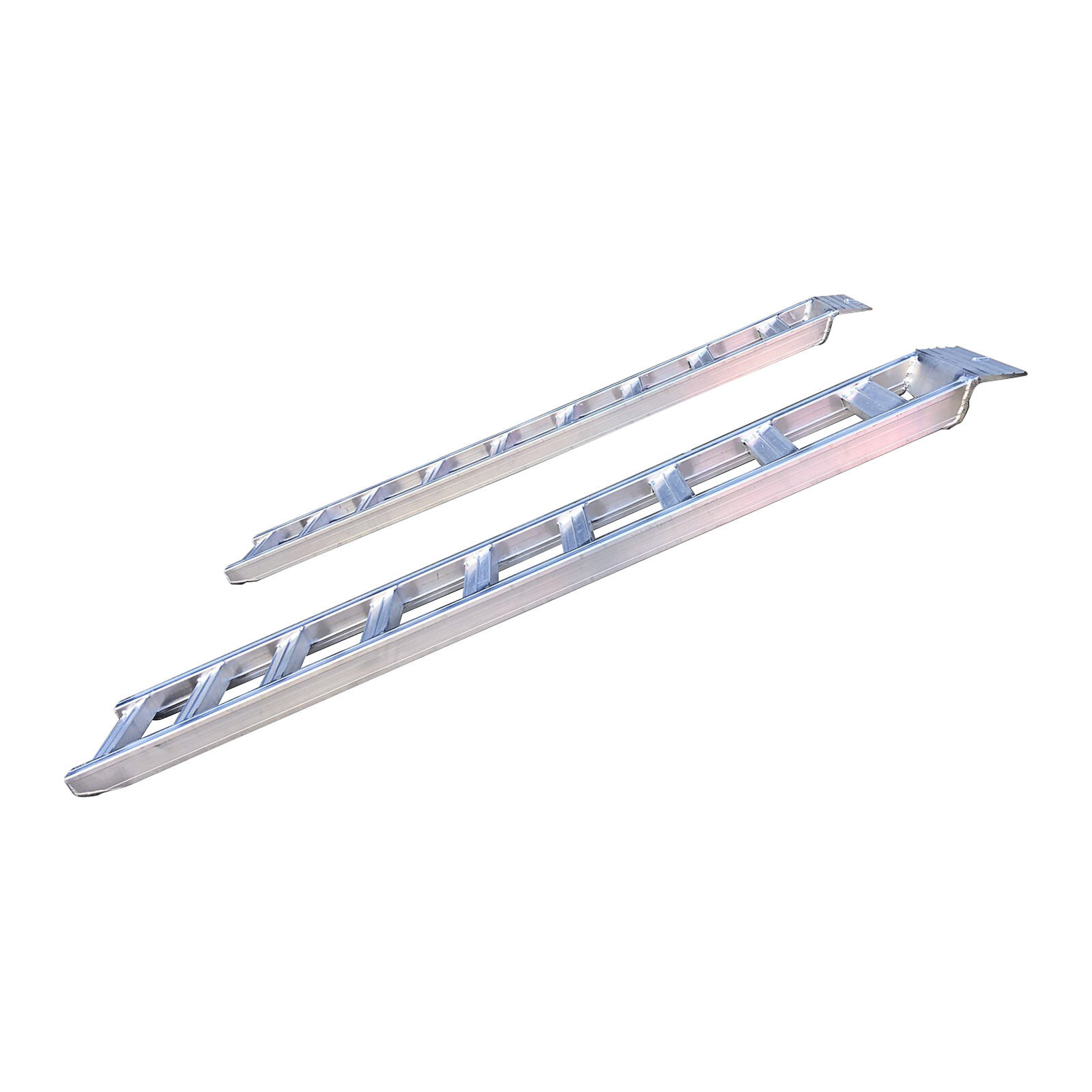

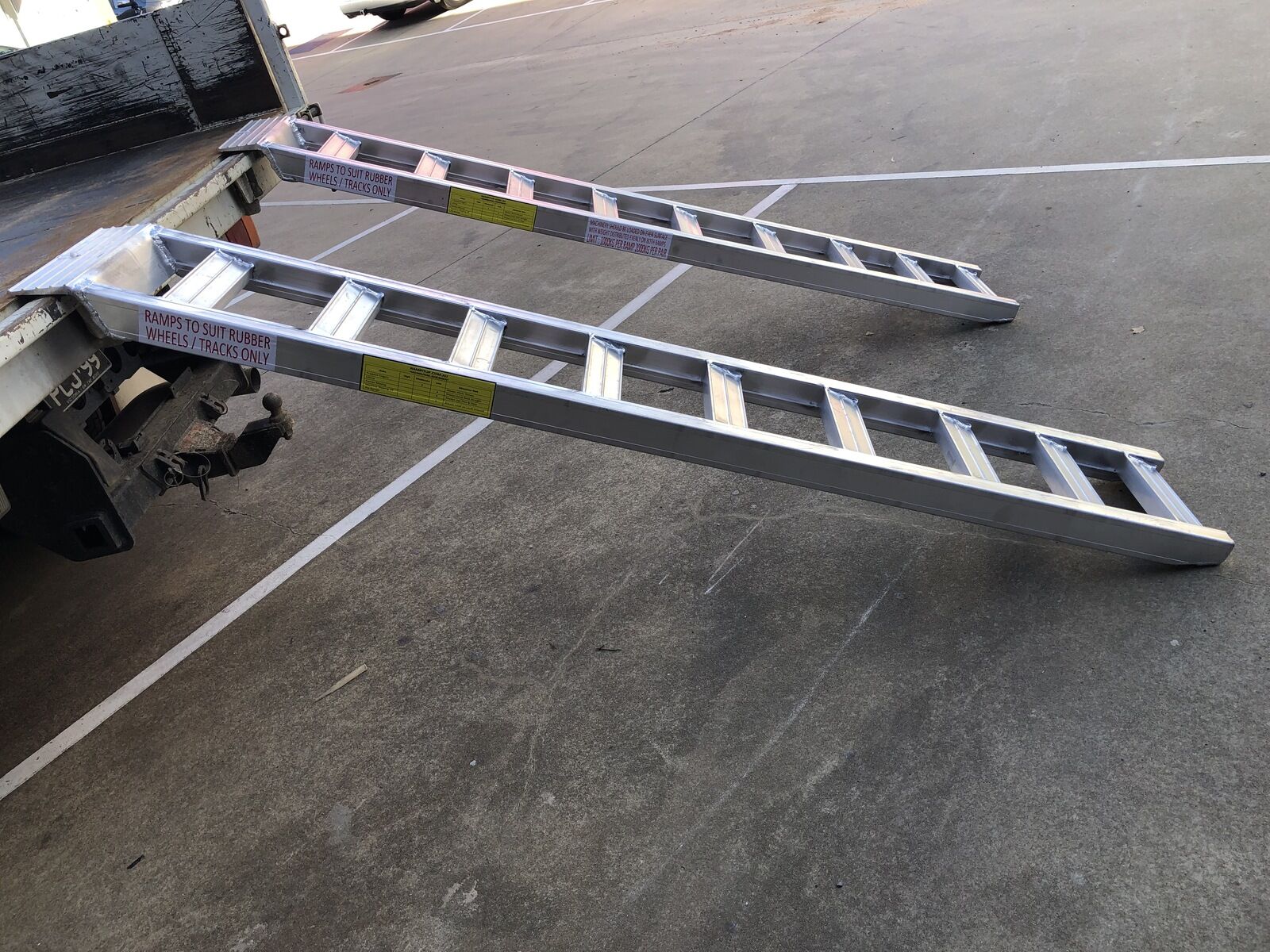

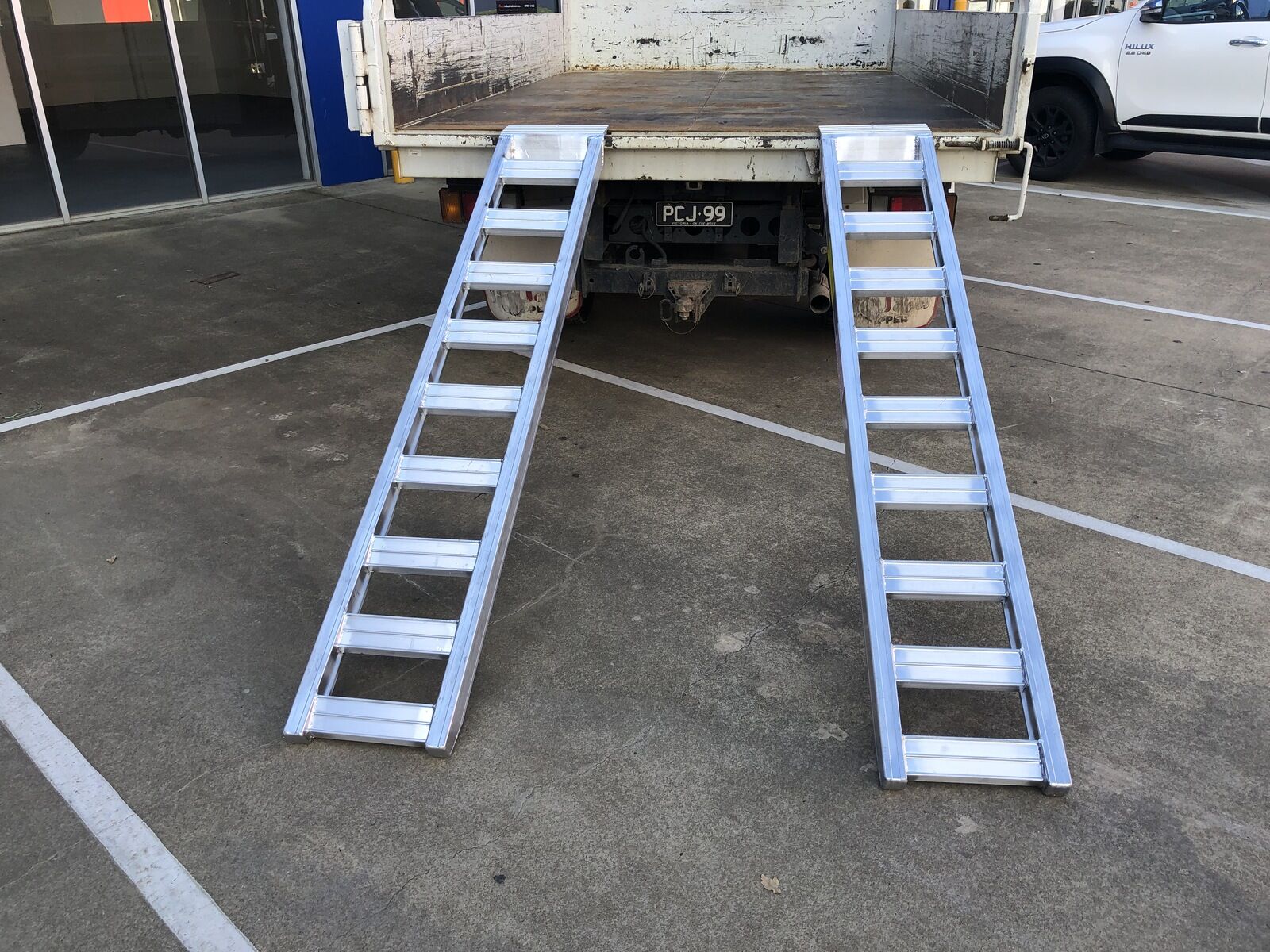

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

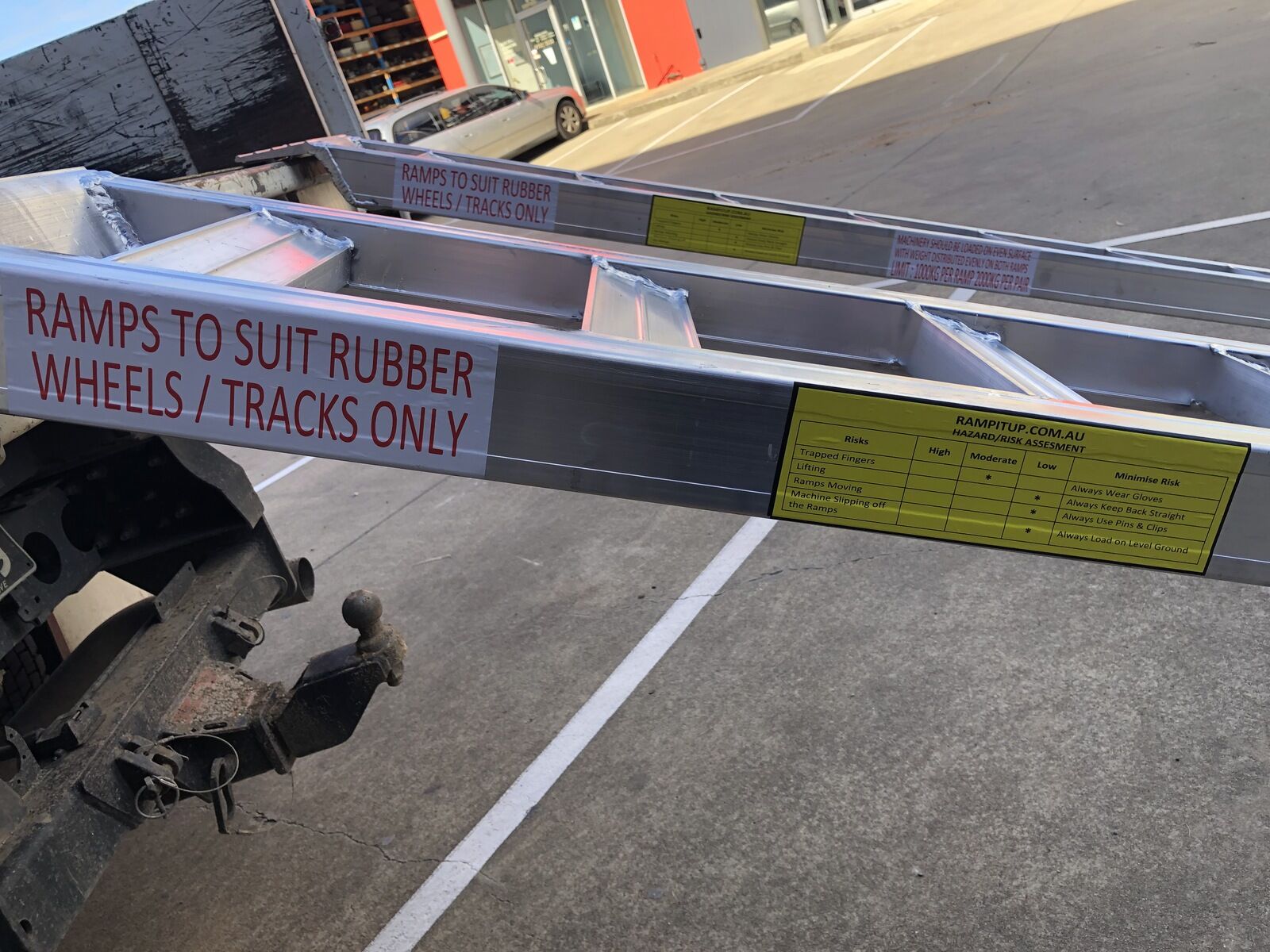

  • These ramps are suited to rubber tracked machines

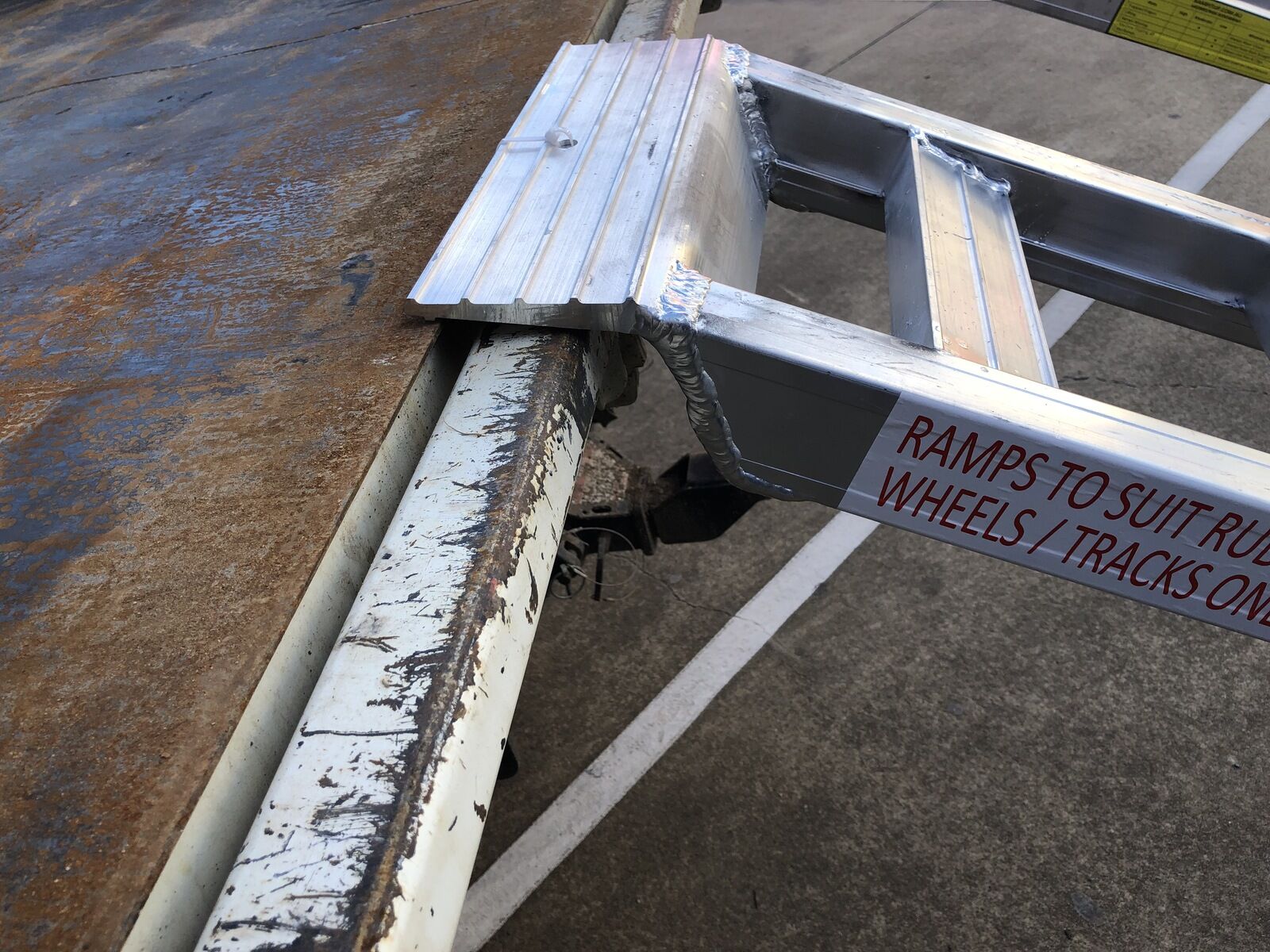

  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 2400
Inner Width (mm) :280
Outer Width (mm) :380
Height of Ramp Profile (mm):82

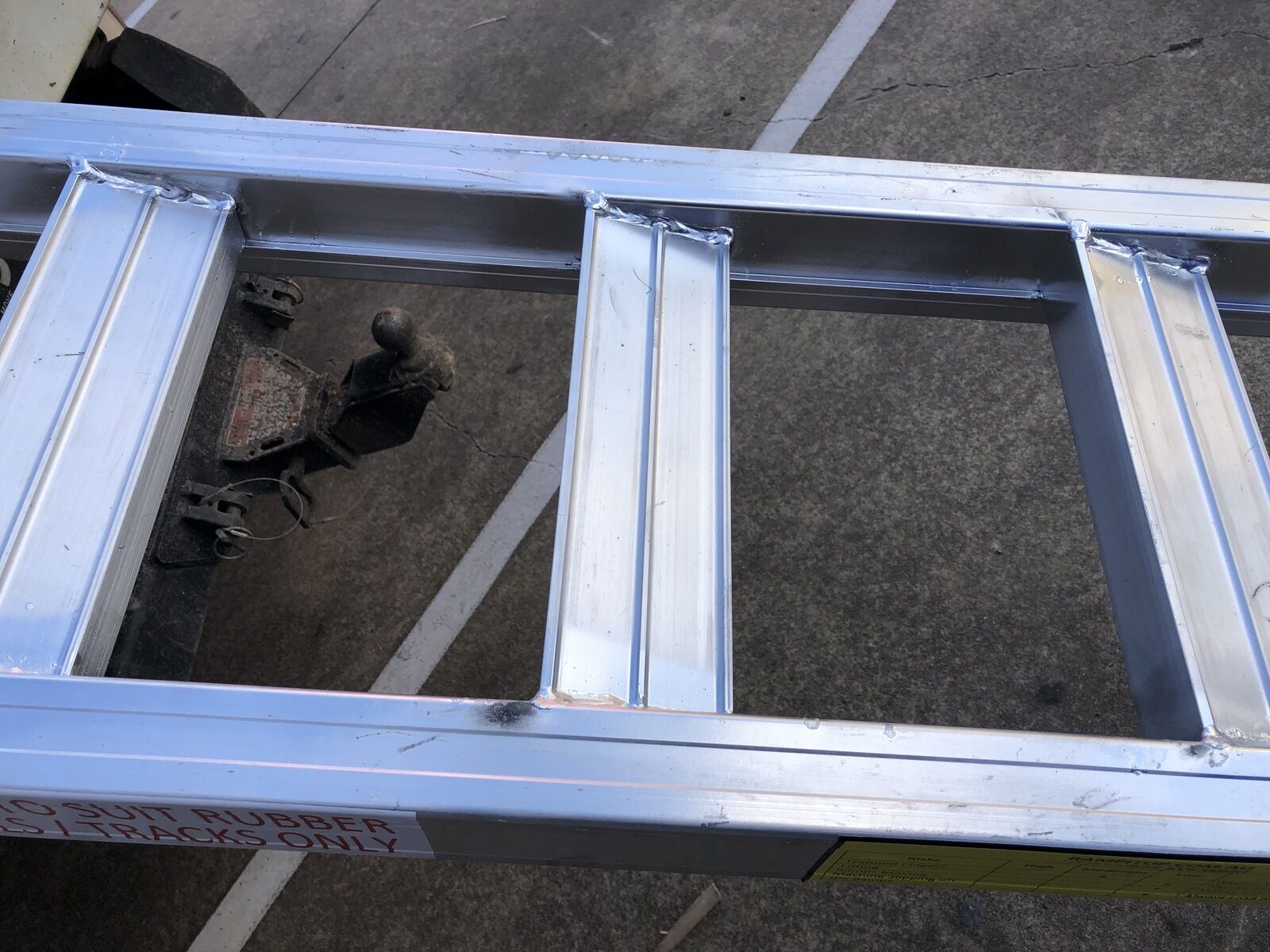

Rung Type: Angle
Max Load Height (mm): 720
Weight per Ramp (Kg): 15
Load Capacity per pair (Kg): 2000





SKUHDR240.28.20
BrandRamptec
Length2.4M
Tonne2T
Shipping Weight30.0000kg
Shipping Width0.360m
Shipping Height0.160m
Shipping Length2.400m
Shipping Cubic0.138240000m3
