SKU  - HDR.350.30.20


Features:

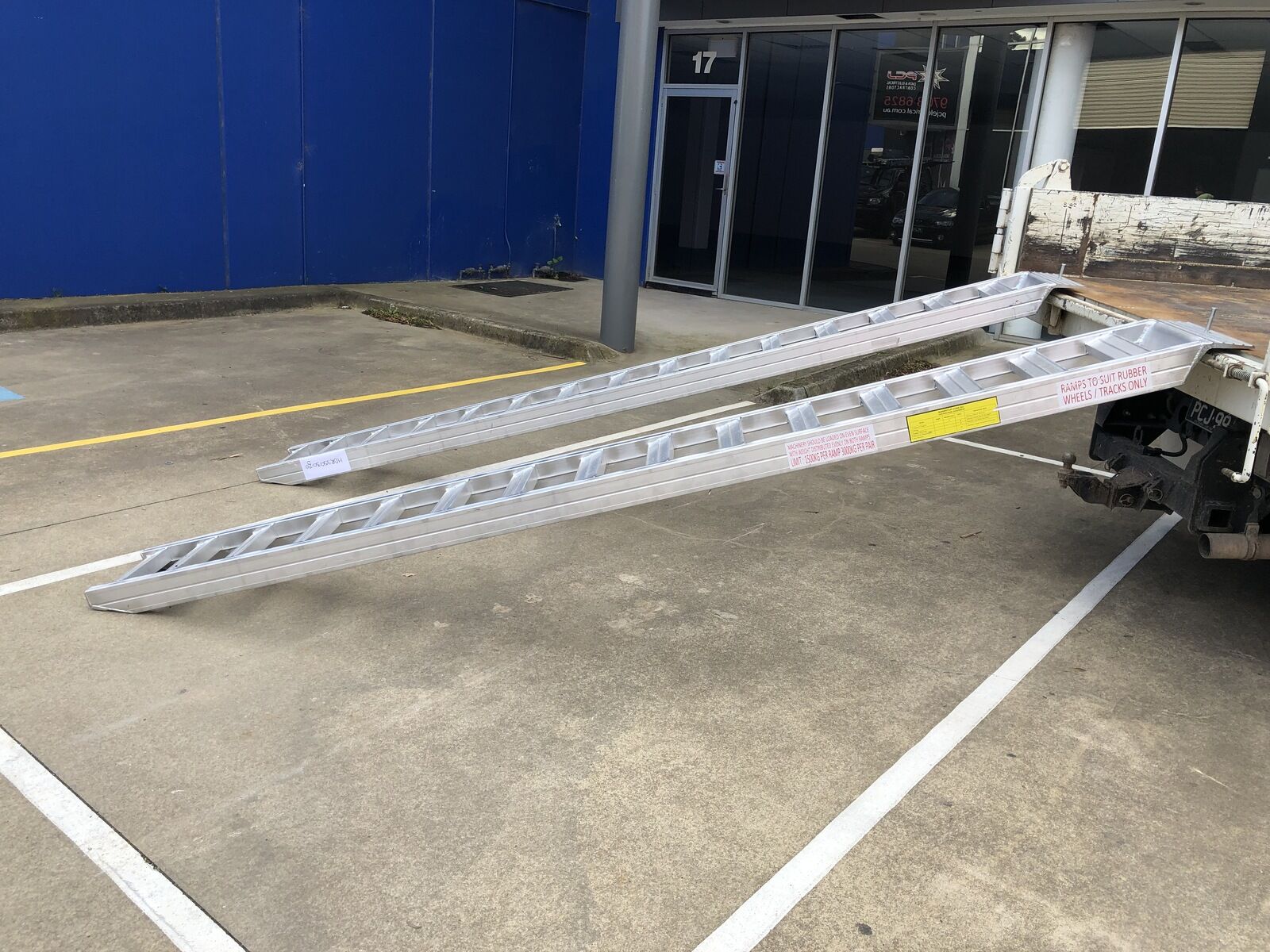

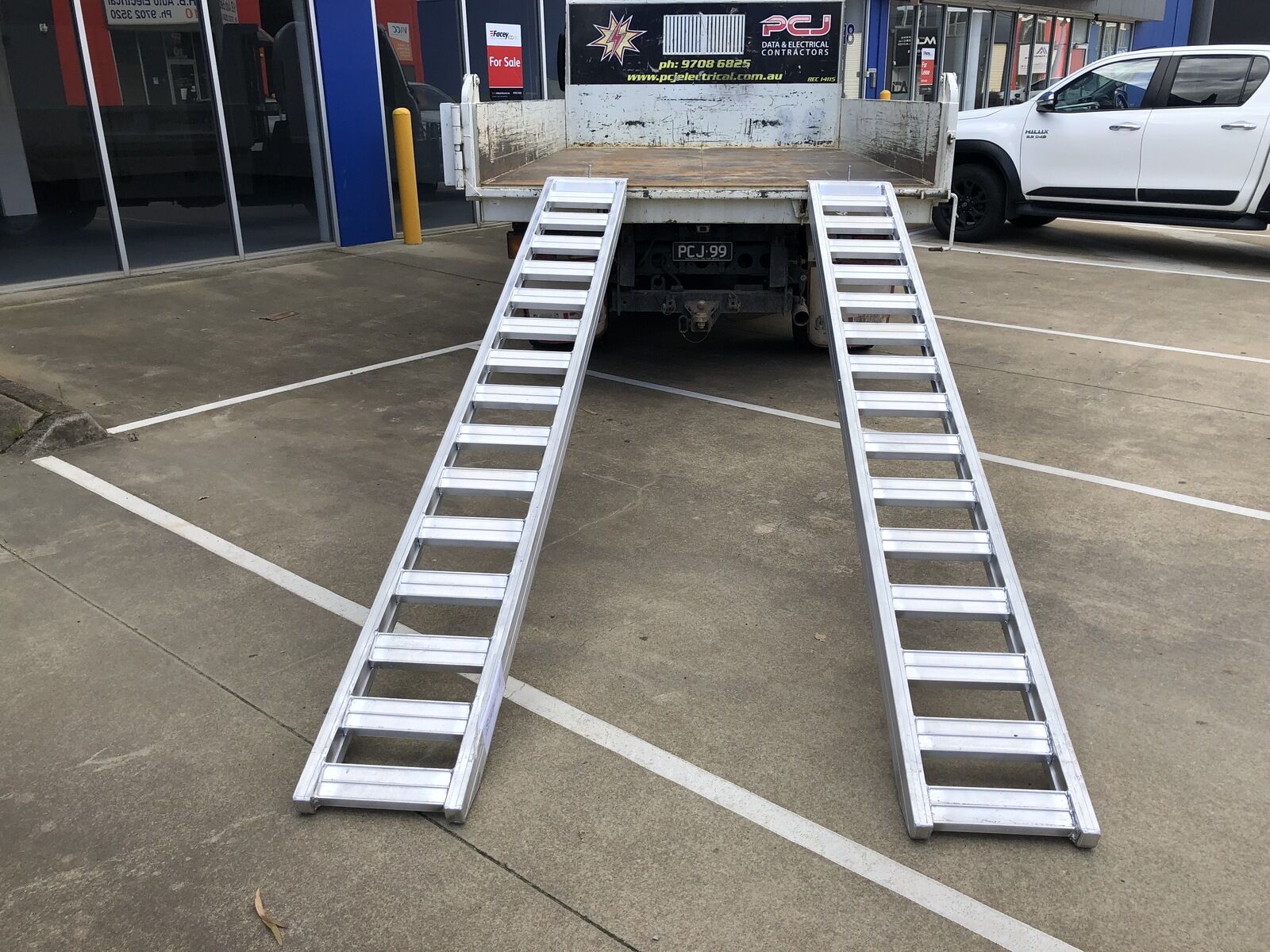

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.
  • These ramps are suited to rubber tracked machines

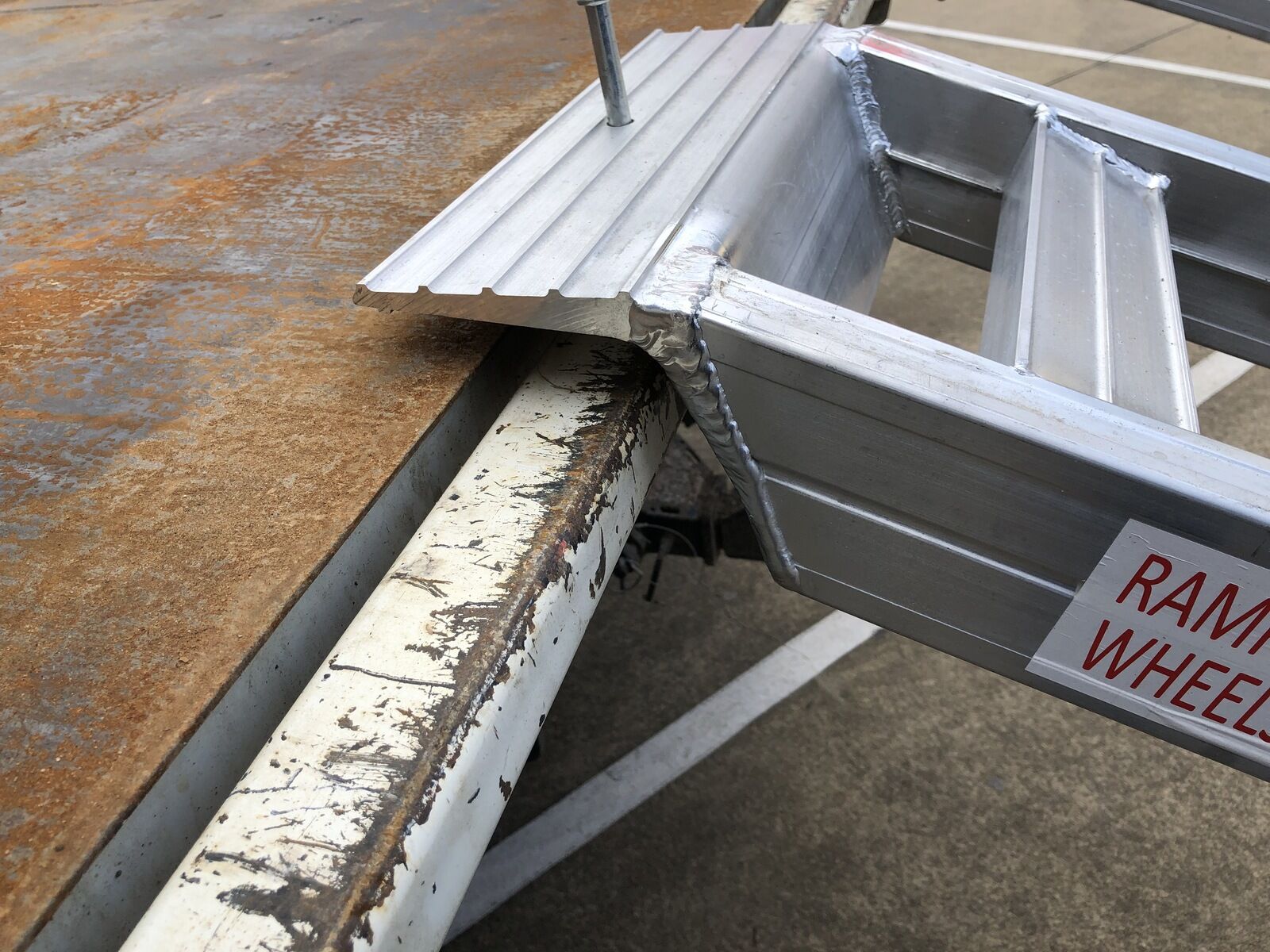

  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 3500
Inner Width (mm) :300
Outer Width (mm) :390
Height of Ramp Profile (mm):106

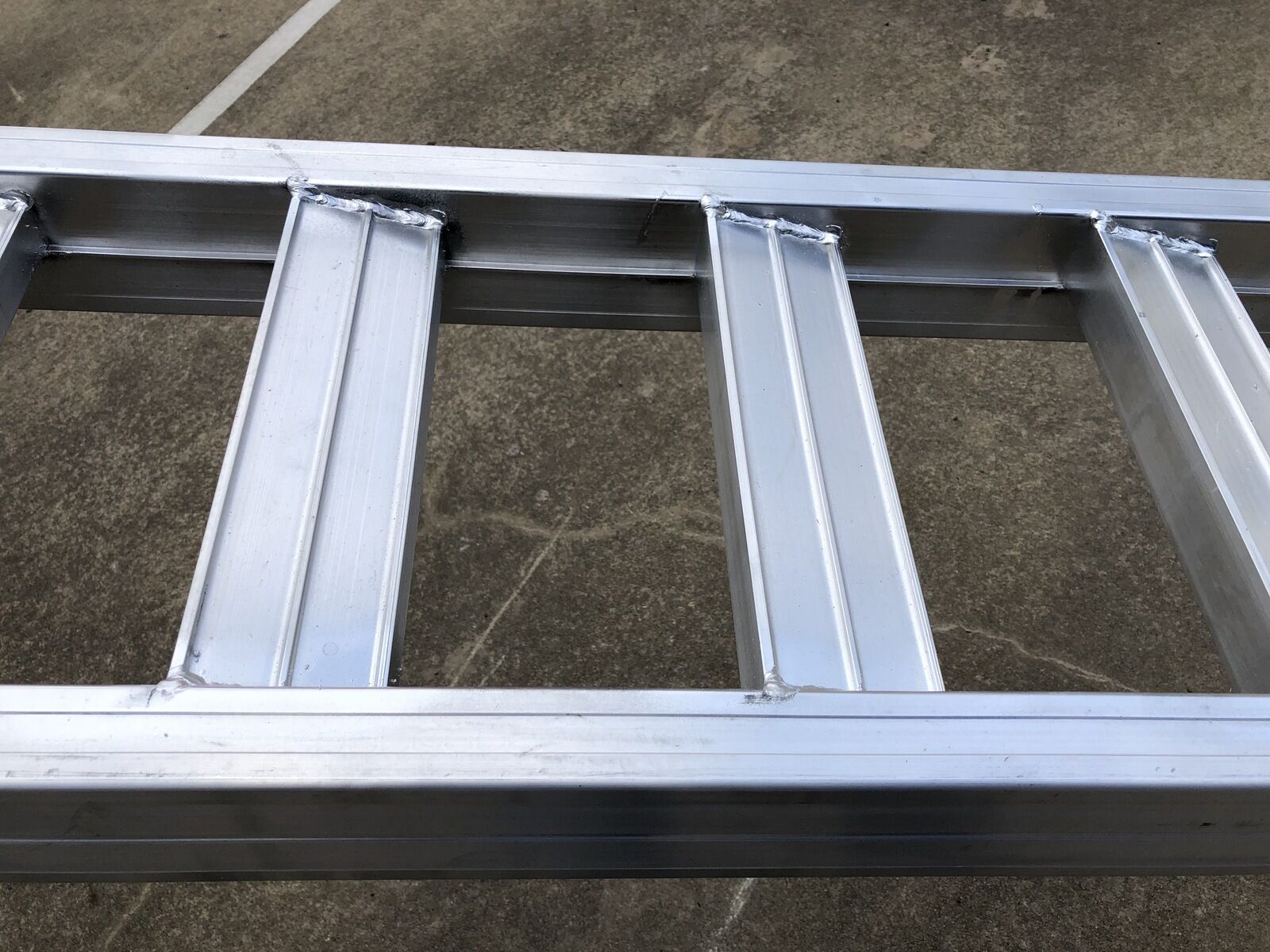

Rung Type: Angle
Rung Spacing (mm) 150
Max Load Height (mm): 1200
Weight per Ramp (Kg): 26
Loading Capacity per Pair (Kg)  2000



SKUHDR.350.30.20
BrandRamptec
Length3.5M
Tonne2T
Shipping Weight52.0000kg
Shipping Width0.380m
Shipping Height0.220m
Shipping Length3.500m
Shipping Cubic0.292600000m3
