SKU - HDR183.36.24

Features:

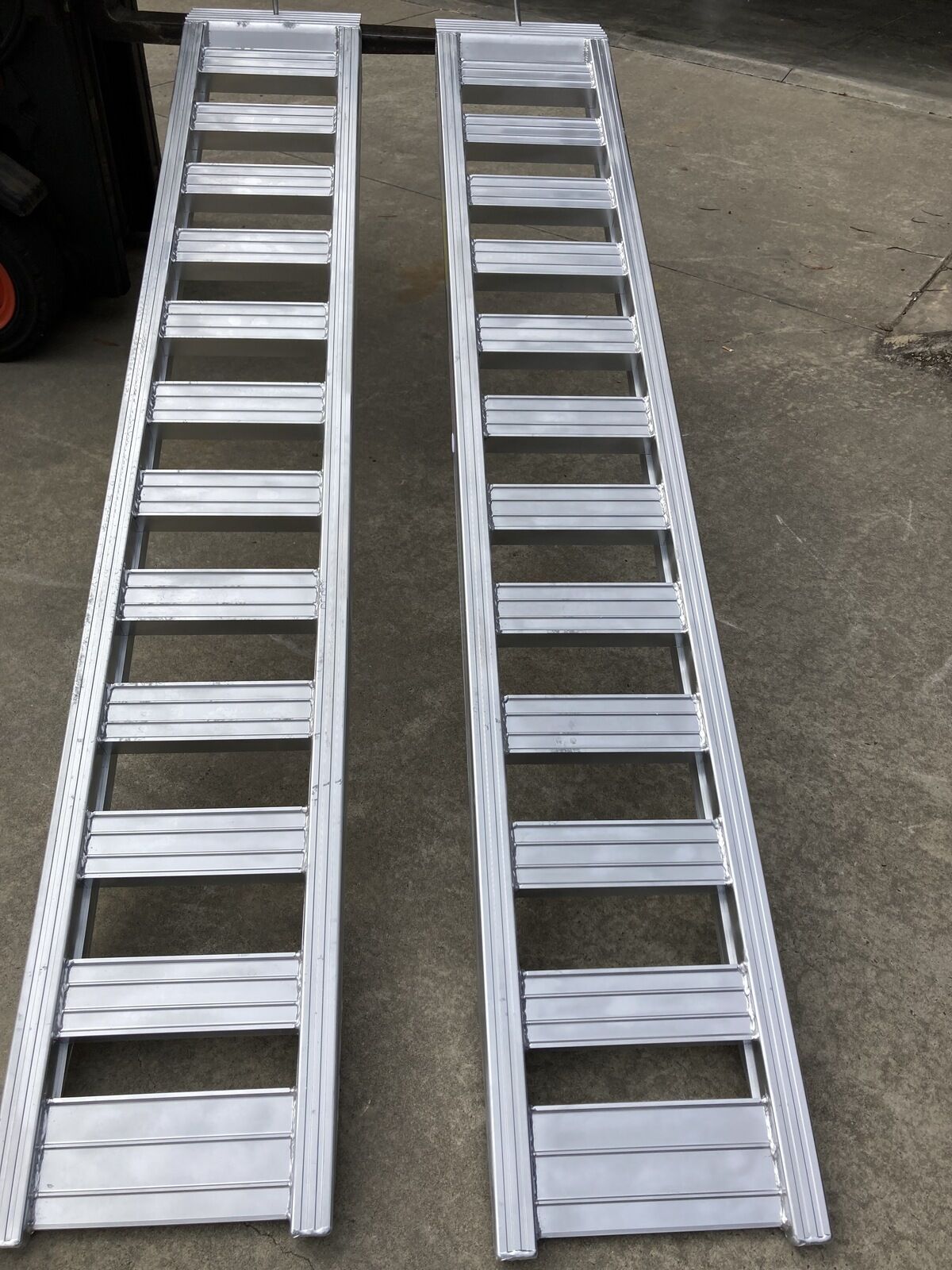

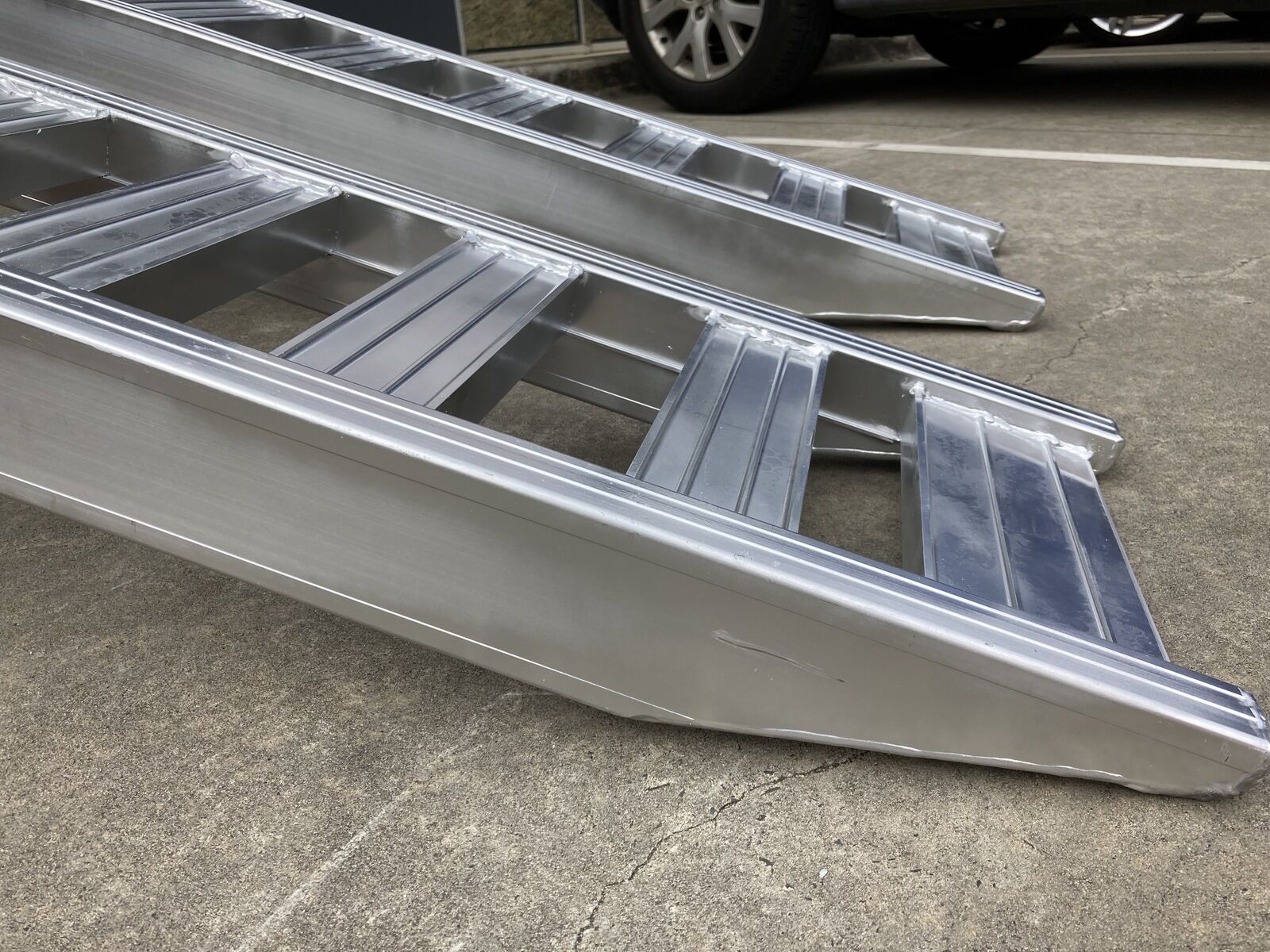

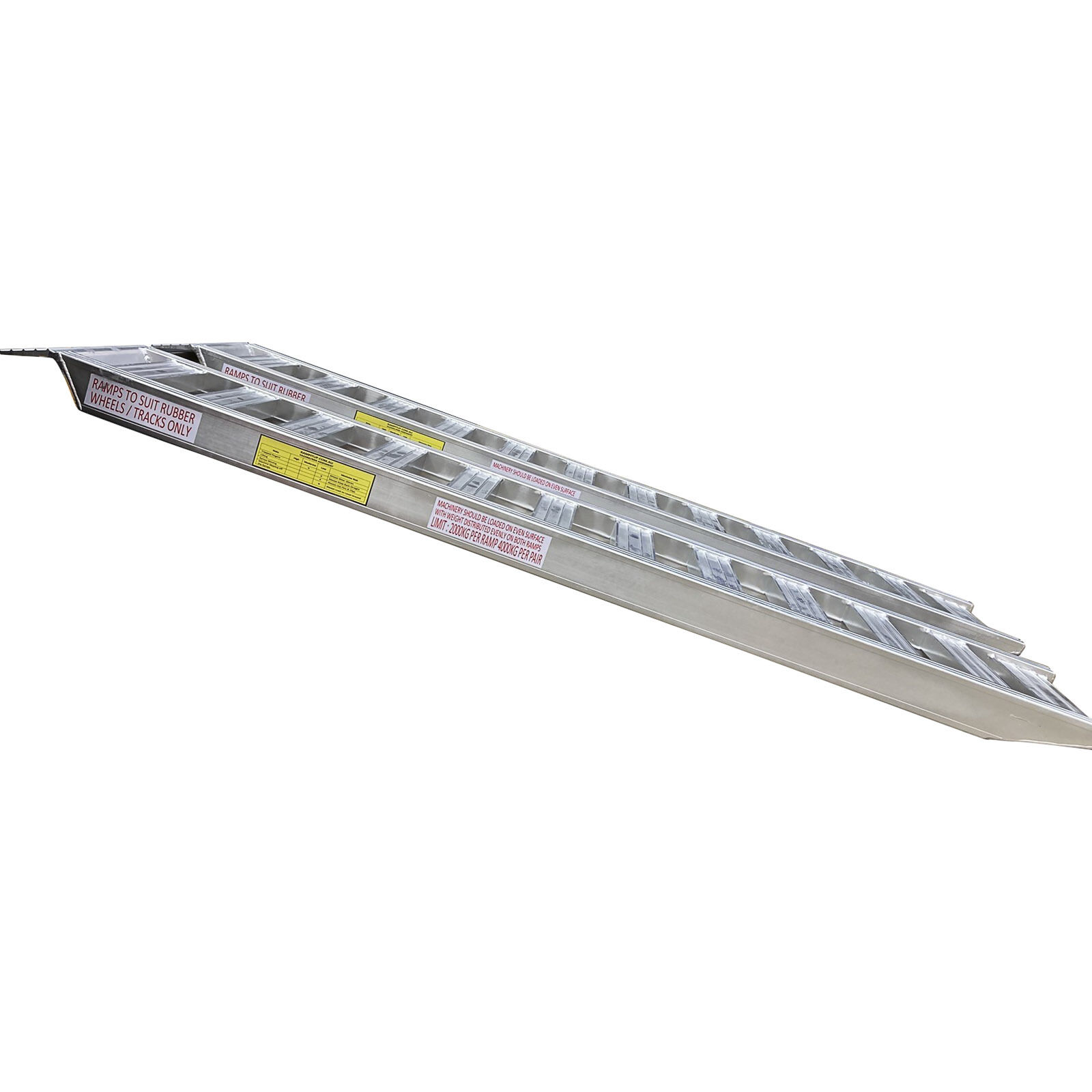

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.
  • These ramps are suited to rubber tracked wheeled machines
  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 1830
Inner Width (mm) :360
Outer Width (mm) :450
Height of Ramp Profile (mm):82
Rung Type: Square
Max Load Height (mm):540
Weight per Ramp (Kg):15
Load Capacity per pair (Kg):2400

SKUHDR183.36.24
BrandRamptec
Length1.83M
Tonne2.4T
Shipping Weight30.0000kg
Shipping Width0.450m
Shipping Height0.170m
Shipping Length1.830m
Shipping Cubic0.139995000m3
