SKU - HDR.2700.450.3

Features:

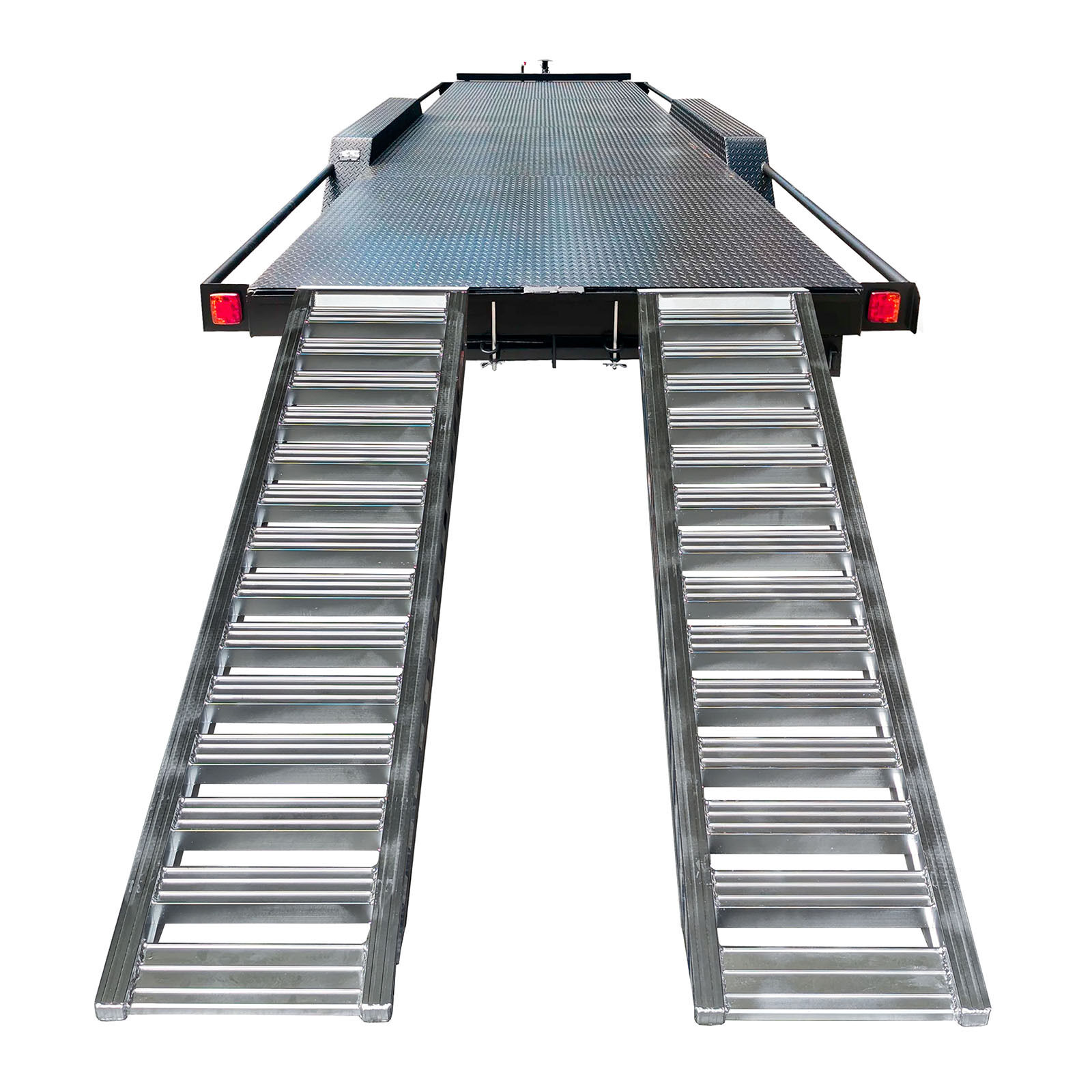

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.
  • These ramps are suited to rubber tracked machines
  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 2700

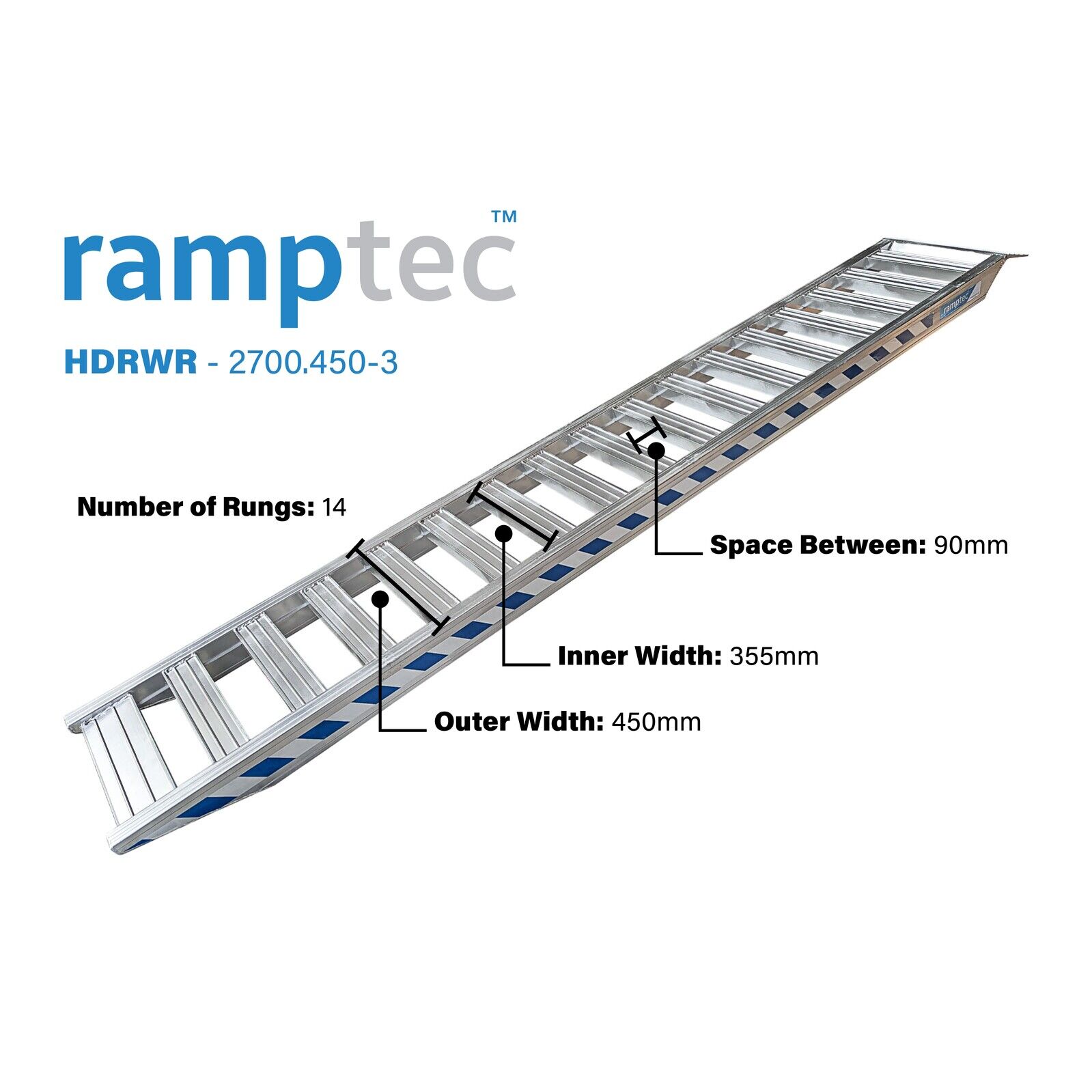

Inner Width (mm) :355
Outer Width (mm) :450
Height of Ramp Profile (mm):112

Space Between Rungs: 90mm
Rung Type: Angle
Max Load Height (mm): 810
Weight per Ramp (Kg): 21
Load Capacity per pair (Kg): 3000

SKUHDR.2700.450.3
BrandRamptec
Length2.7M
Tonne3T
Shipping Weight42.0000kg
Shipping Width0.380m
Shipping Height0.220m
Shipping Length2.700m
Shipping Cubic0.225720000m3
