SKU  - HDR.350.29.30


Features:

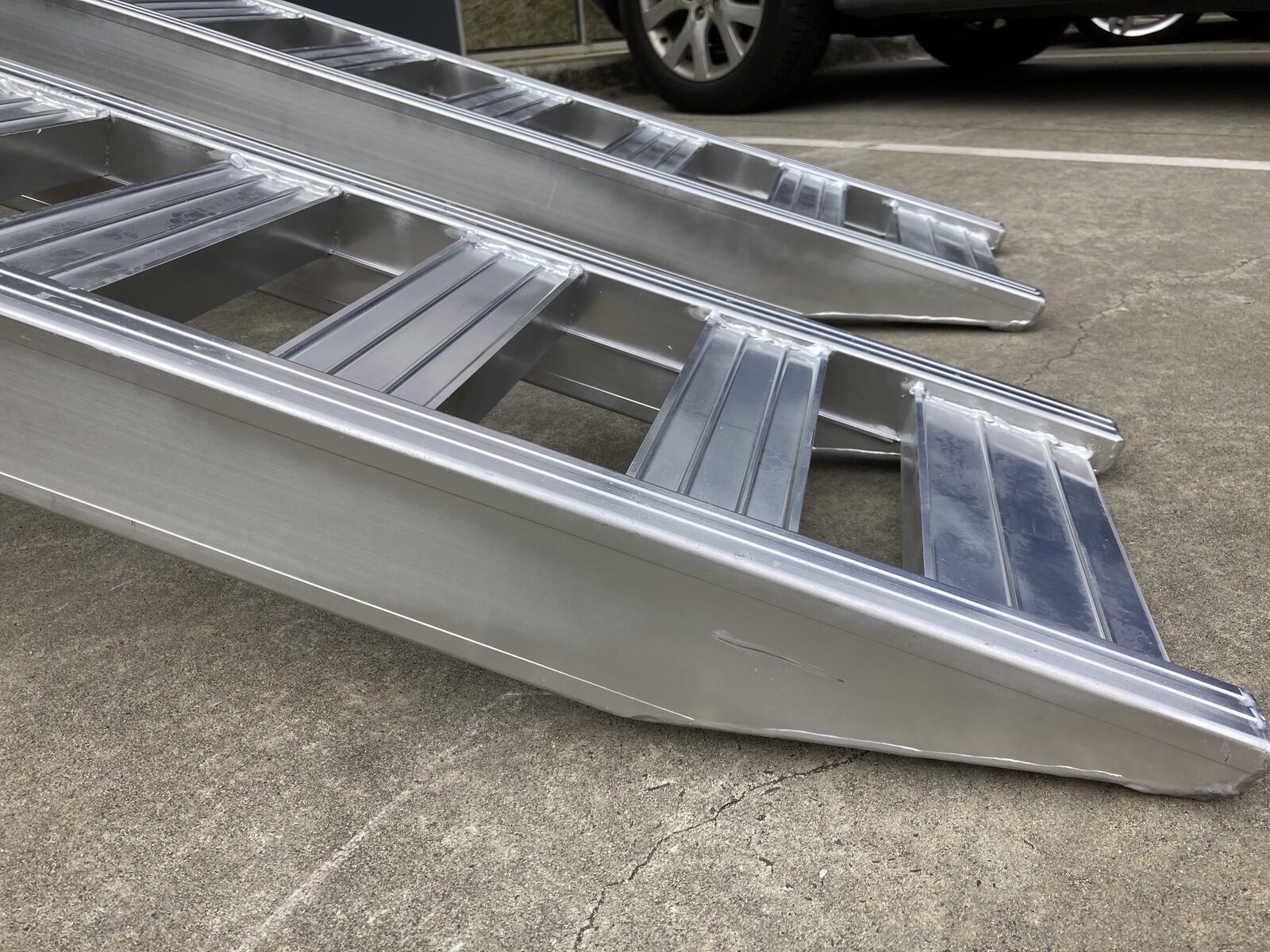

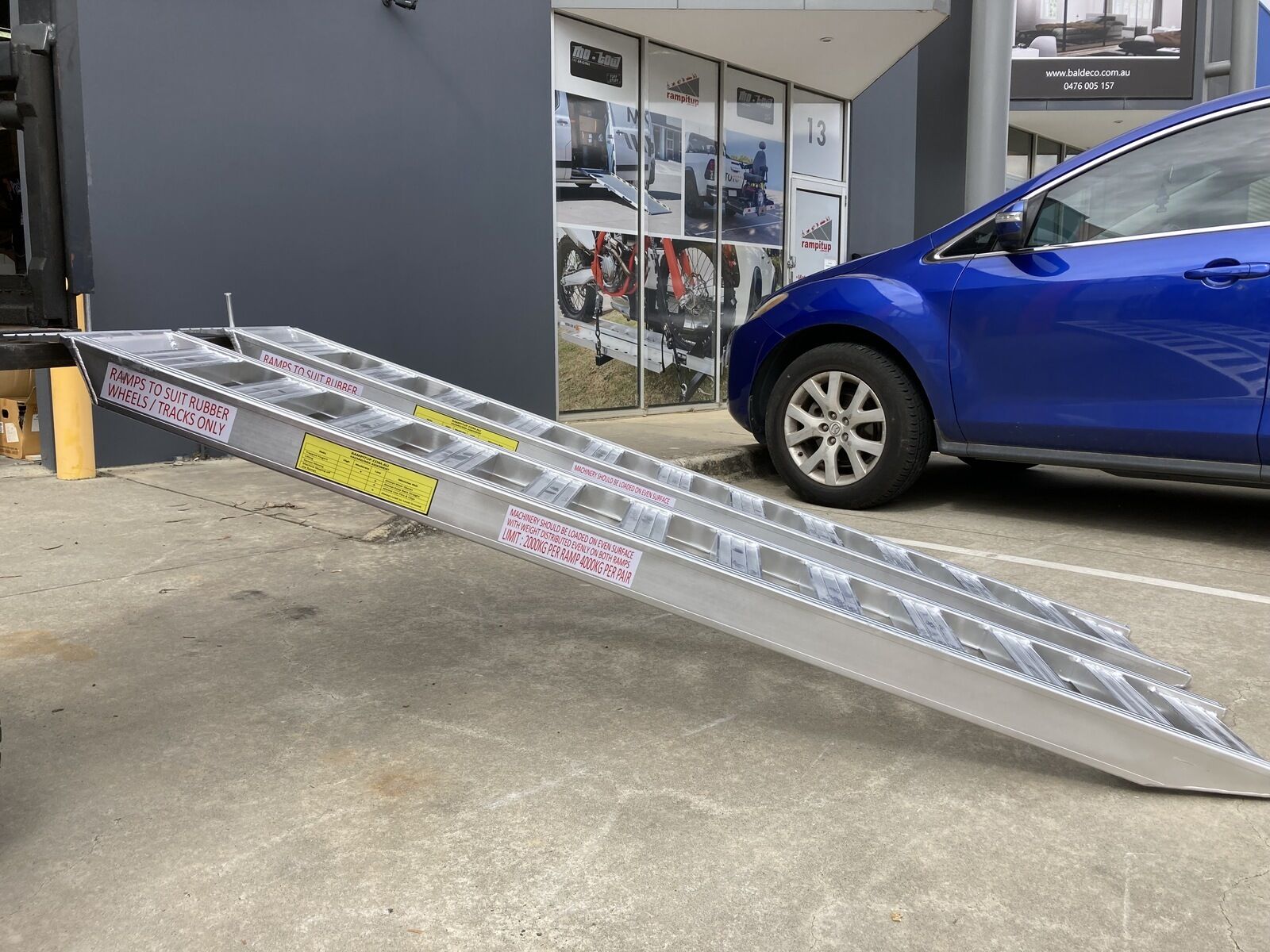

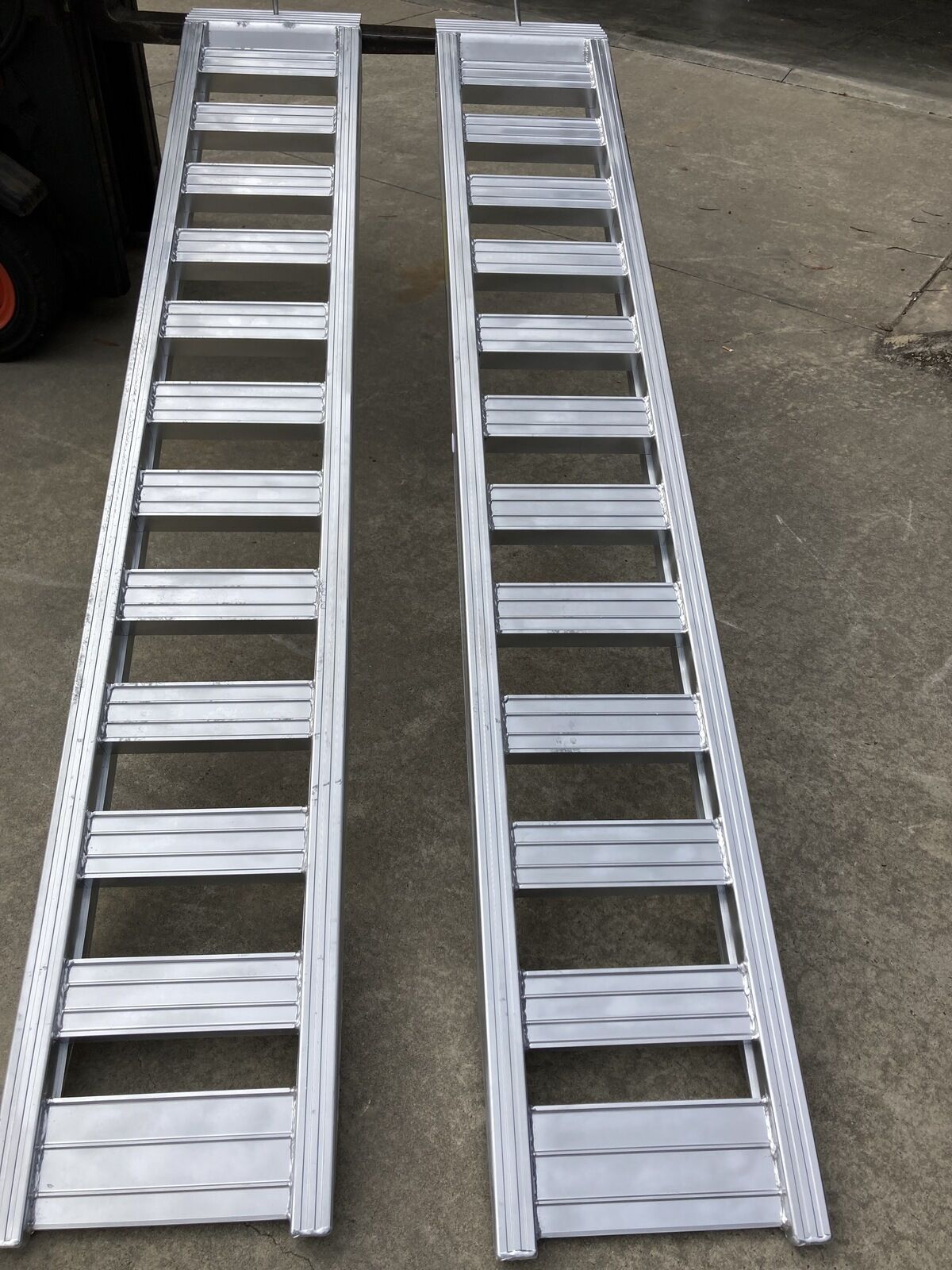

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

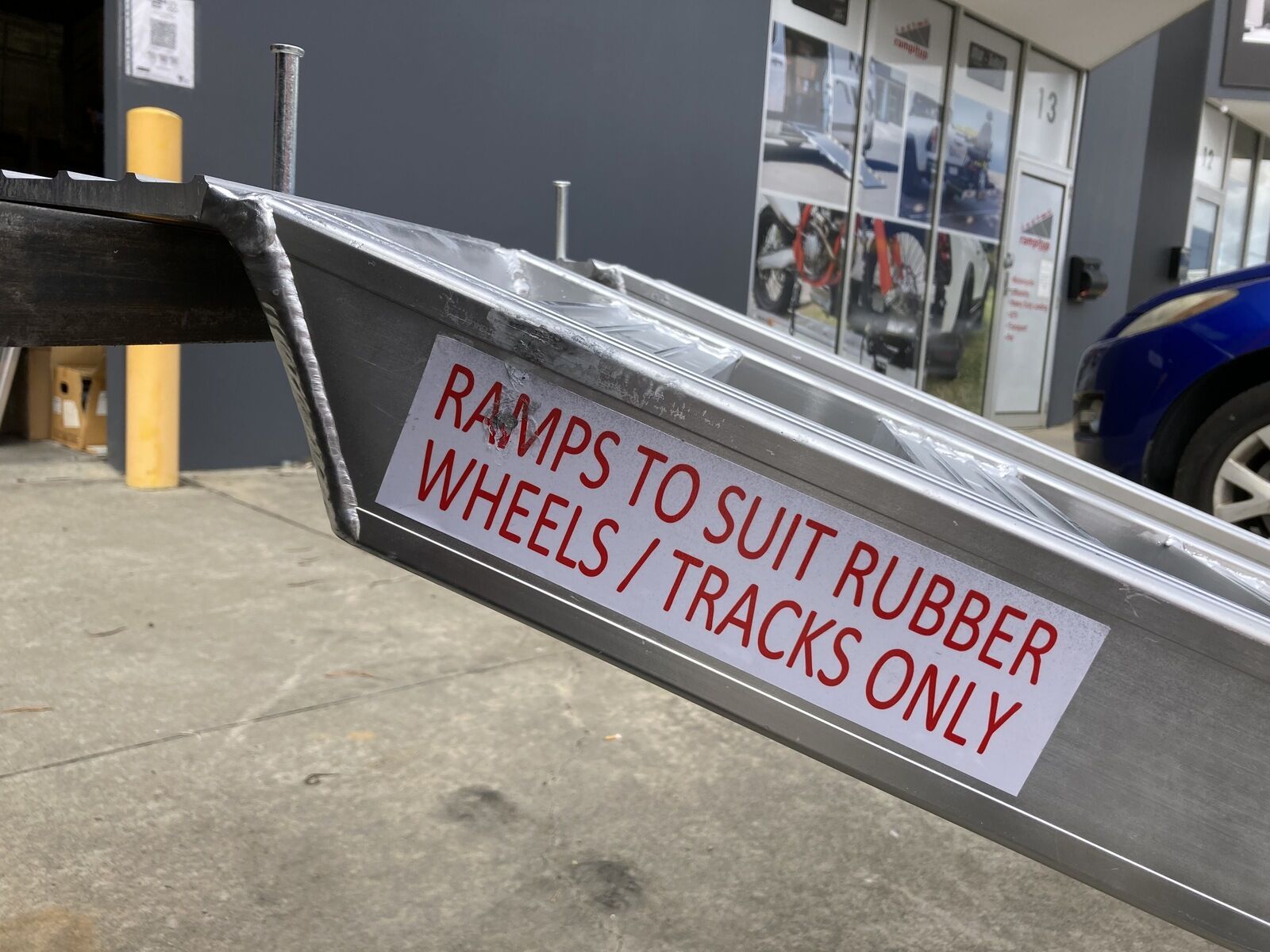

  • These ramps are suited to rubber tracked machines

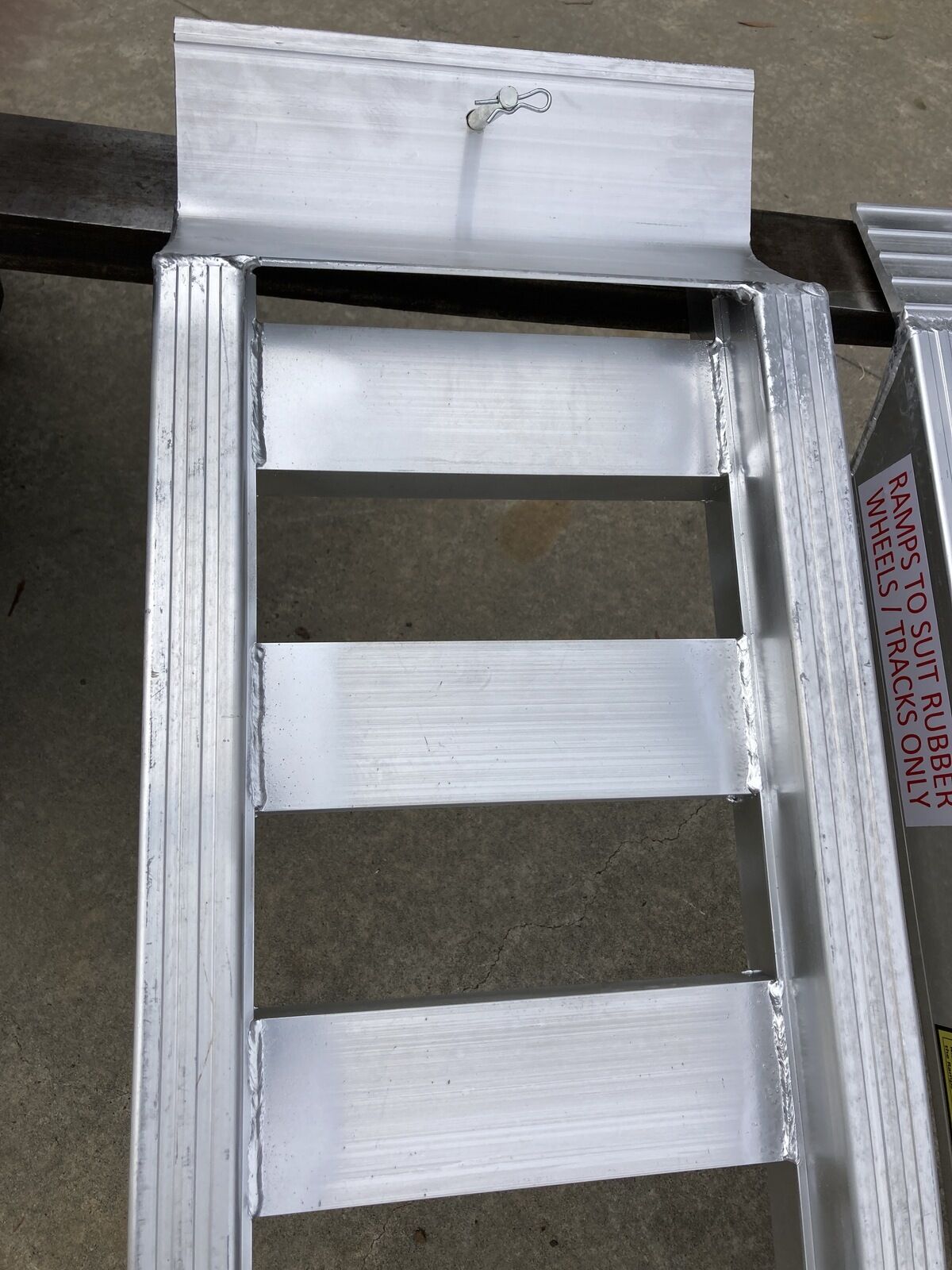

  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 3500
Inner Width (mm) :290
Outer Width (mm) :380
Height of Ramp Profile (mm):122
Rung Type: Flat
Max Load Height (mm): 1200
Weight per Ramp (Kg): 32.5

Loading Capacity per Pair (Kg)  3000



SKUHDR.350.29.30
BrandRamptec
Length3.5M
Tonne3T
Shipping Weight65.0000kg
Shipping Width0.380m
Shipping Height0.240m
Shipping Length3.500m
Shipping Cubic0.319200000m3
