SKU - HDR.3500.500.3

Features:

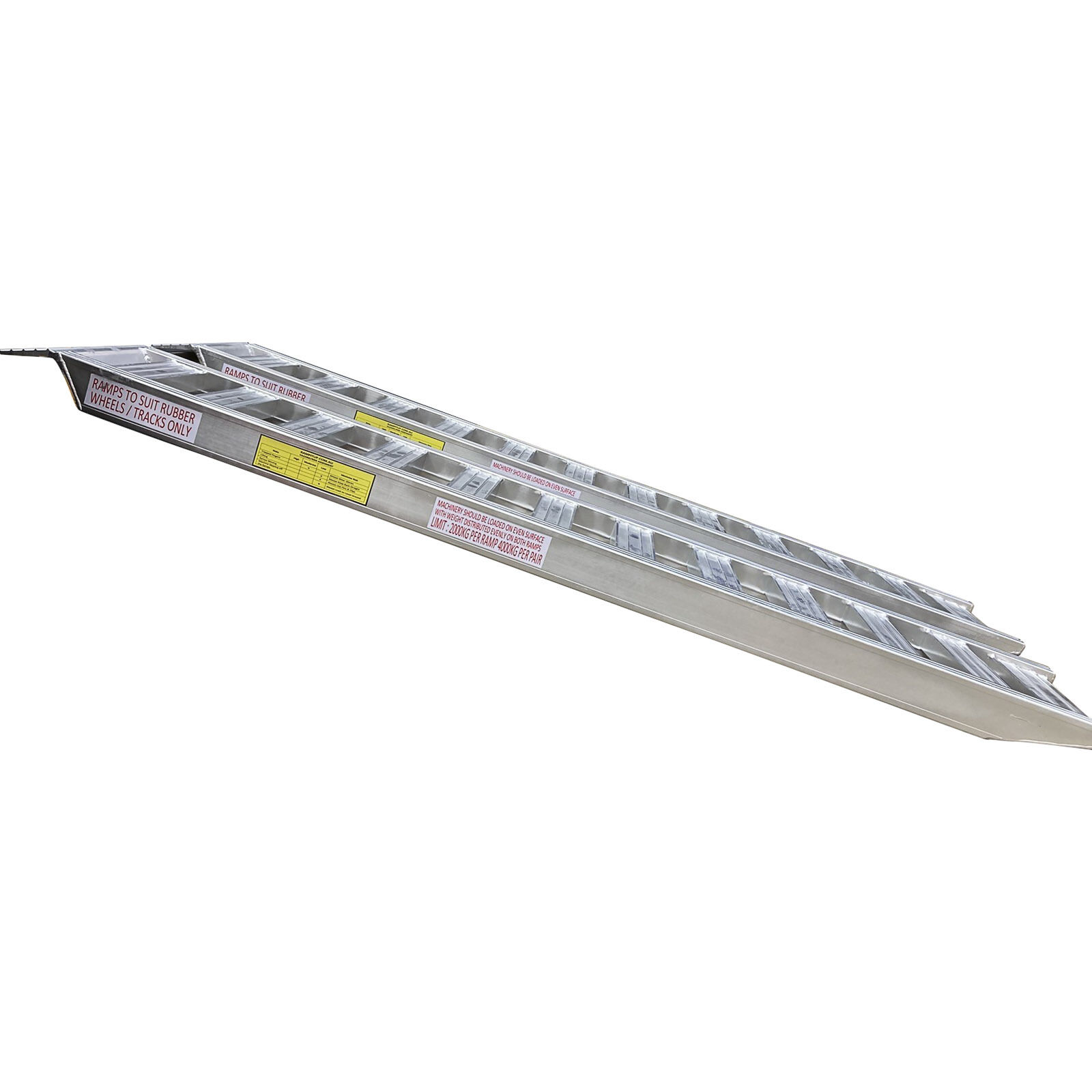

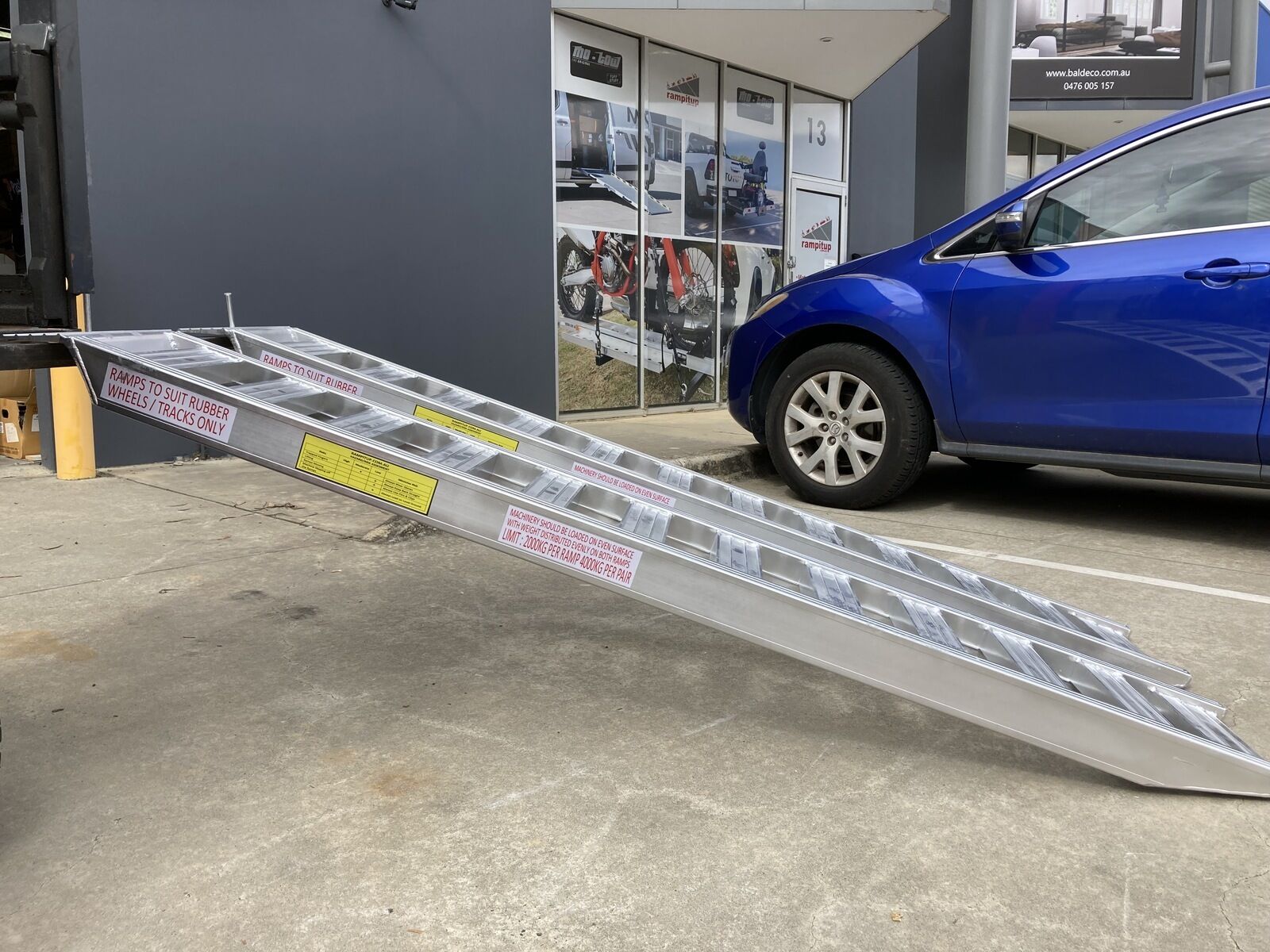

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

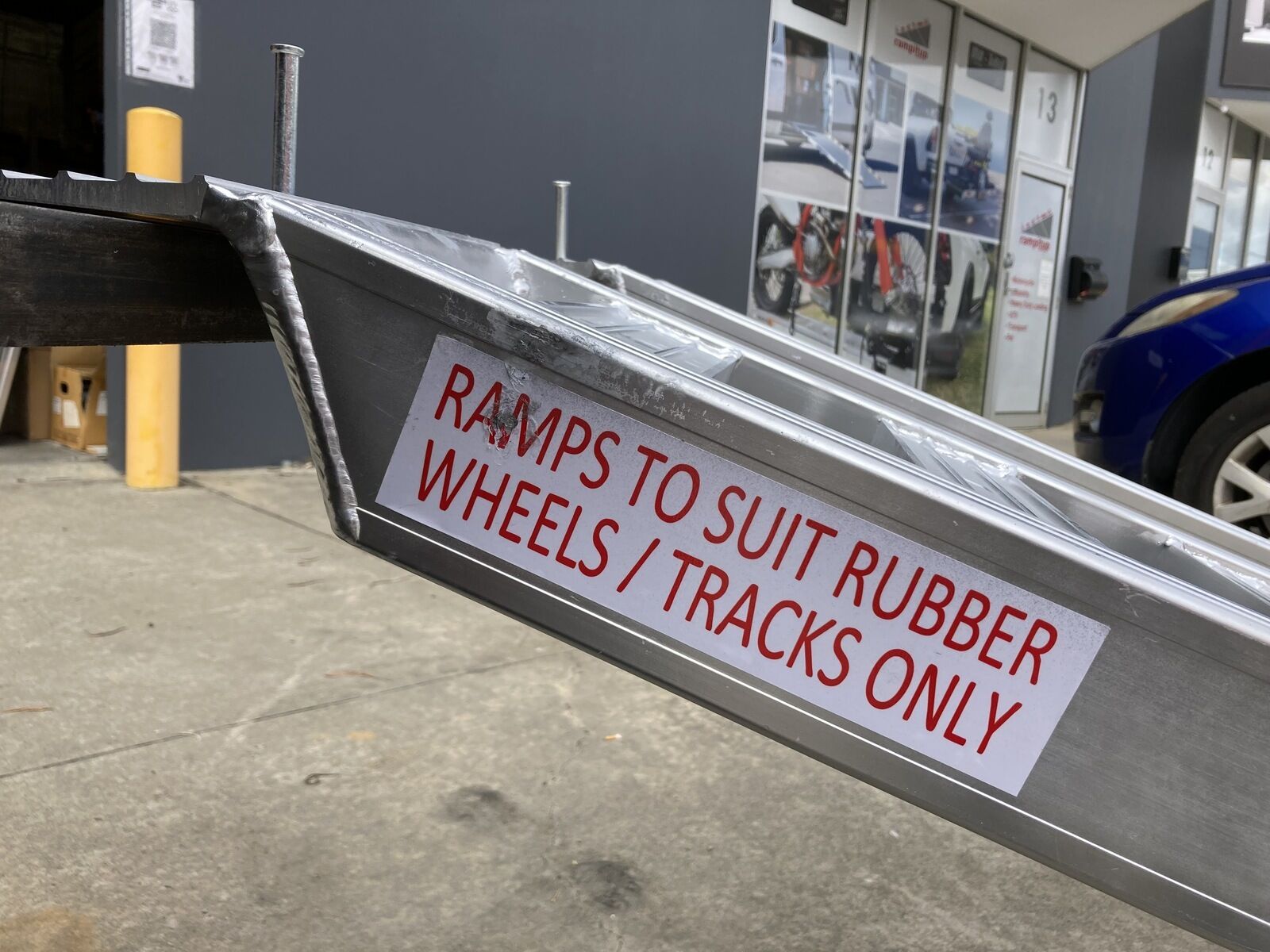

  • These ramps are suited to rubber tracked machines
  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 3500

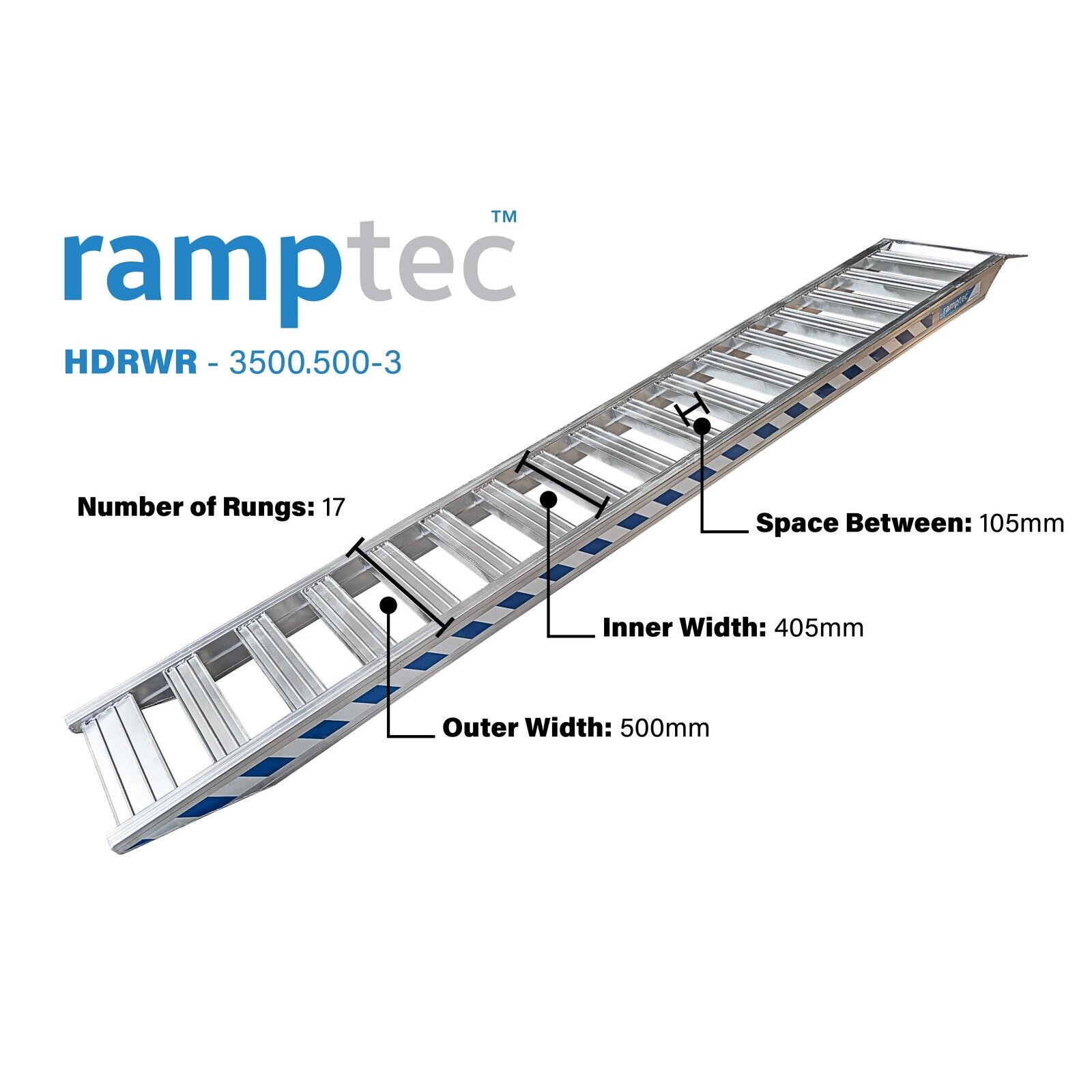

Inner Width (mm) :405
Outer Width (mm) :500
Height of Ramp Profile (mm):122

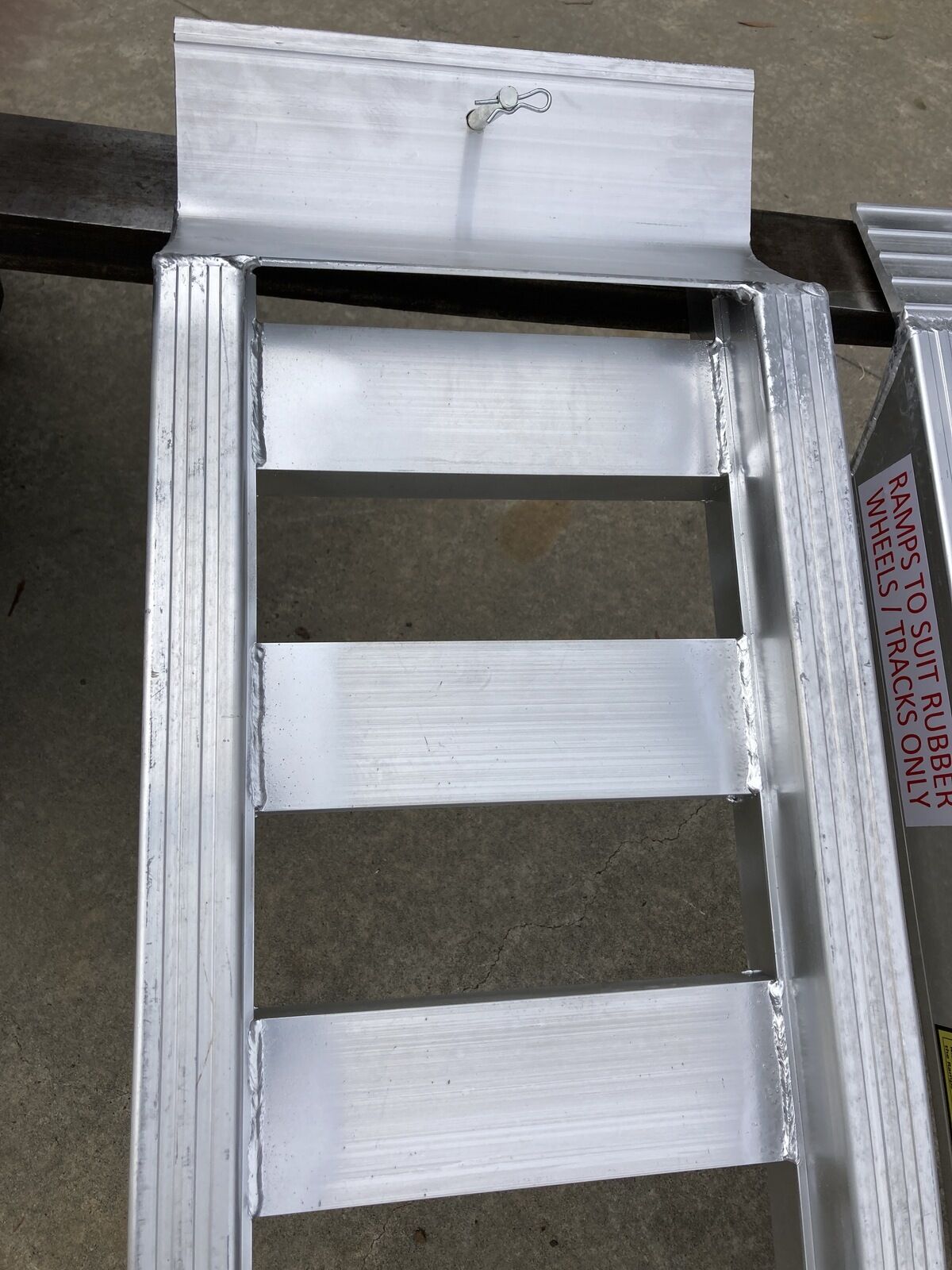

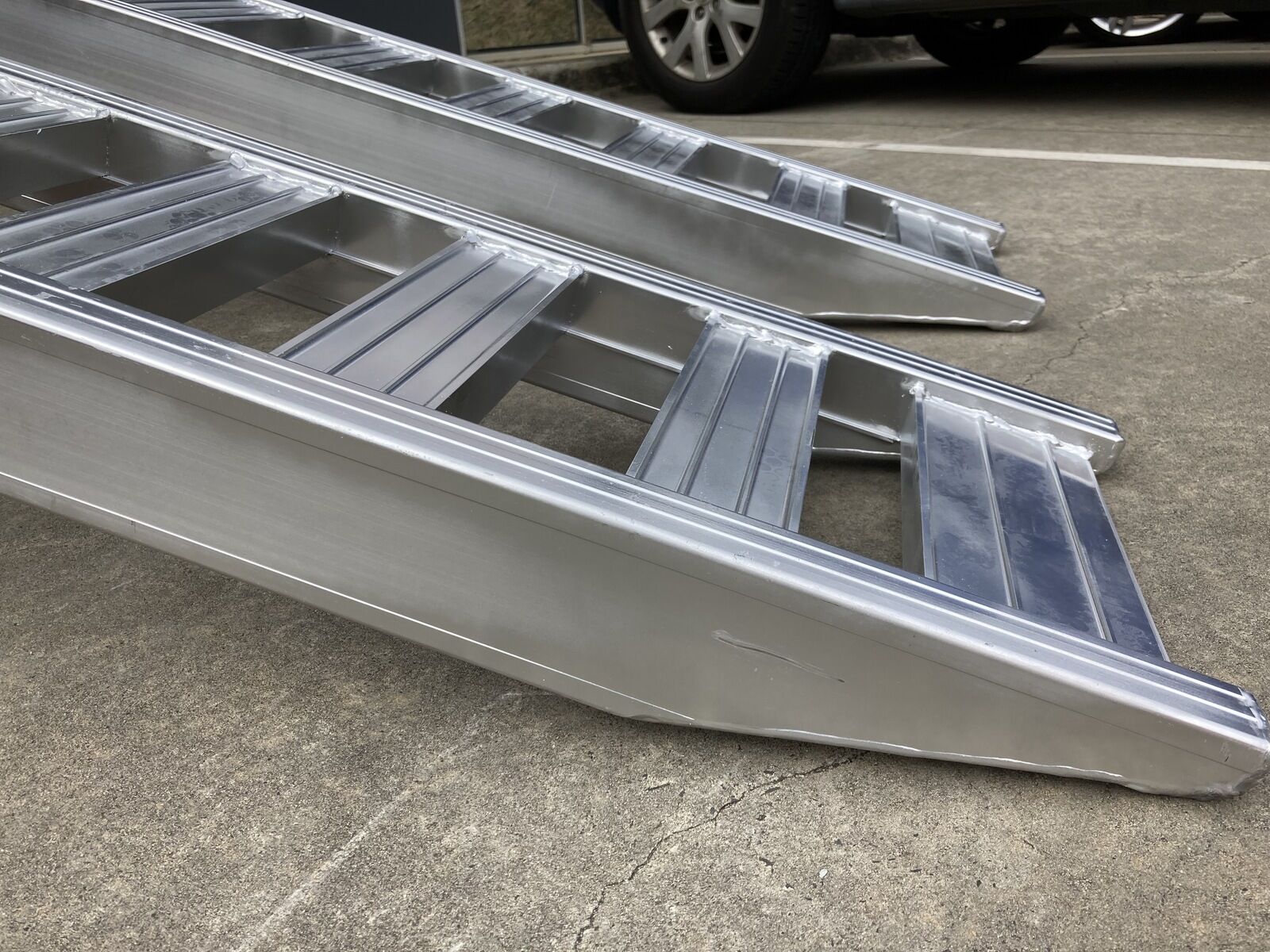

Rung Type: Flat
Rung Spacing (mm): 105
Max Load Height (mm): 810
Weight per Ramp (Kg): 36
Load Capacity per pair (Kg): 3000

SKUHDR.3500.500.3
BrandRamptec
Length3.5M
Tonne3T
Shipping Weight72.0000kg
Shipping Width0.500m
Shipping Height0.240m
Shipping Length3.500m
Shipping Cubic0.420000000m3
