SKU - HDR240.30.40

Features:

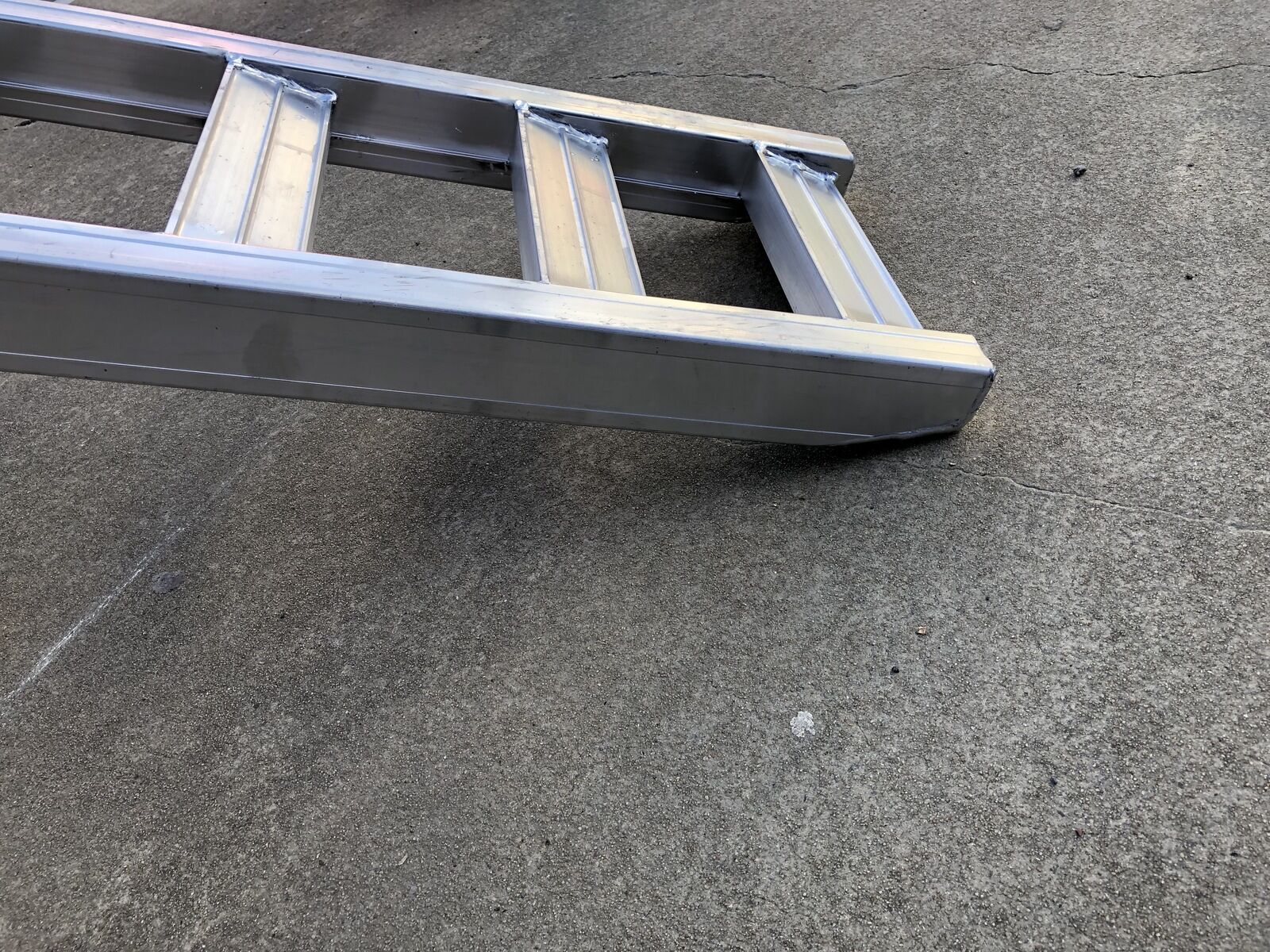

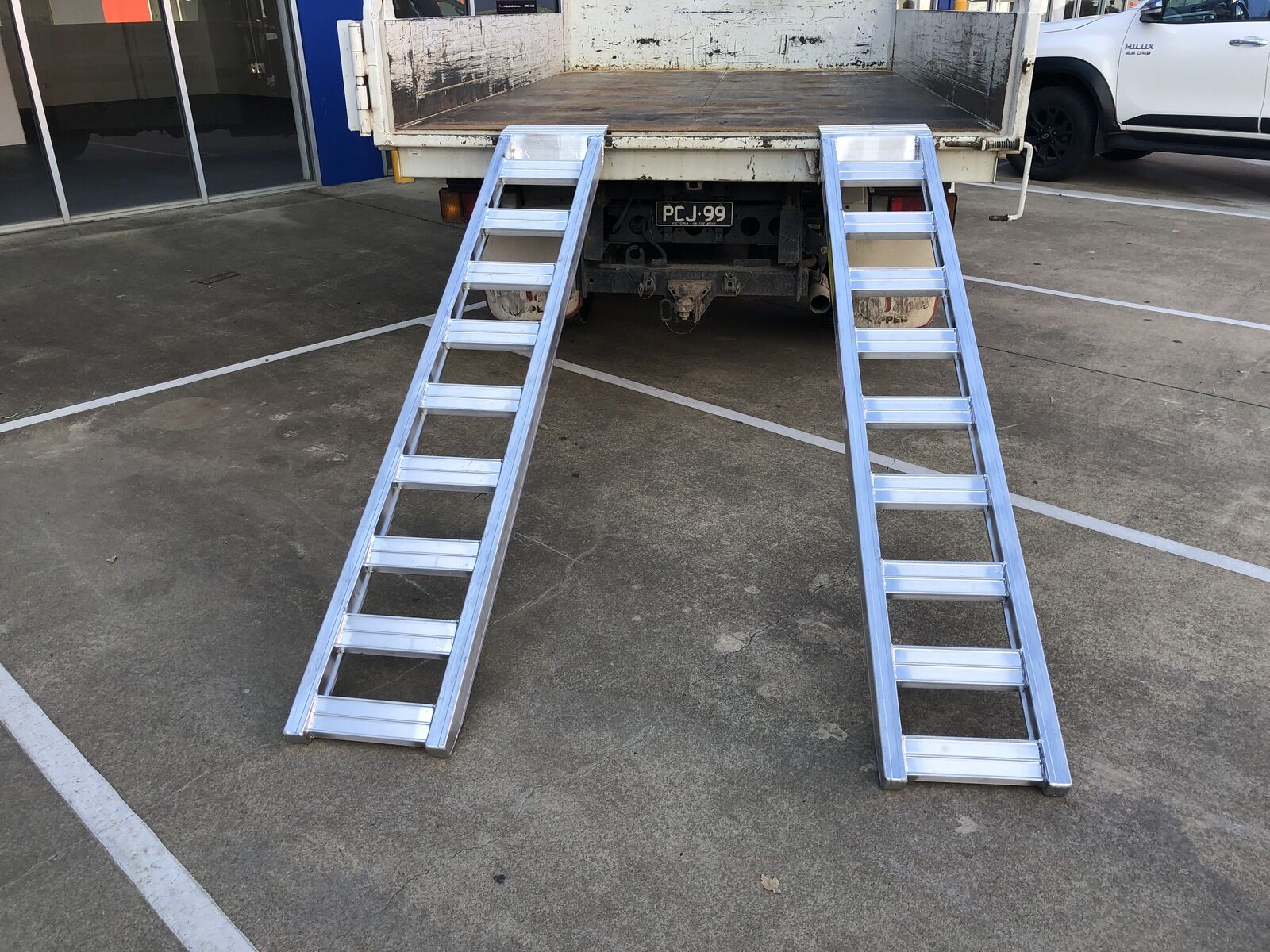

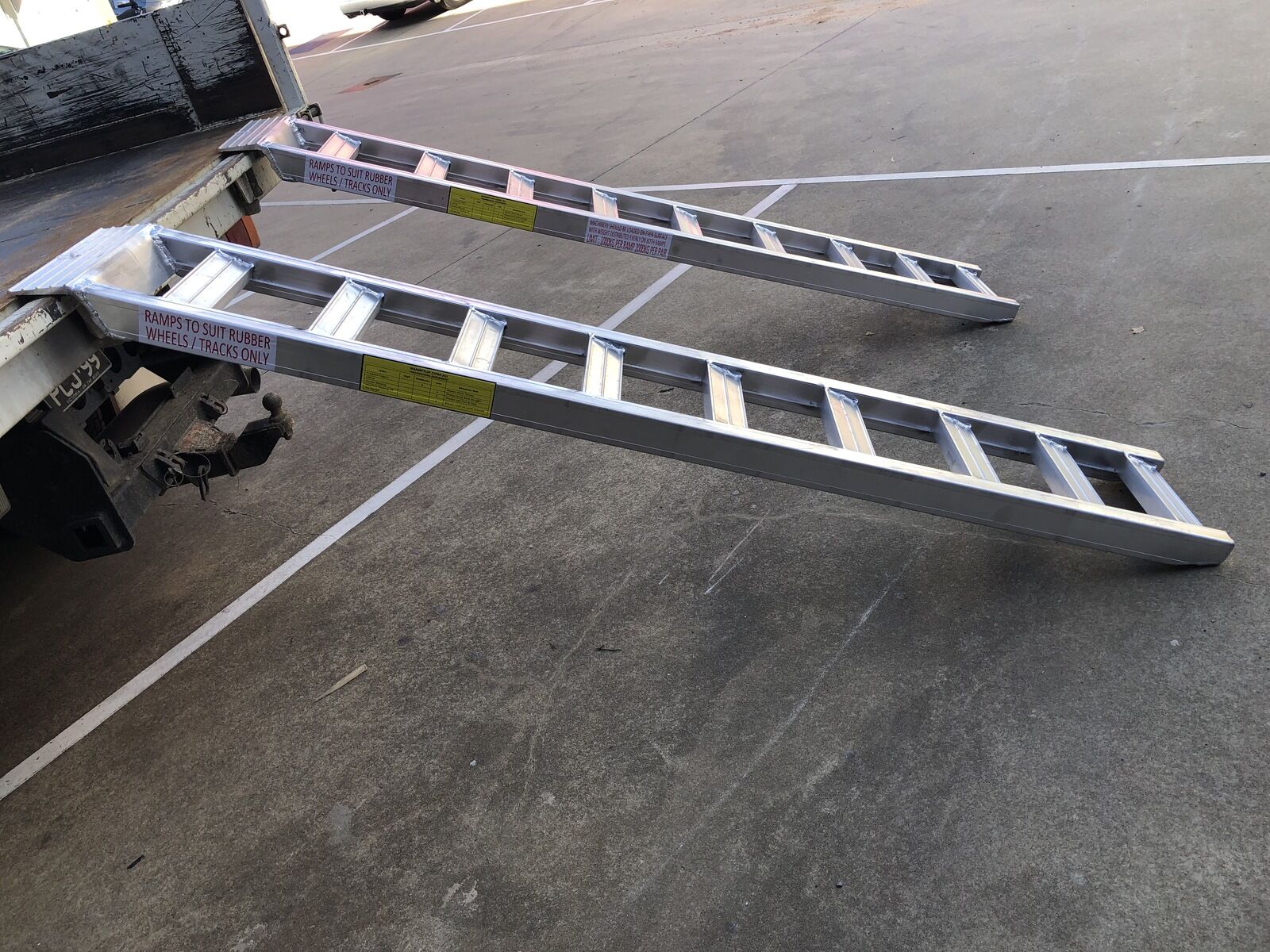

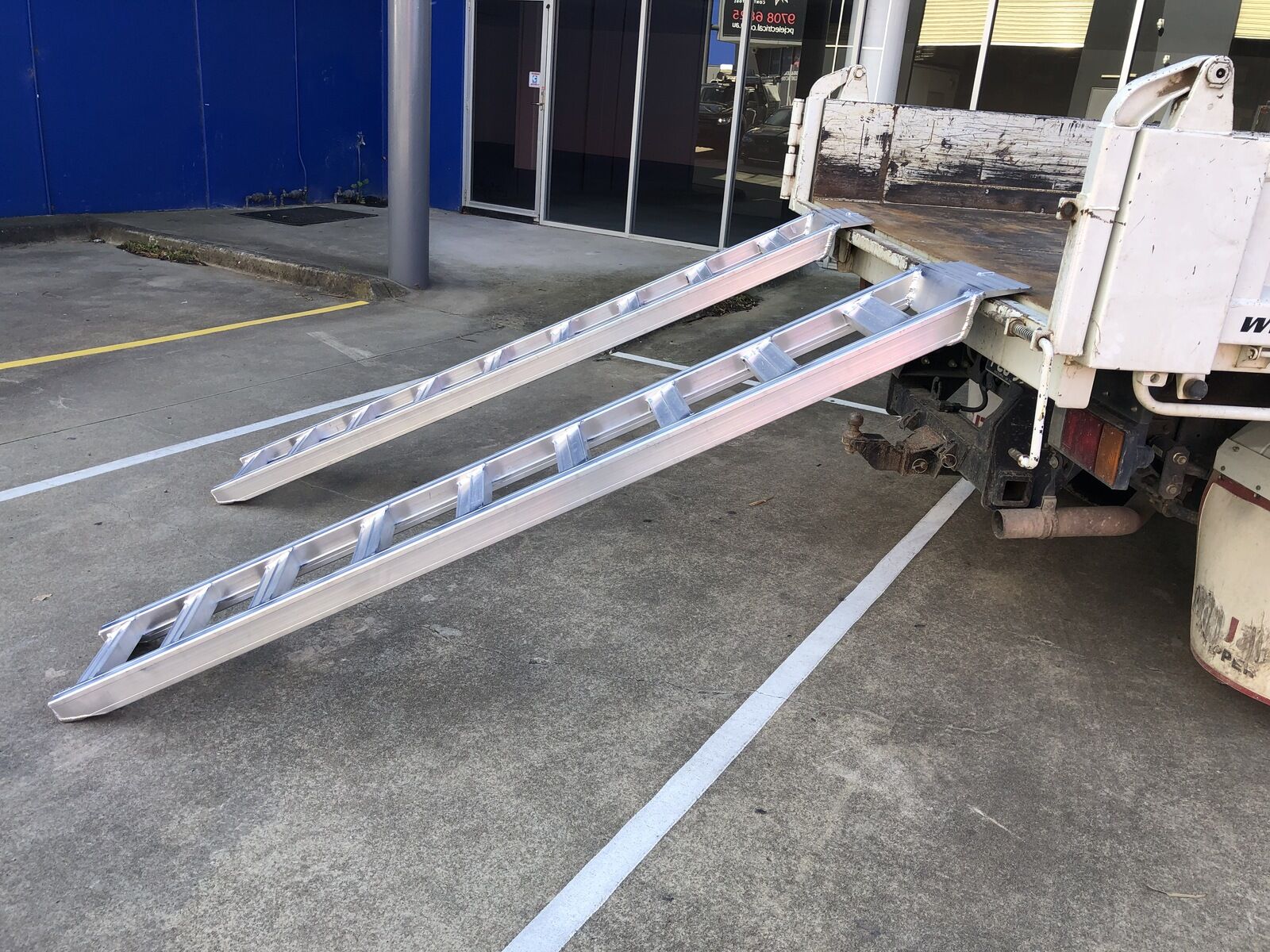

These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

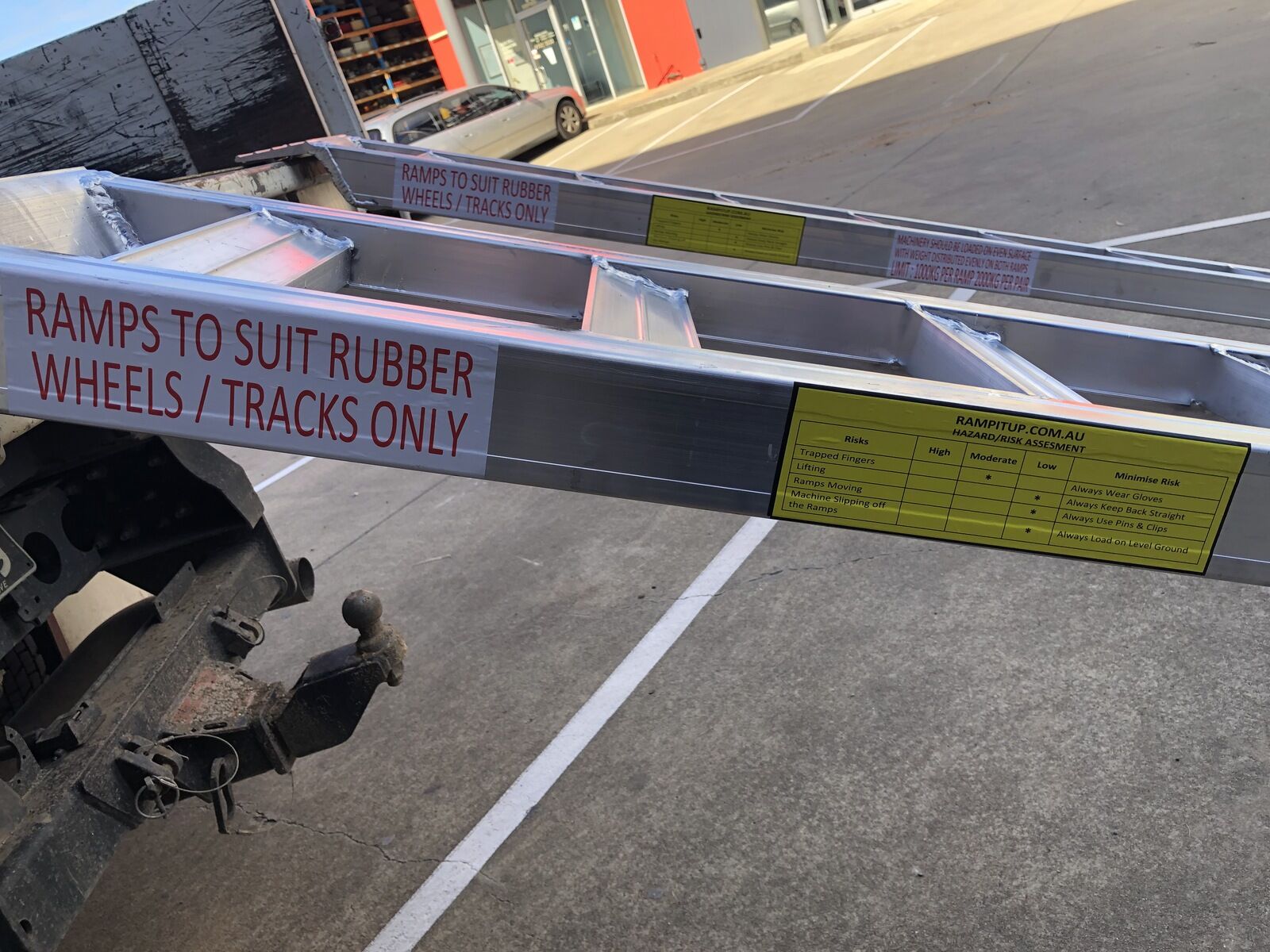

These ramps are suited to rubber tracked machines only
The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 2400
Inner Width (mm) :300
Outer Width (mm) :380
Height of Ramp Profile (mm):106

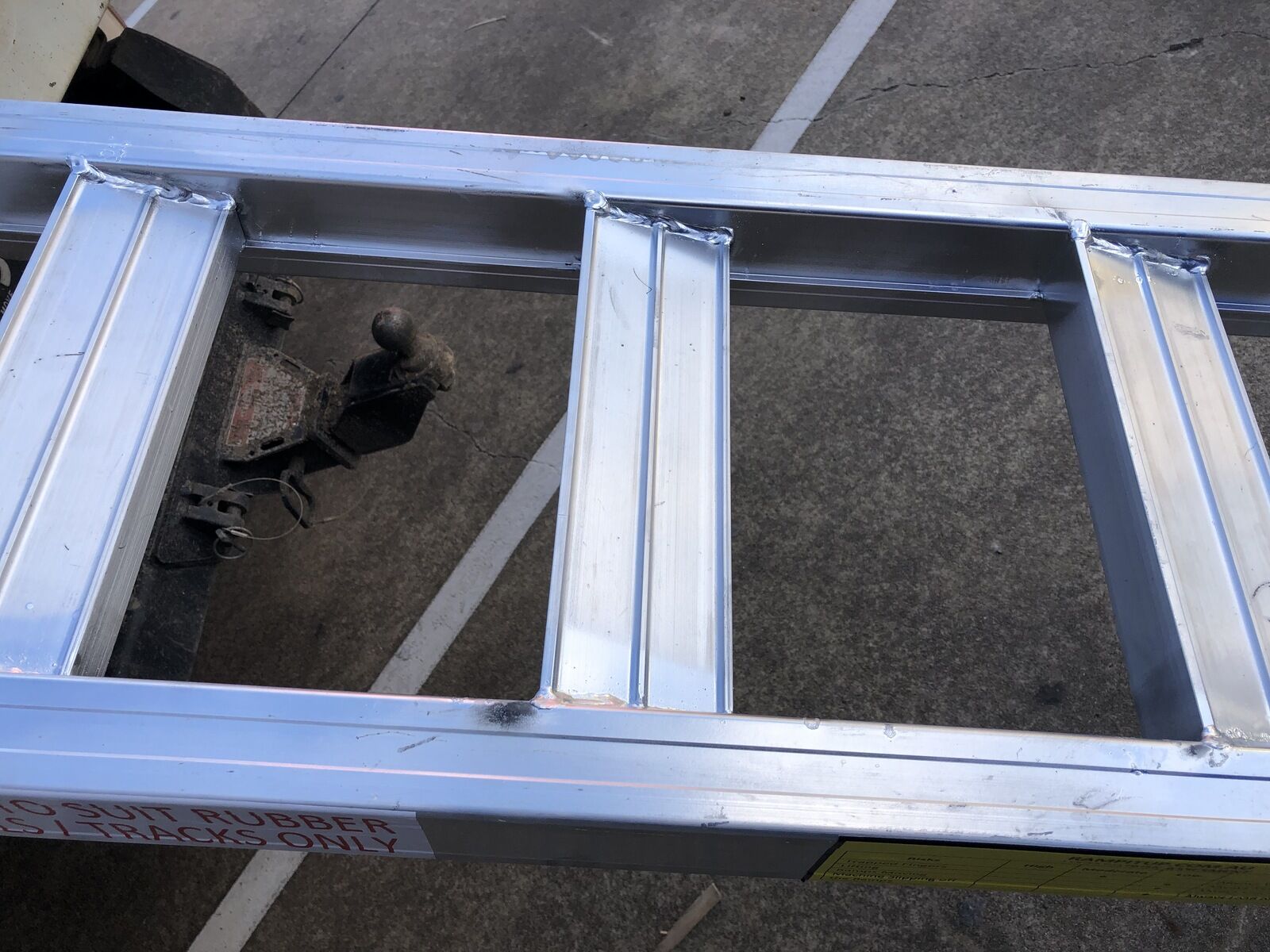

Rung Type: Angle
Max Load Height (mm): 720
Weight per Ramp (Kg): 17.5
Load Capacity per pair (Kg):4000





SKUHDR240.30.40
BrandRamptec
Length2.4M
Tonne4T
Shipping Weight35.0000kg
Shipping Width0.380m
Shipping Height0.220m
Shipping Length2.400m
Shipping Cubic0.200640000m3
