SKU - HDR.2400.450.4

Features:

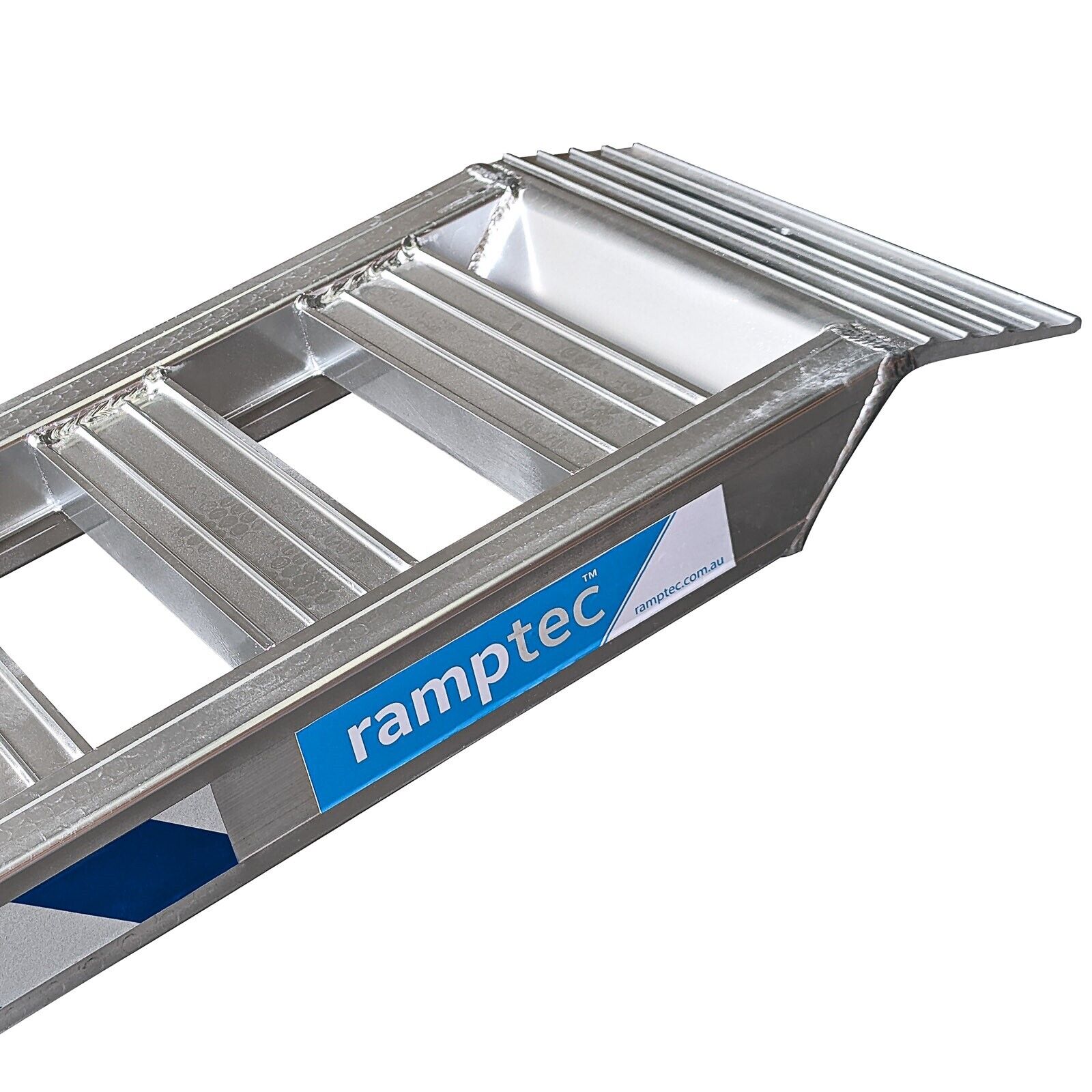

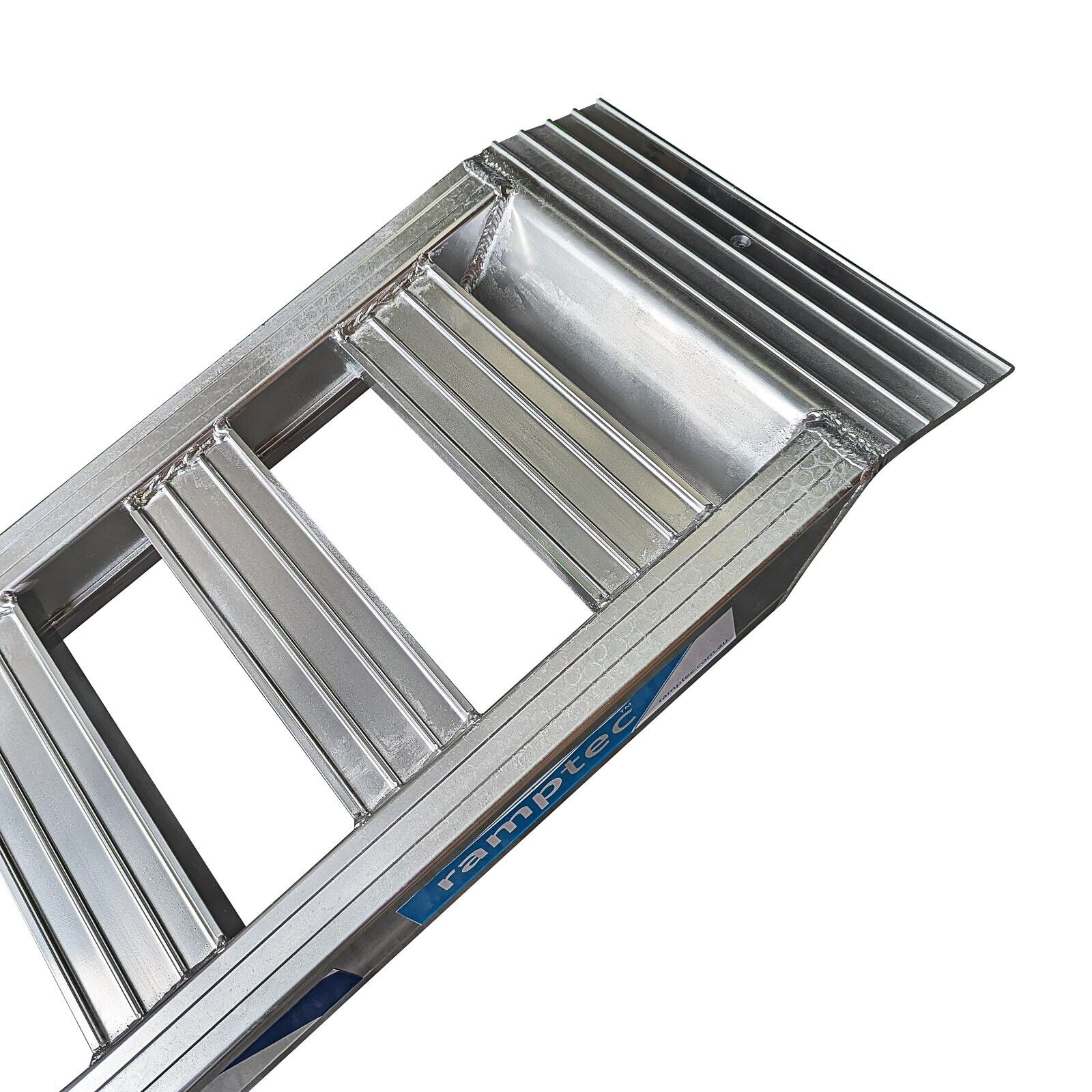

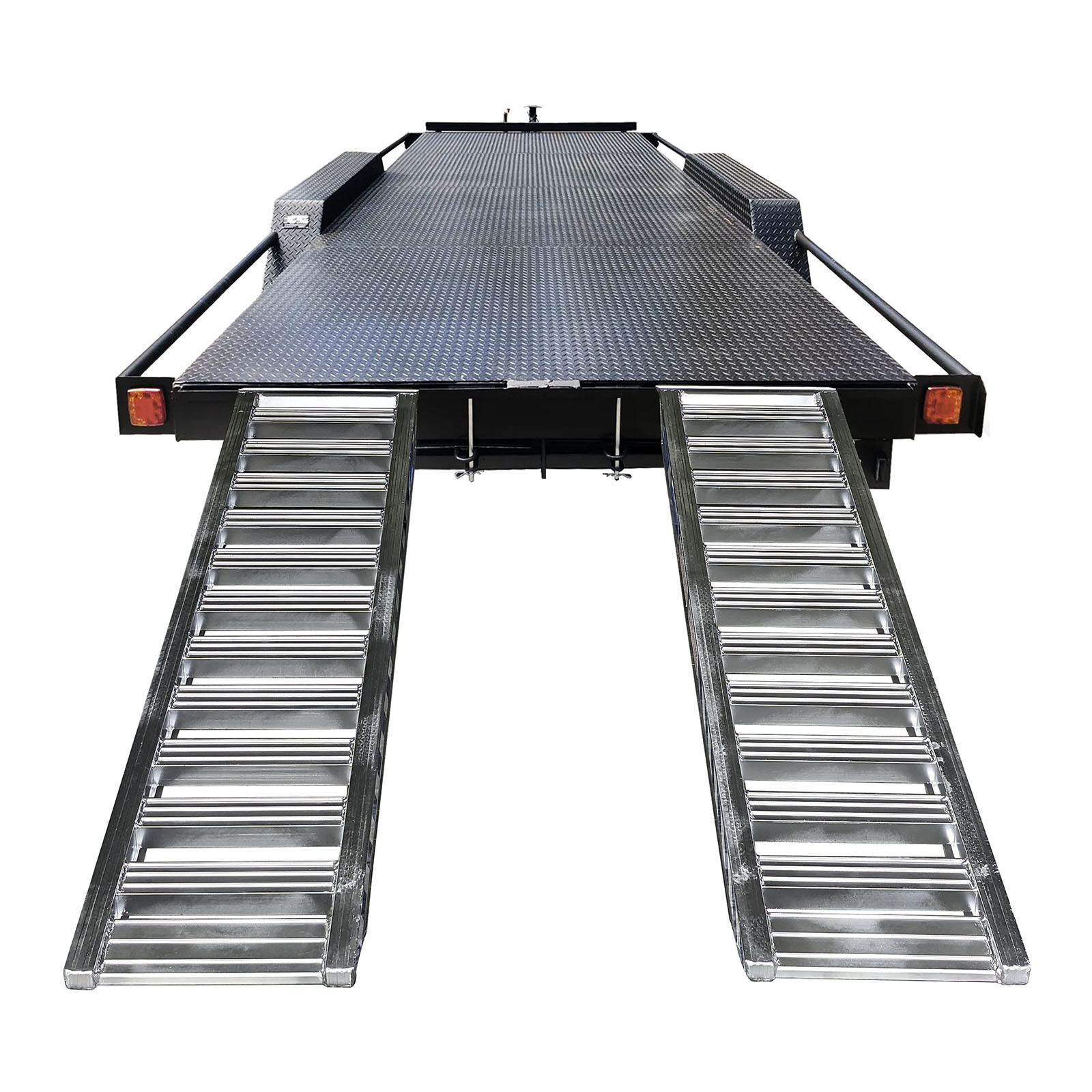

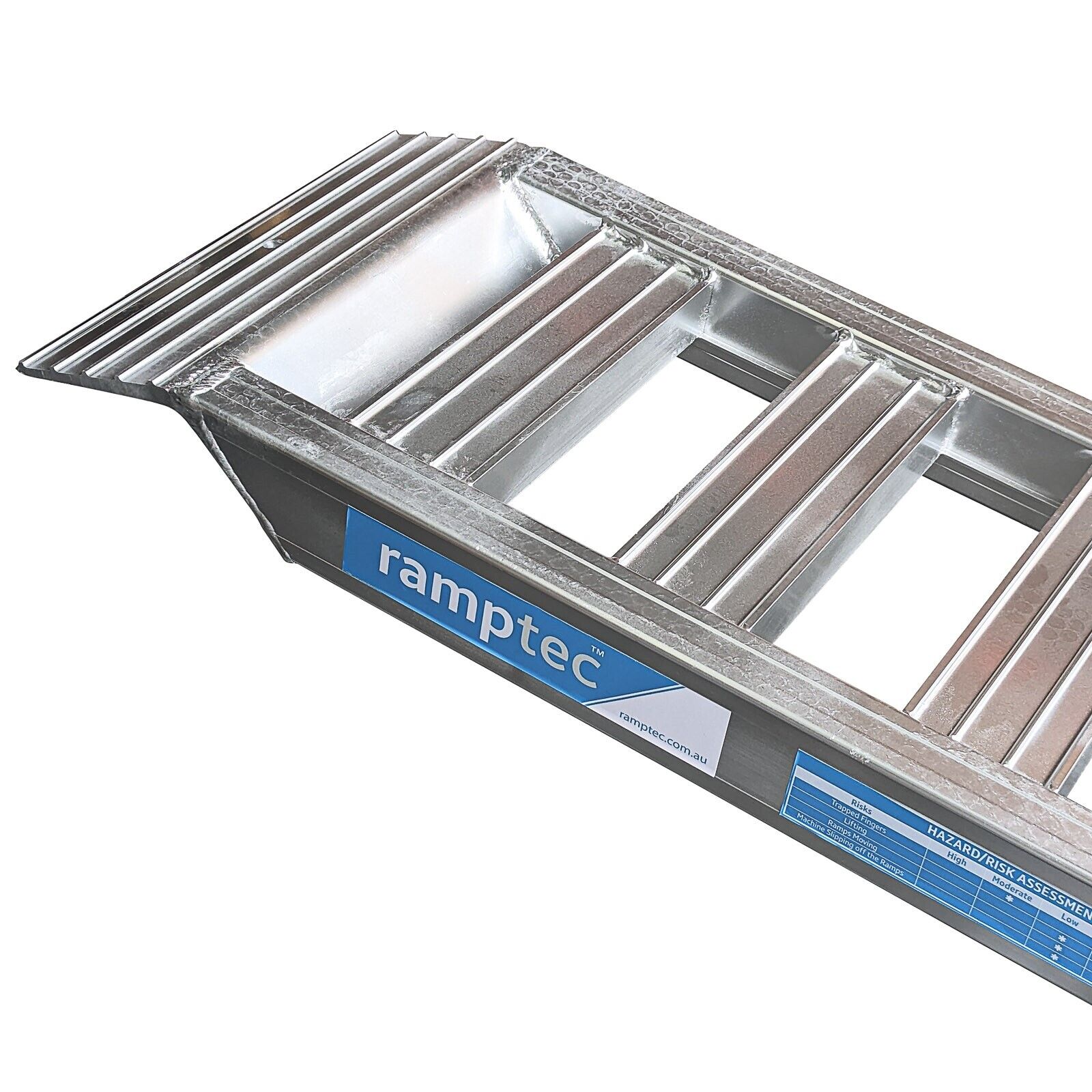

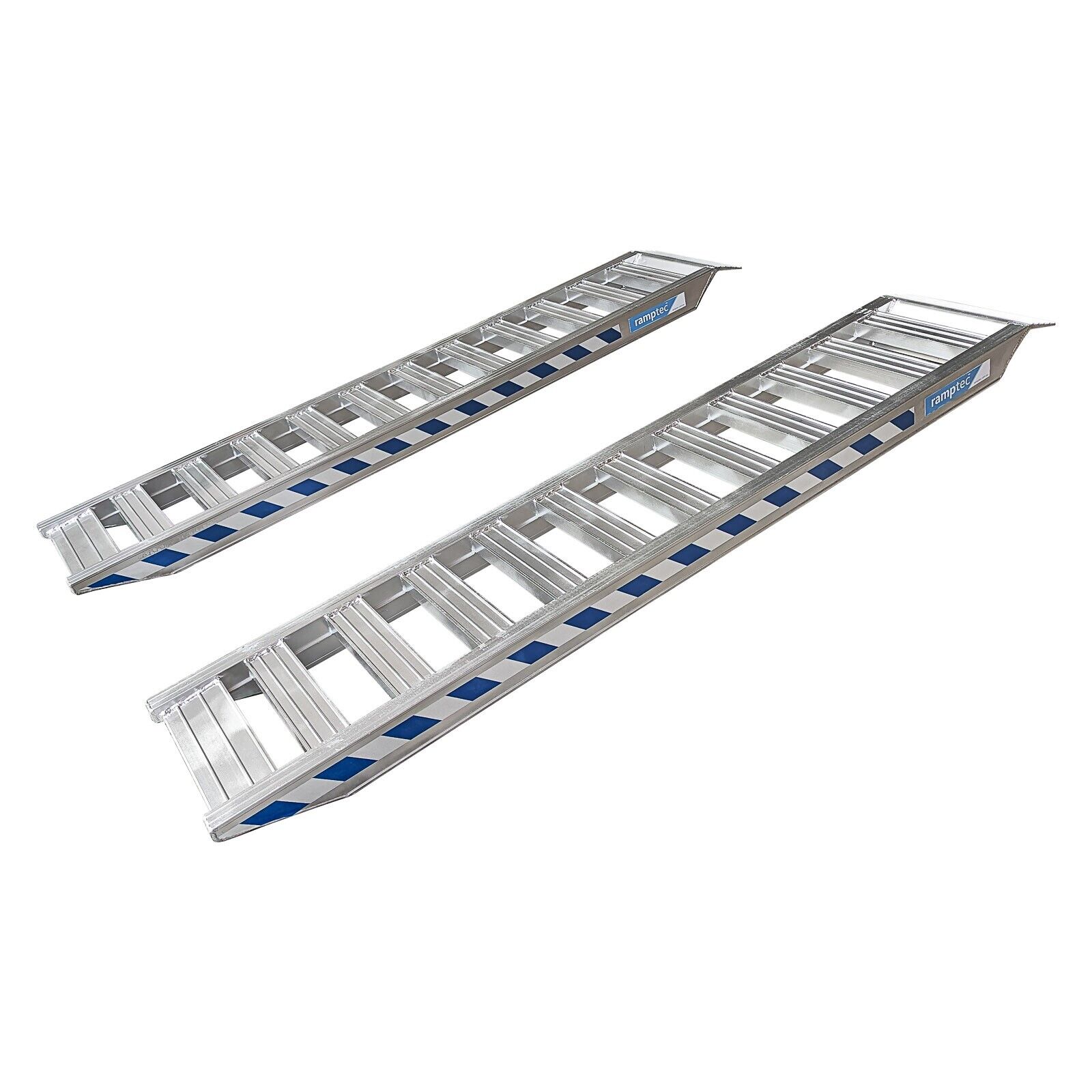

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.
  • These ramps are suited to rubber tracked machines
  • The connecting plate and pin ensure maximum stability and safety

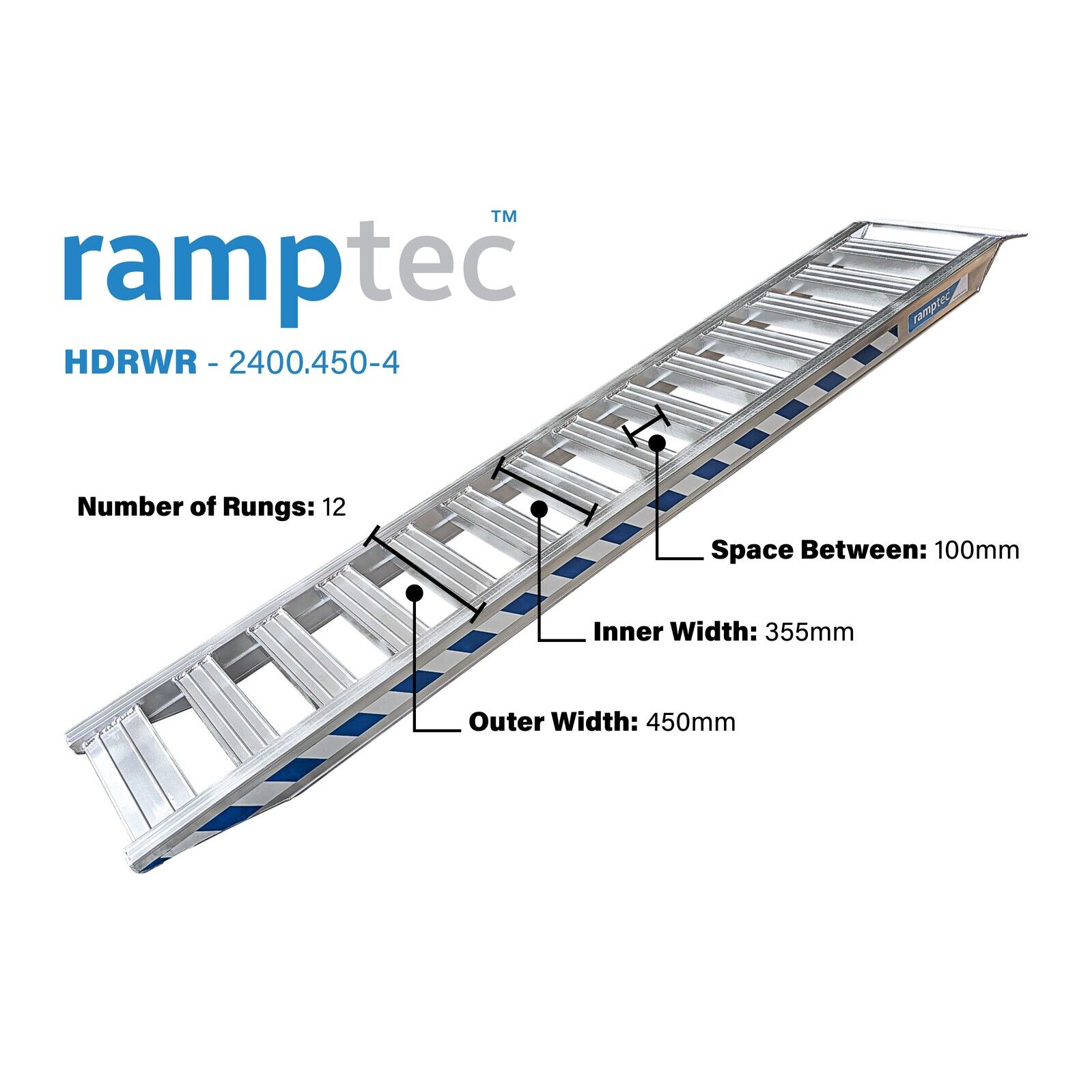

Specifications:

Length (mm): 2400
Inner Width (mm) :355
Outer Width (mm) :450
Height of Ramp Profile (mm):112
Rung Type: Flat
Rung Spacing (mm) : 100
Max Load Height (mm): 810
Weight per Ramp (Kg): 19
Load Capacity per pair (Kg): 4000

SKUHDR.2400.450.4
BrandRamptec
Length2.4M
Tonne4T
Shipping Weight38.0000kg
Shipping Width0.450m
Shipping Height0.170m
Shipping Length2.500m
Shipping Cubic0.191250000m3
