SKU - HDR.3000.450.4

Features:

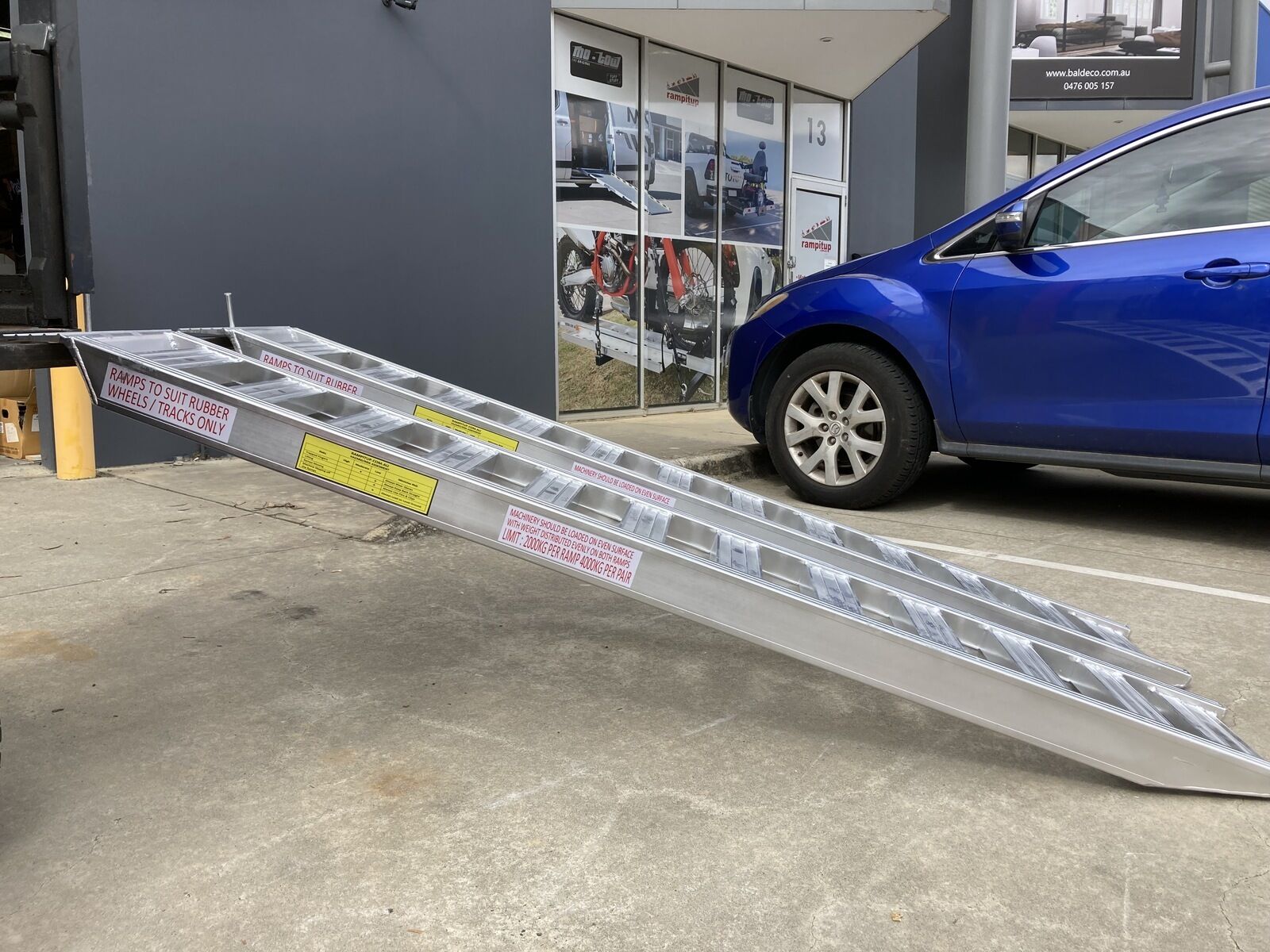

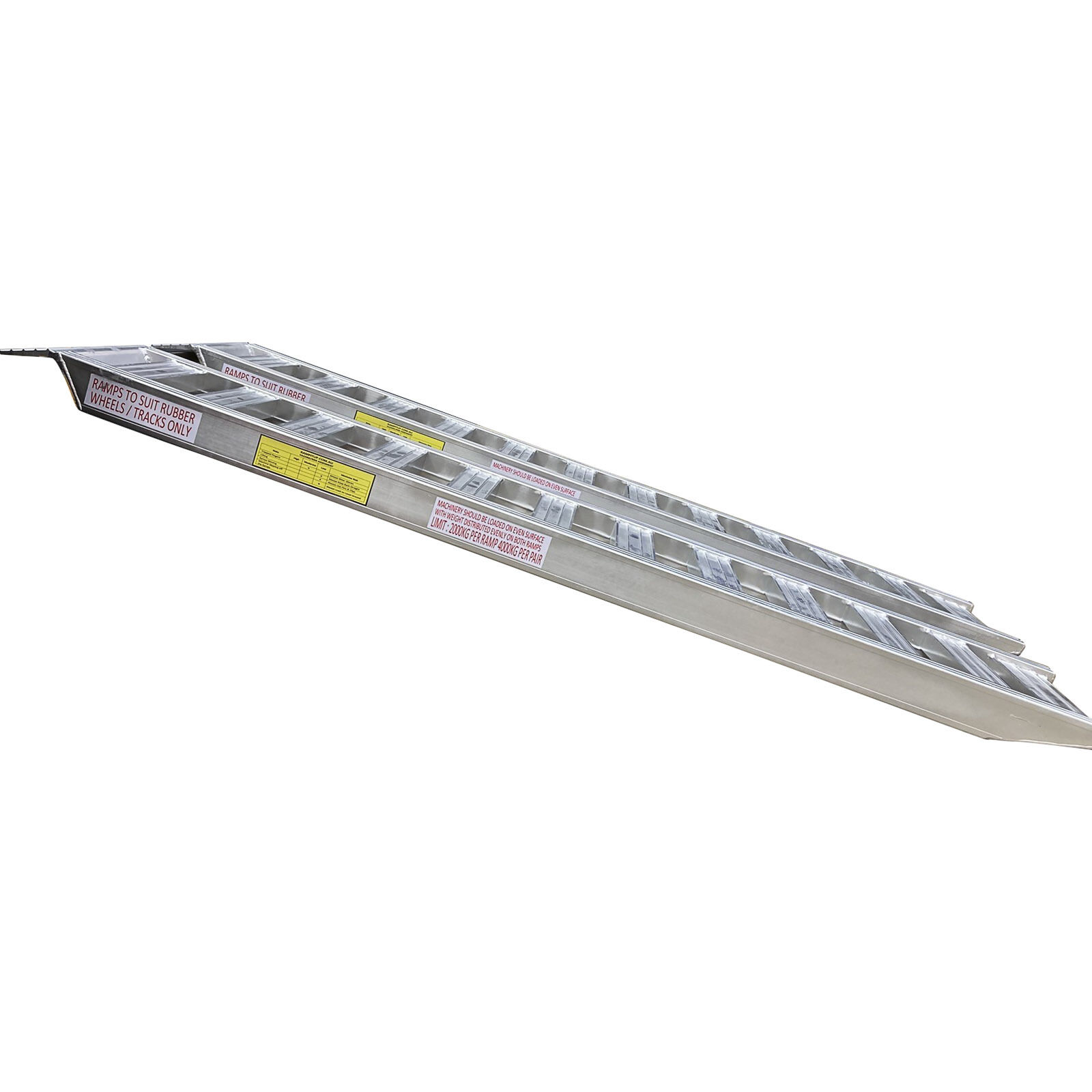

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

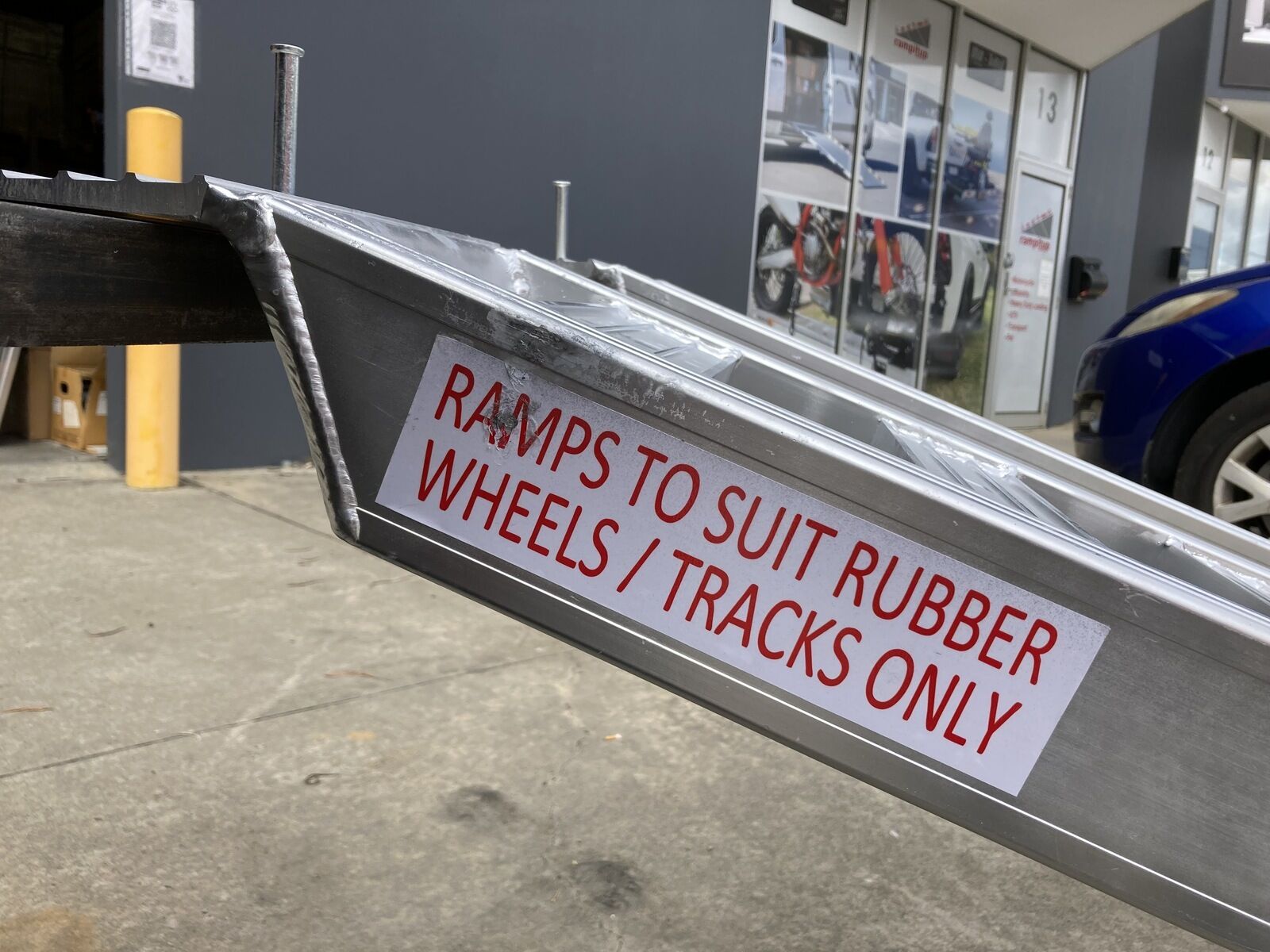

  • These ramps are suited to rubber tracked machines

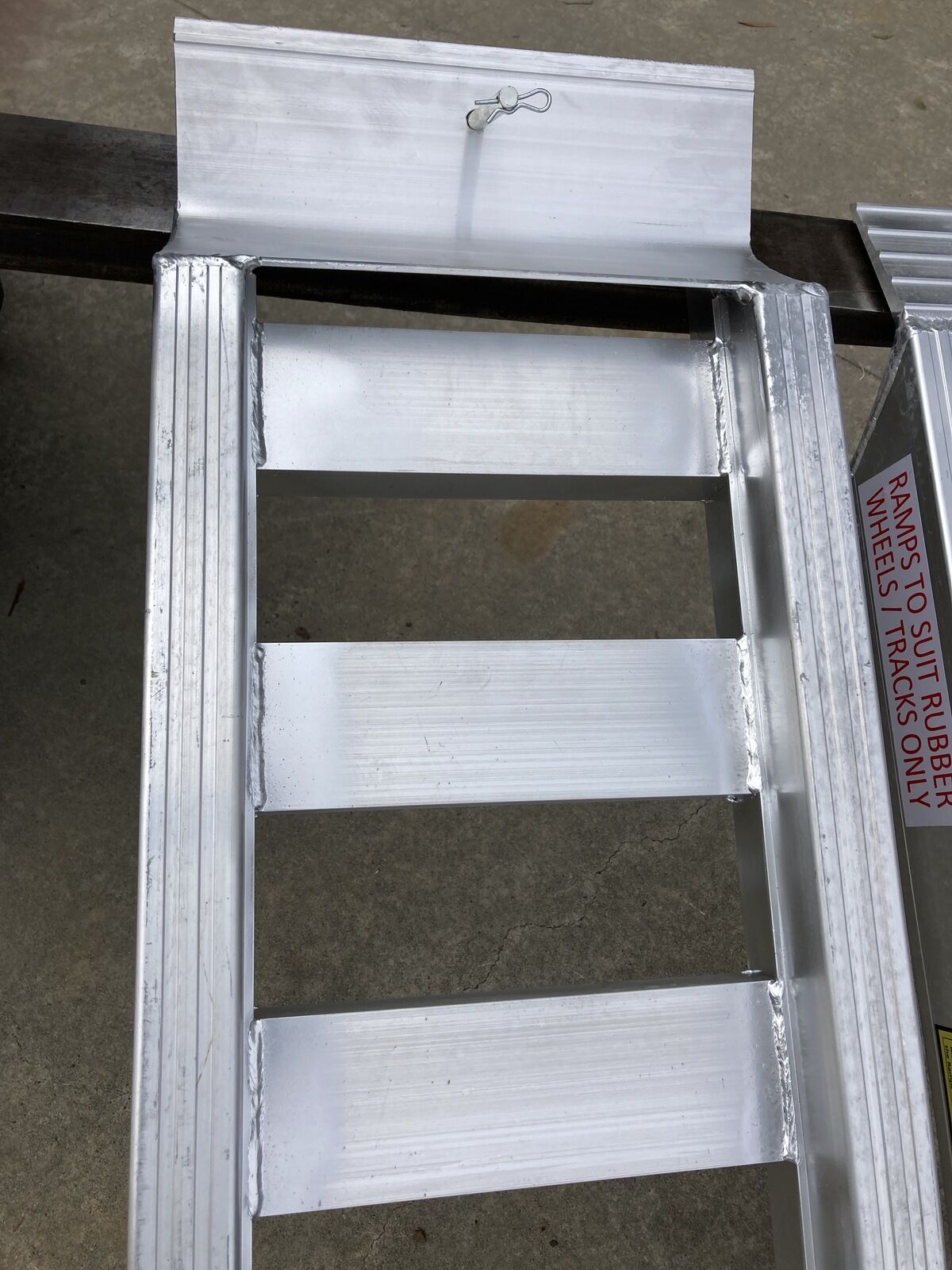

  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 3000
Inner Width (mm) :355
Outer Width (mm) :450
Height of Ramp Profile (mm):122

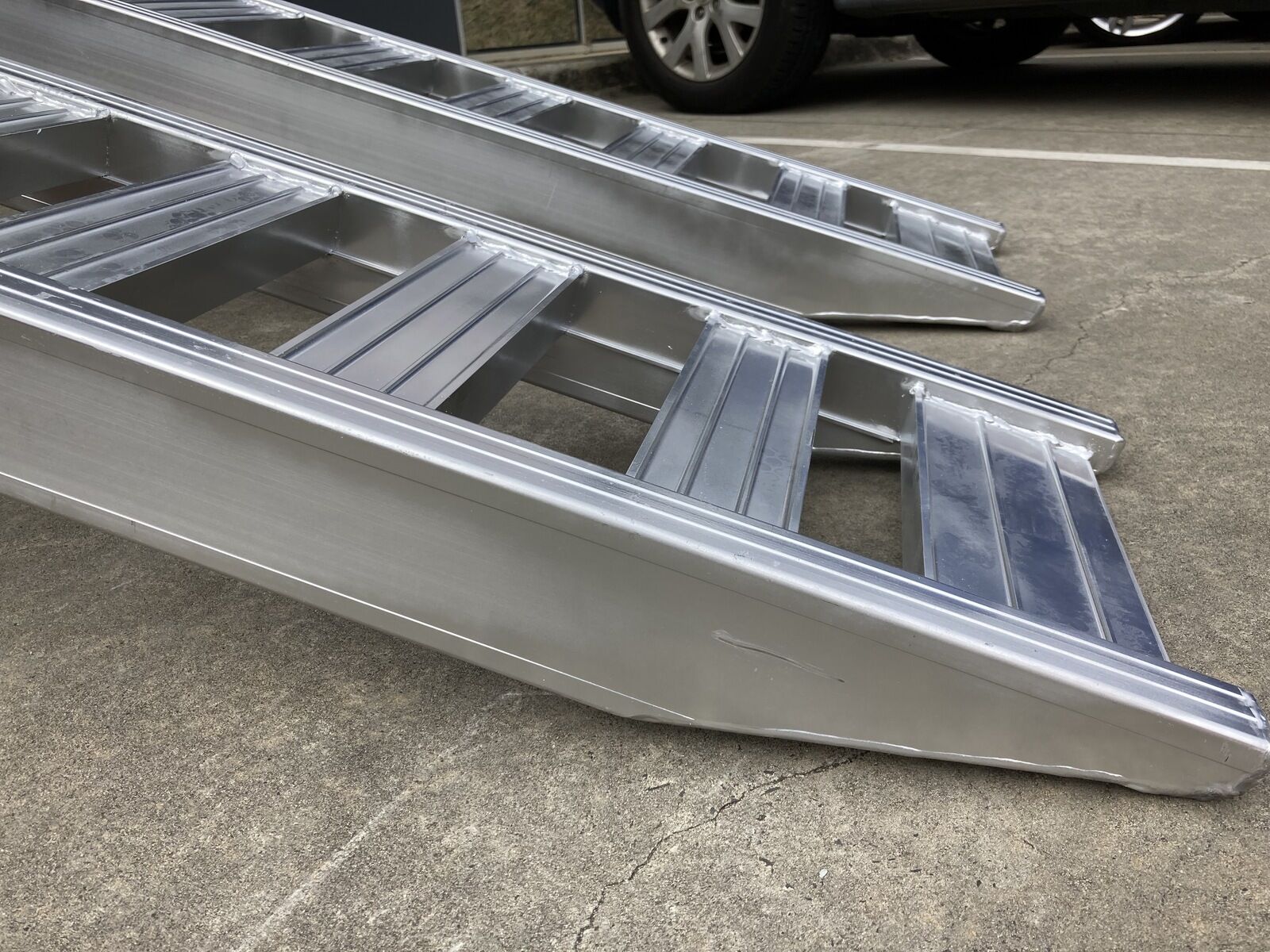

Rung Type: Flat
Rung Spacing (mm) : 100
Max Load Height (mm): 810
Weight per Ramp (Kg): 30
Load Capacity per pair (Kg): 4000

SKUHDR.3000.450.4
BrandRamptec
Length3M
Tonne4T
Shipping Weight60.0000kg
Shipping Width0.450m
Shipping Height0.240m
Shipping Length3.000m
Shipping Cubic0.324000000m3
