SKU - HDR.350.495.60S

Features:

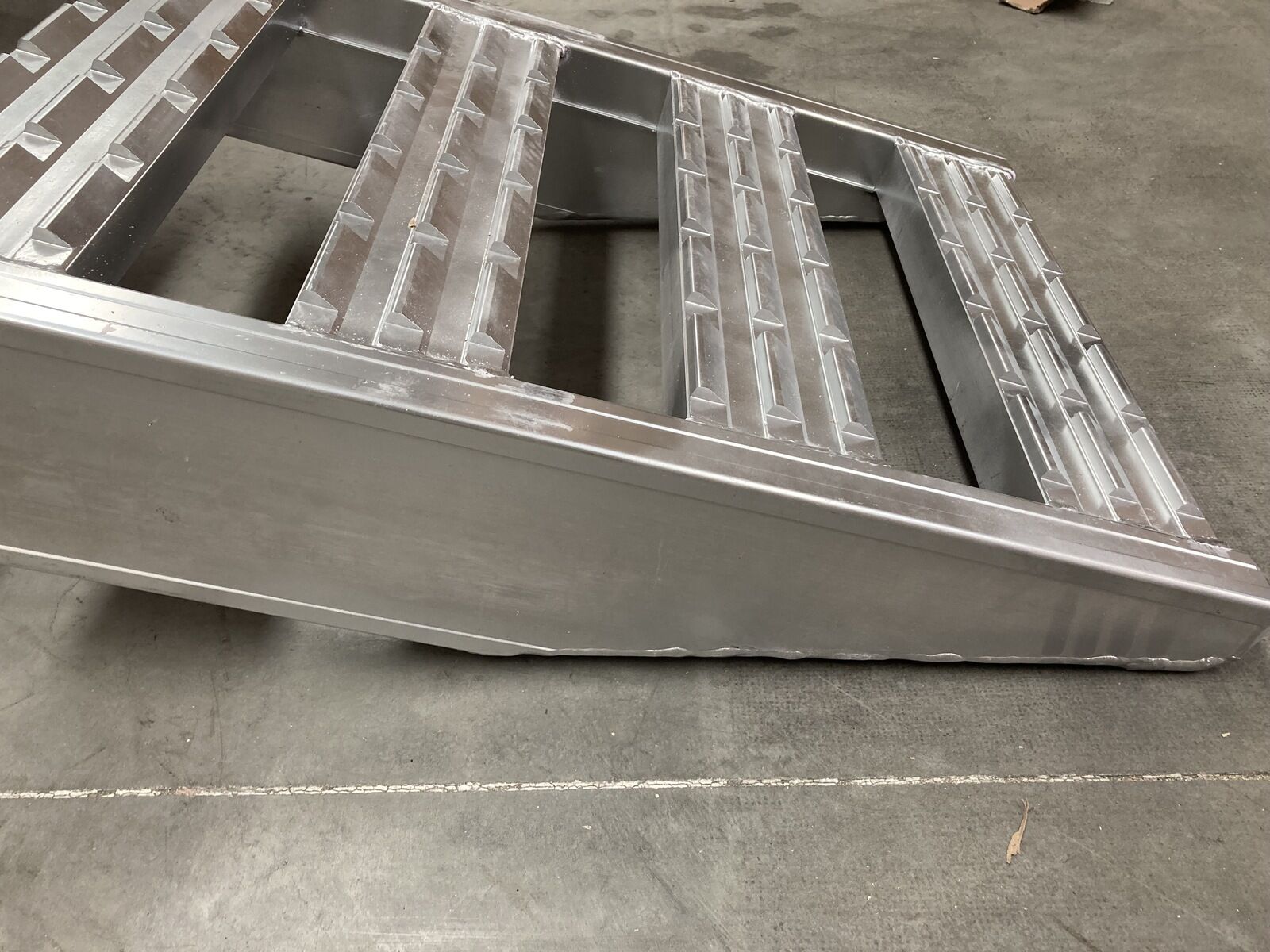

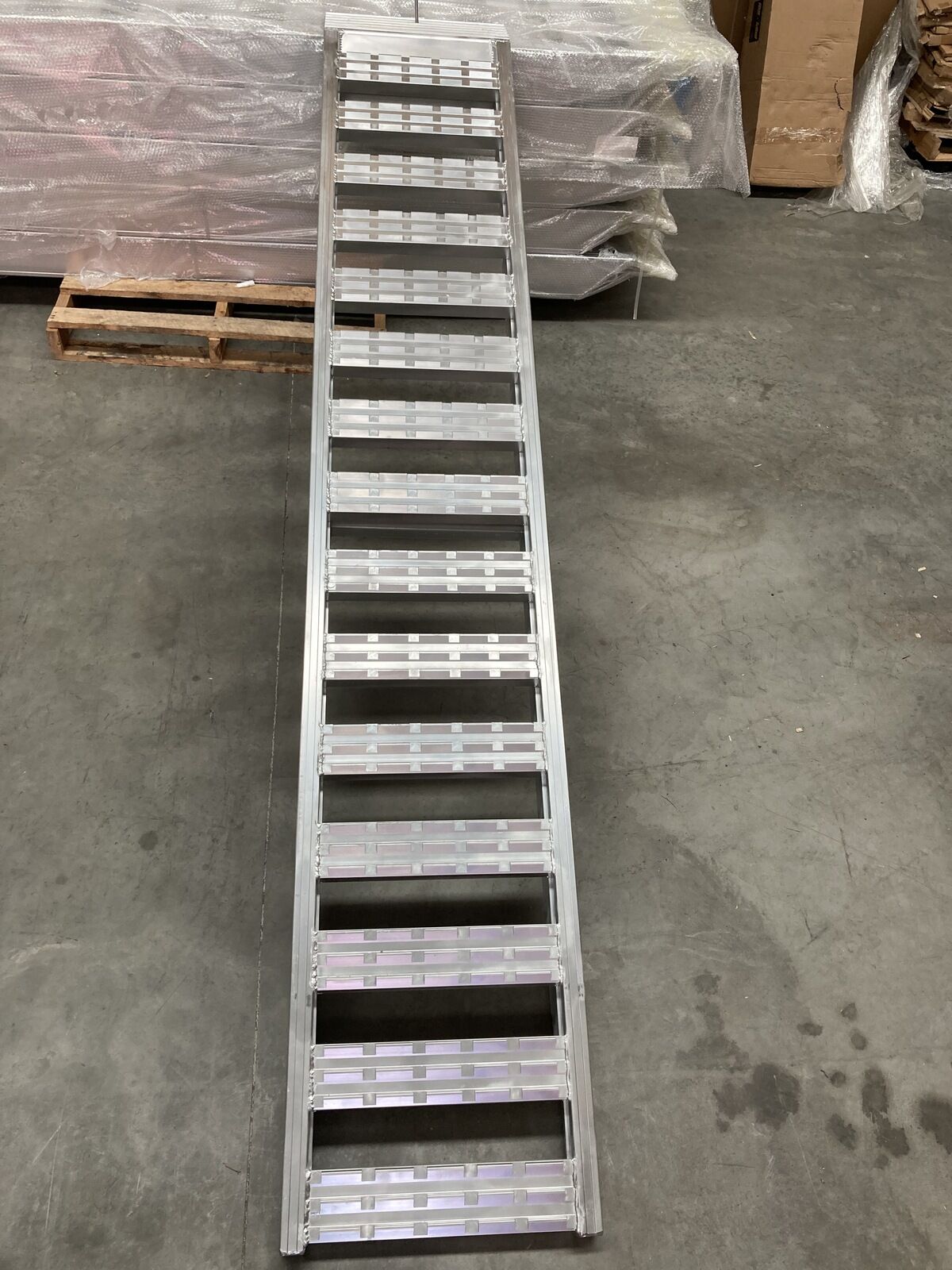

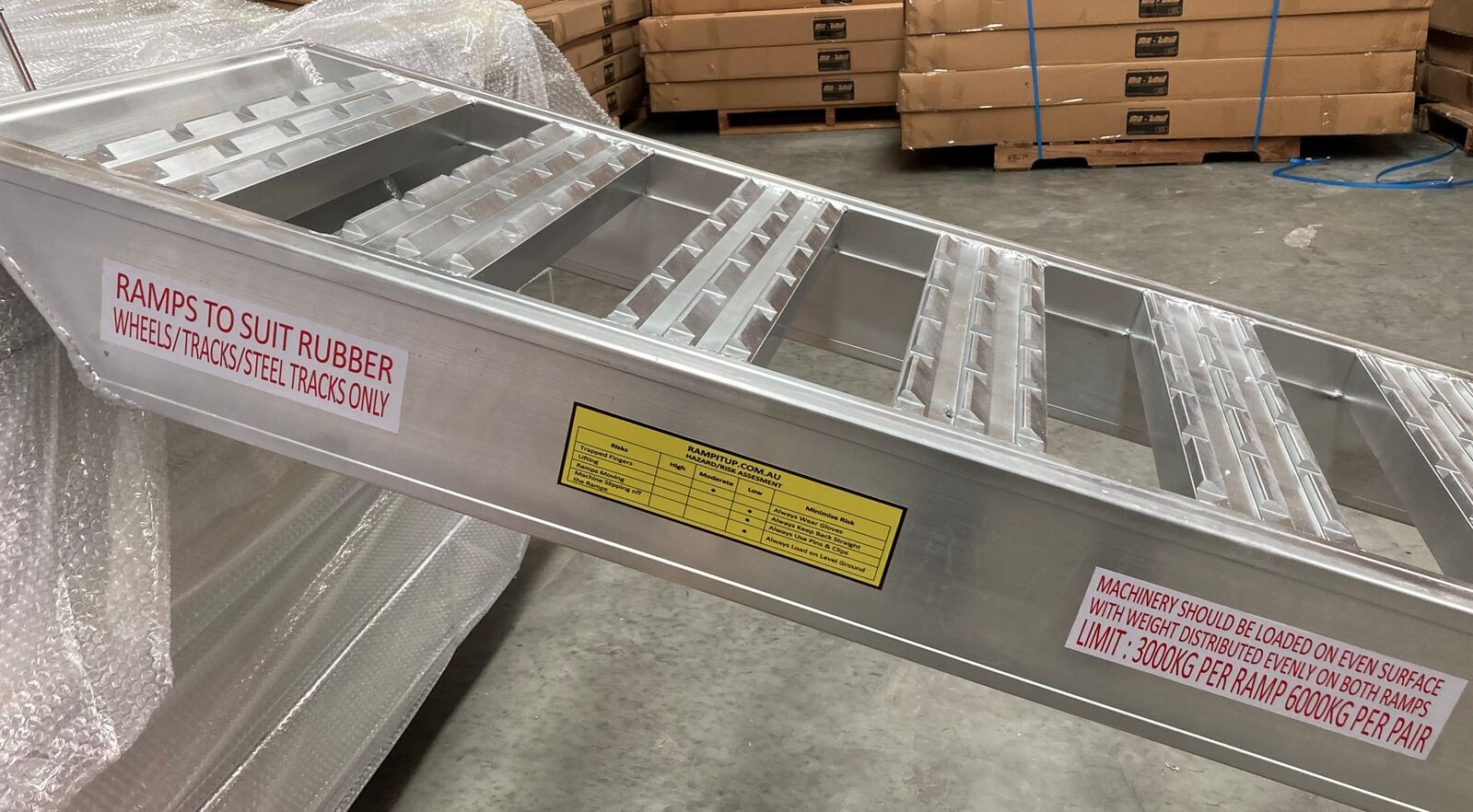

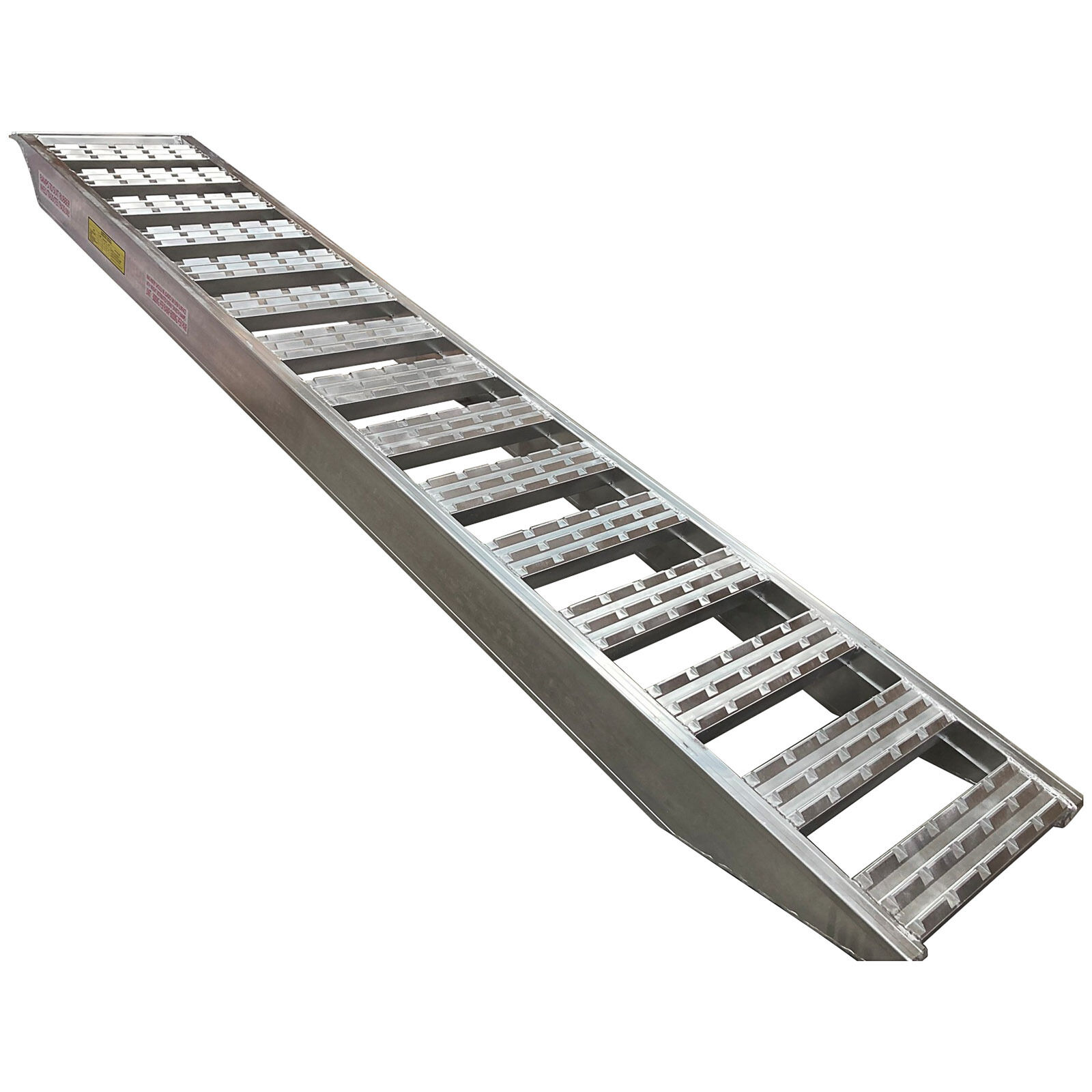

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.
  • These ramps are suited to rubber tracked machines only.

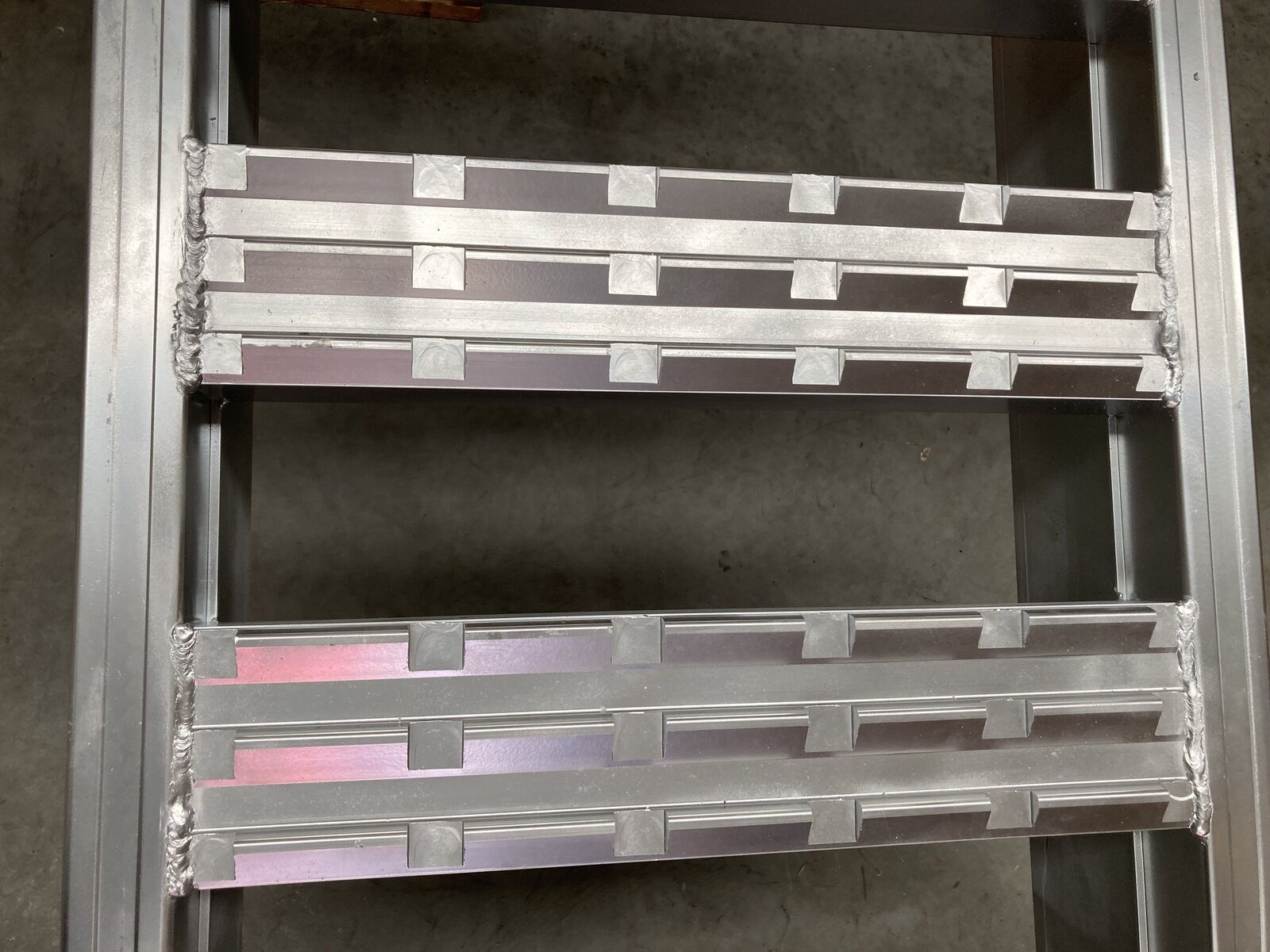

  • Serrated Bar

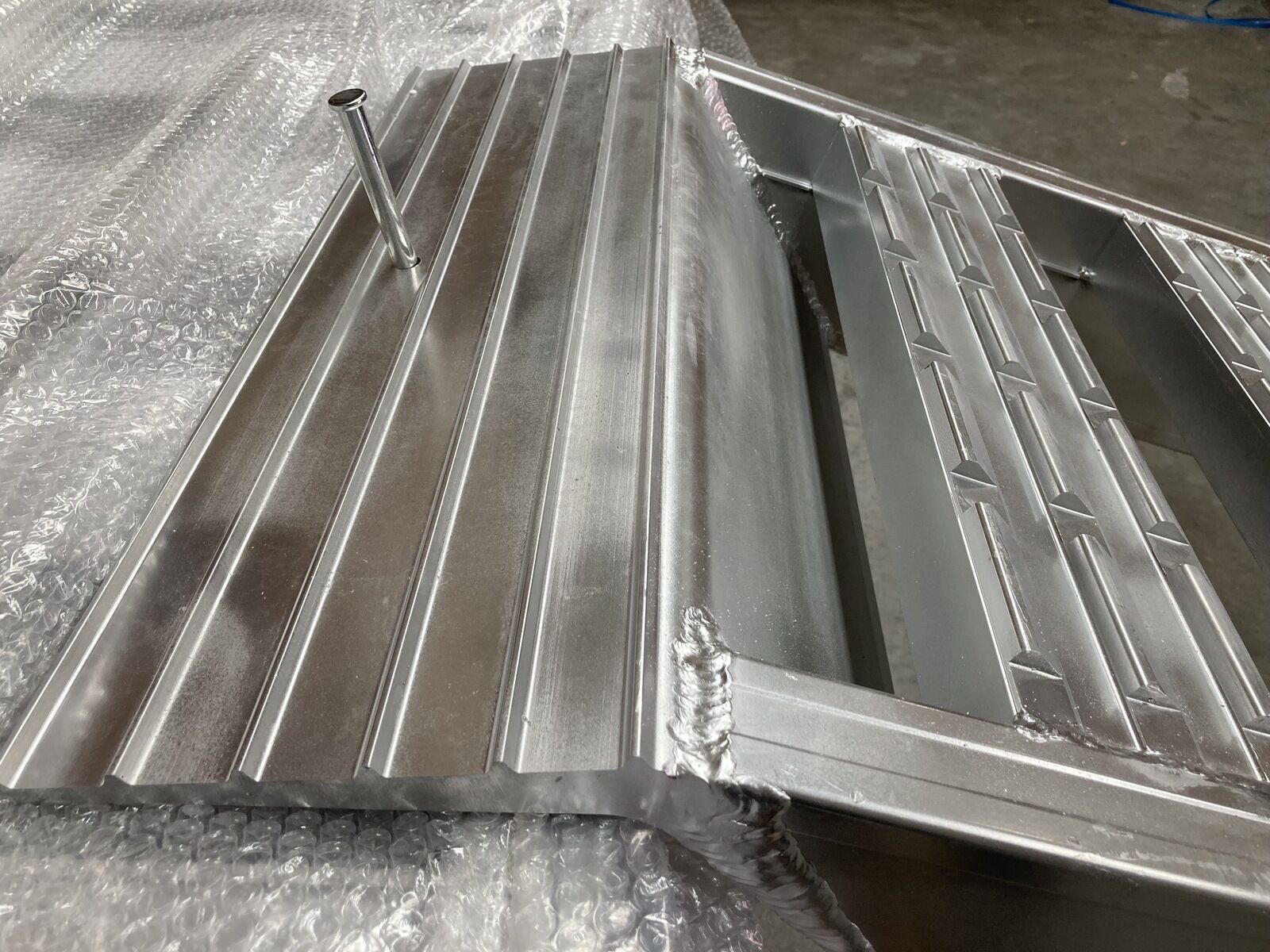

  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 3500
Inner Width (mm) :495
Outer Width (mm) :590
Height of Ramp Profile (mm):172
Rung Type: Flat Serrated
Rung Spacing (mm) : 100
Max Load Height (mm): 1200
Weight per Ramp (Kg): 62
Load Capacity per pair (Kg): 6000





SKUHDR.350.495.60S
BrandRamptec
Length3.5M
Tonne6T
Shipping Weight114.0000kg
Shipping Width0.590m
Shipping Height0.340m
Shipping Length3.500m
Shipping Cubic0.702100000m3
