SKU - HDR.3500.500.6.5

Features:

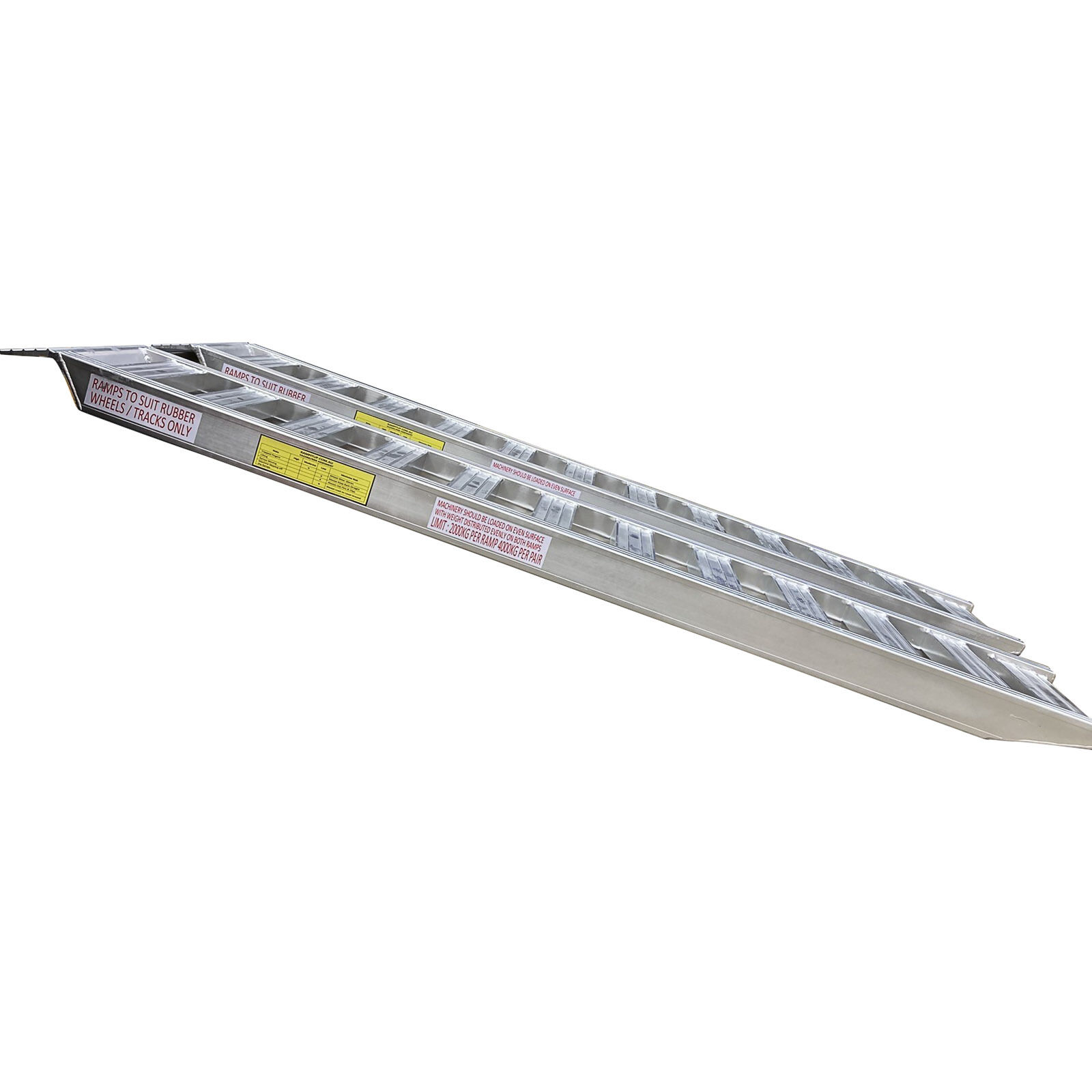

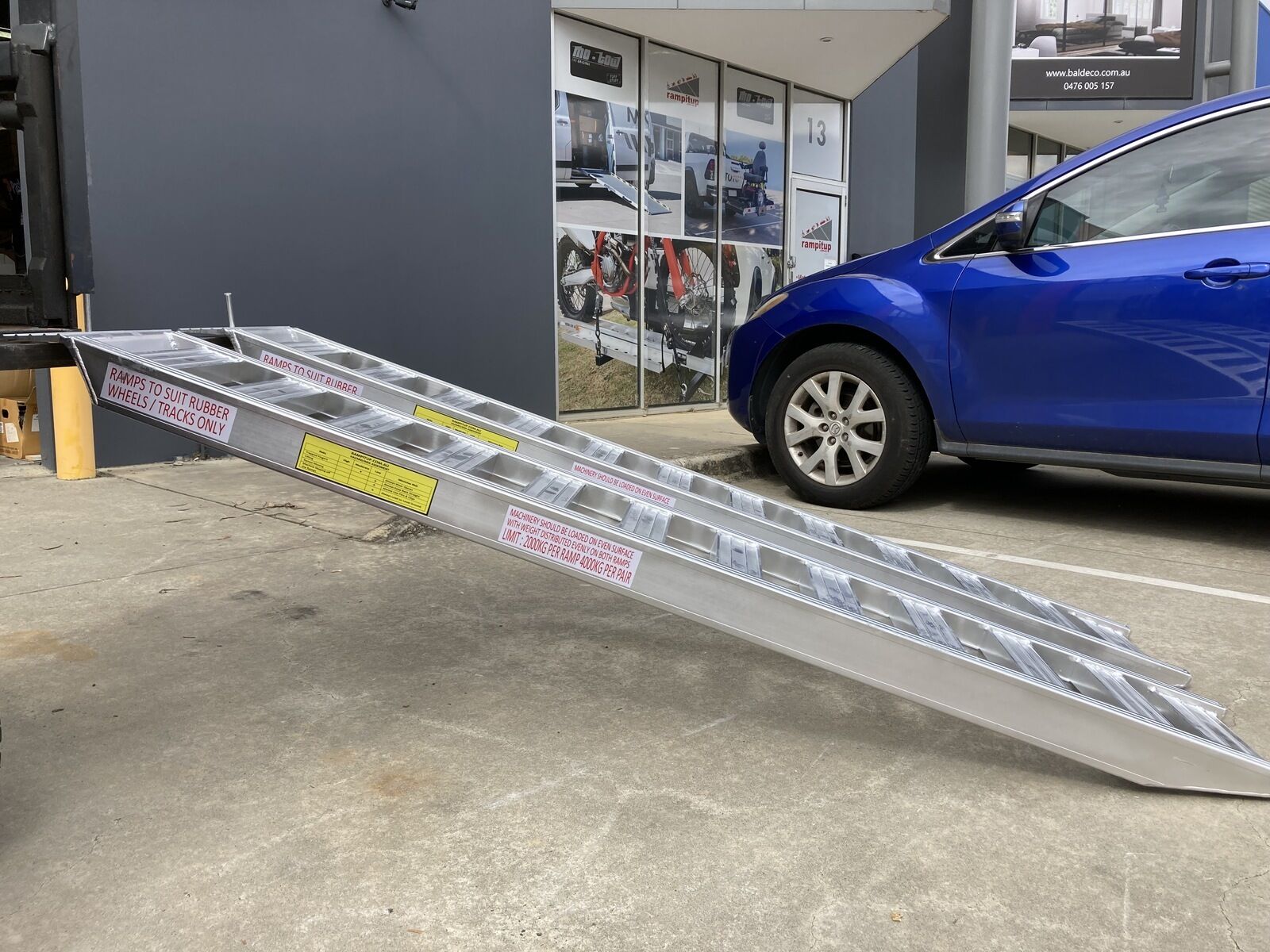

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.

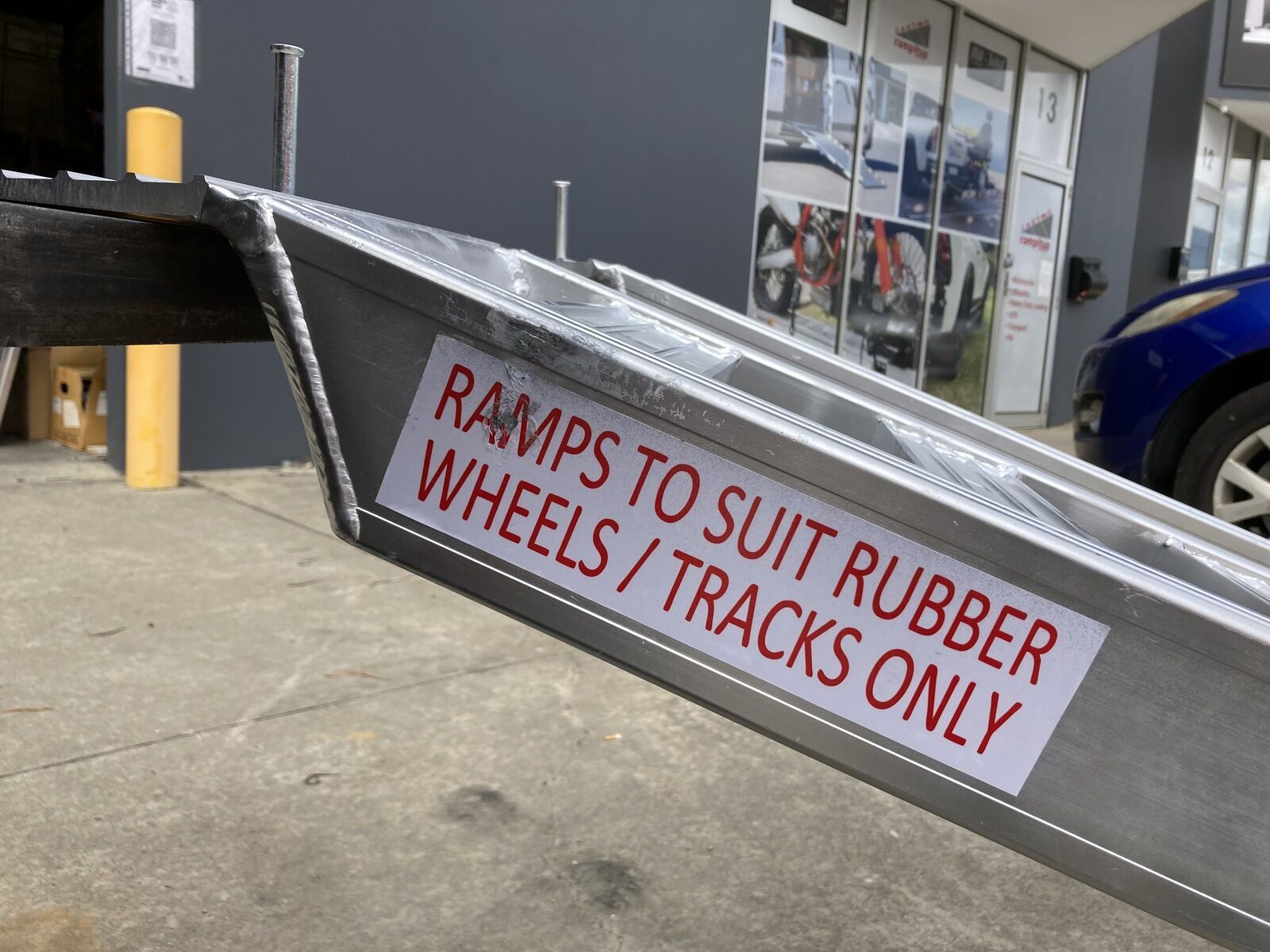

  • These ramps are suited to rubber tracked machines

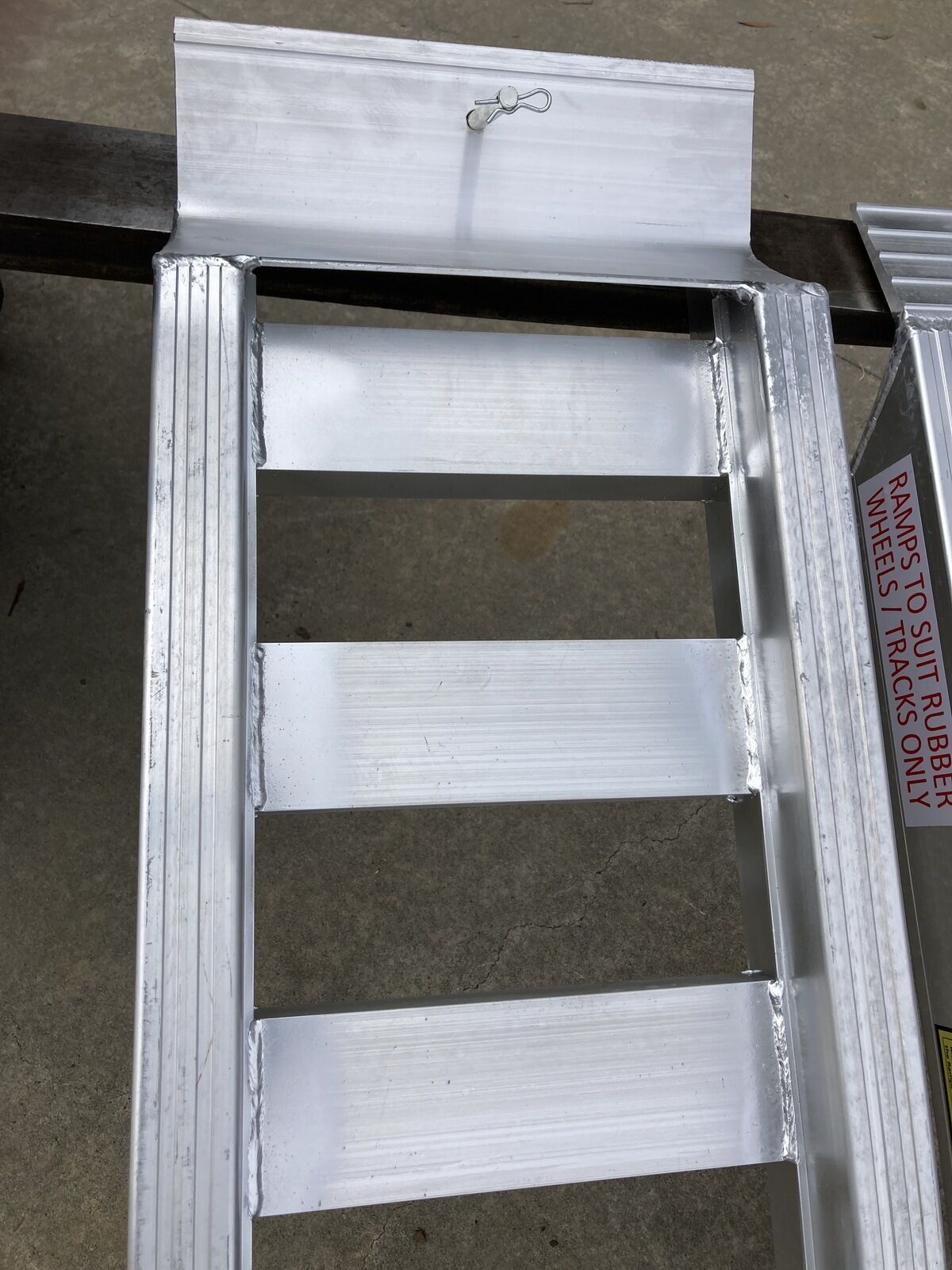

  • The connecting plate and pin ensure maximum stability and safety

Specifications:

Length (mm): 3500
Inner Width (mm) :405
Outer Width (mm) :500
Height of Ramp Profile (mm):172

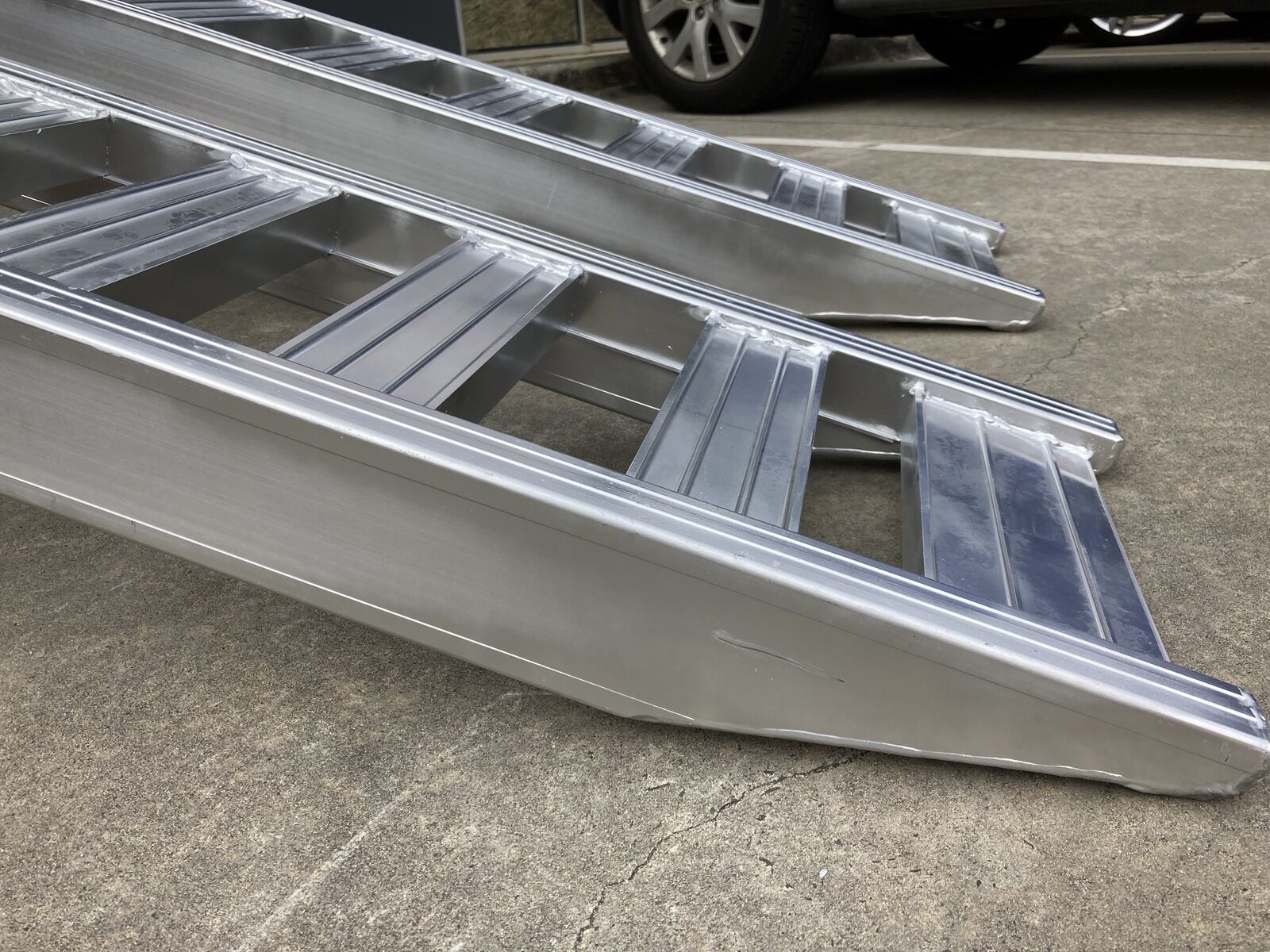

Rung Type: Flat
Rung Spacing (mm): 110
Max Load Height (mm): 810
Weight per Ramp (Kg): 58
Load Capacity per pair (Kg): 6500

SKUHDR.3500.500.6.5
BrandRamptec
Length3.5M
Tonne6.5T
Shipping Weight116.0000kg
Shipping Width0.500m
Shipping Height0.350m
Shipping Length3.500m
Shipping Cubic0.612500000m3
