Swing-away option available! Please call us to confirm your cars compatibility.

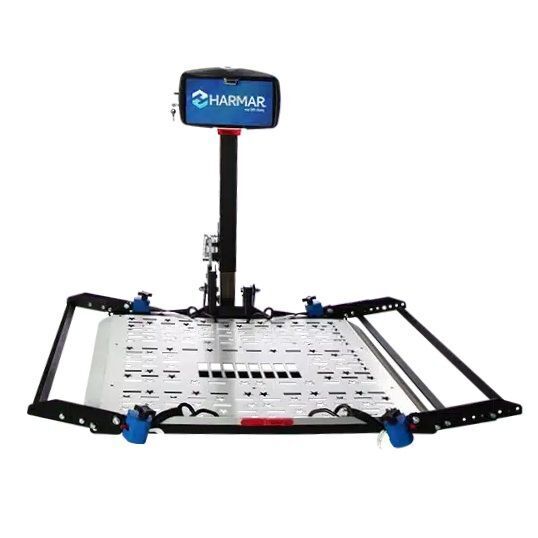

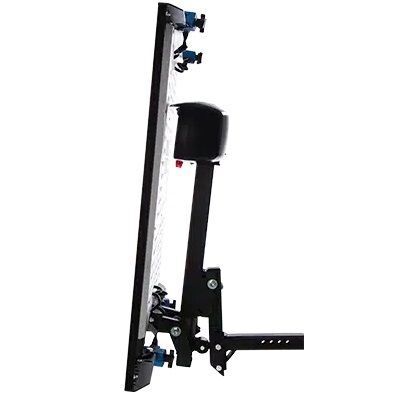

Designed to lift the widest variety of powerchairs and scooters, the AL301LX and AL301XLHD is a premier choice to help make your travels easier!.

The adjustable wheel cradles and self-tensioning Q’Straint retractors will keep your larger mobility device safe and secure as you hit the road.

The AL301XL and AL301XLHD are optimal for larger scooters and powerchairs
Compatible with minivans, SUVs, trucks, and vans. This lift series is complete with fully powered lifting and folding.

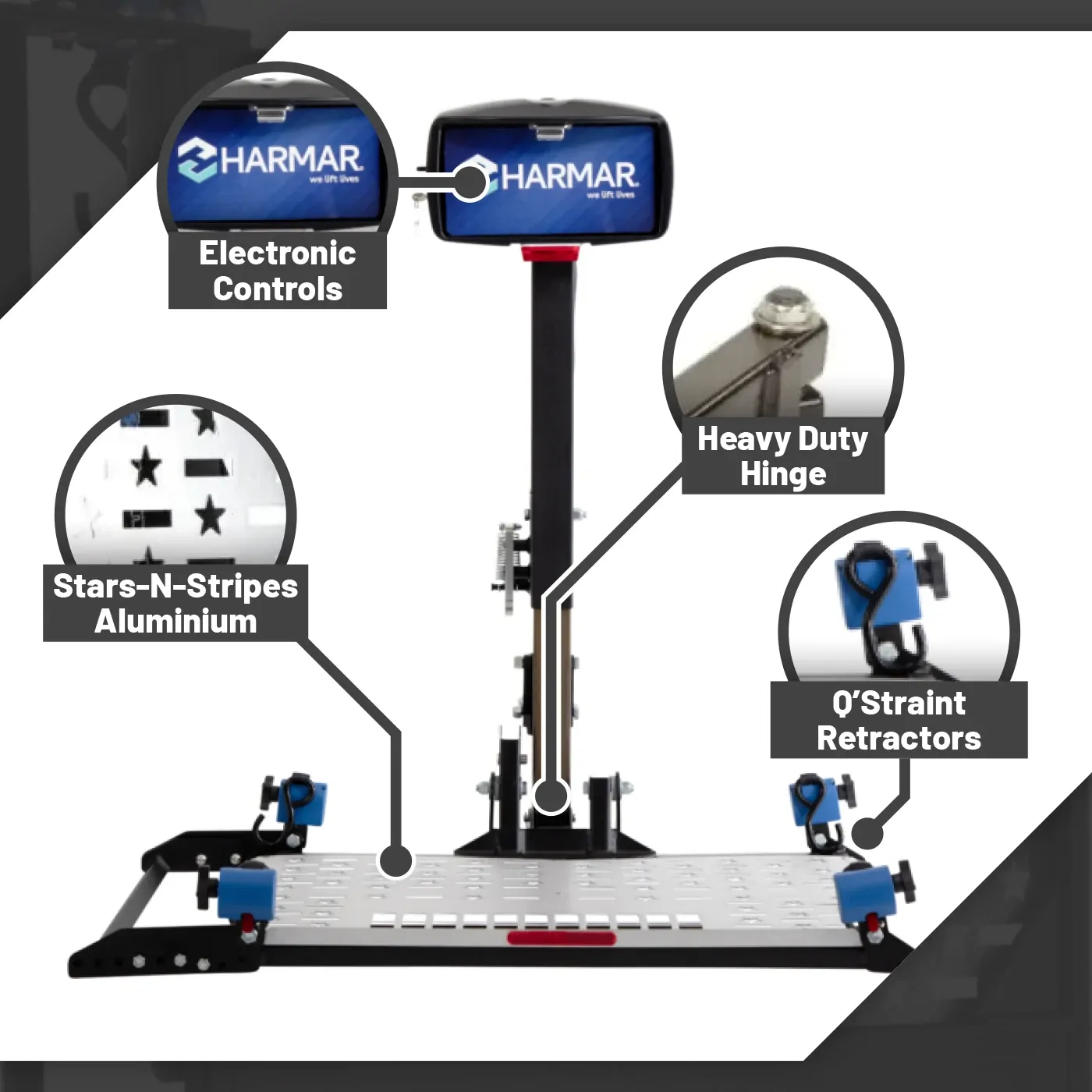

Features

 Carries larger power scooters or power chairs with no modifications required.
 Self-tensioning, Q'Straint retractors/front and rear cradles

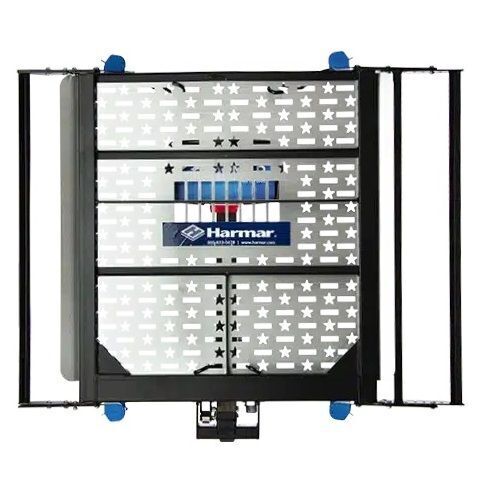

 Extra large 36"" x 39"" (91.5cm x 99cm) aluminum deck/adjustable cradles extend up to 53"" (134.5cm) .
 License plate mount included
 Swing-away option available (Not included)
 Class III or greater hitch required

Specifications:

Lifting Capacity: 400 lb (181.5KG)
Accommodates: Larger power wheelchairs and scooters
Installed Weight: 102 lb (47.5KG)
Platform Size : 91.5cm  x 99cm, adjustable cradle extends up to 134CM
Hitch Class: III or greater
Powered: Fully powered

Included

AL107 hitch post AL123HD class III heavy duty hitch adapter License plate mount
Securement: 4 self-tensioning
Q'Straint retractors: Front and rear wheel cradles

Available Option(s)

Cover
Swing-away

SKUAL301XLHD
BrandHarmar
Shipping Weight66.0000kg
Shipping Width1.270m
Shipping Height0.330m
Shipping Length1.160m
Shipping Cubic0.486156000m3
